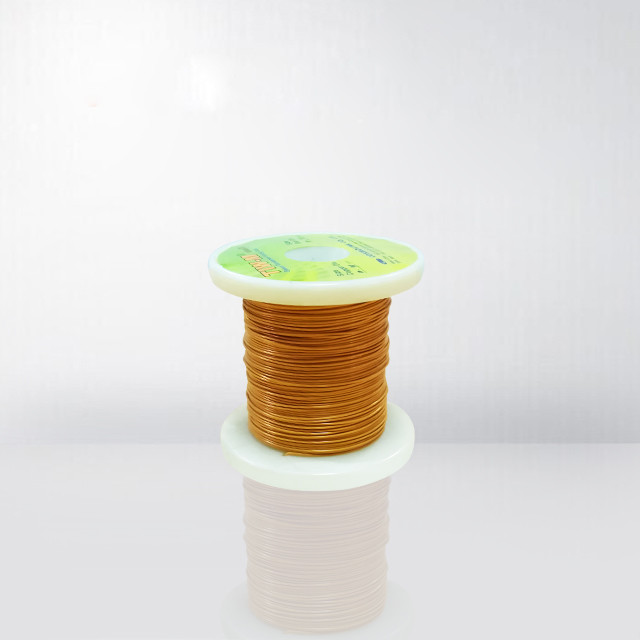

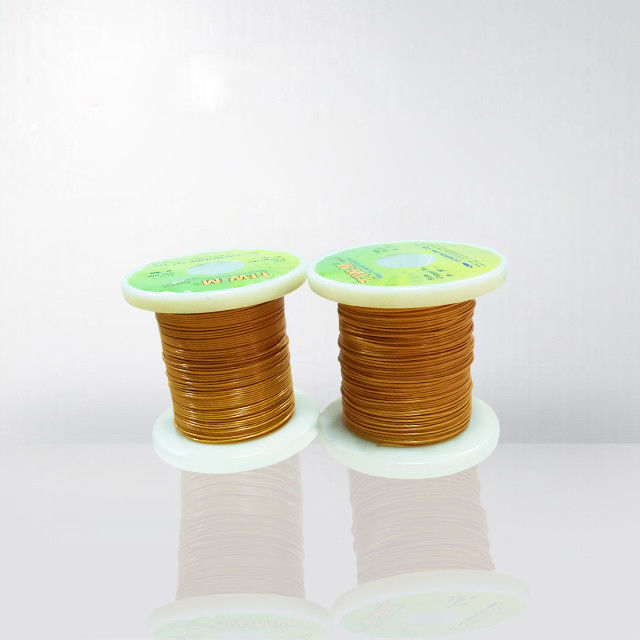

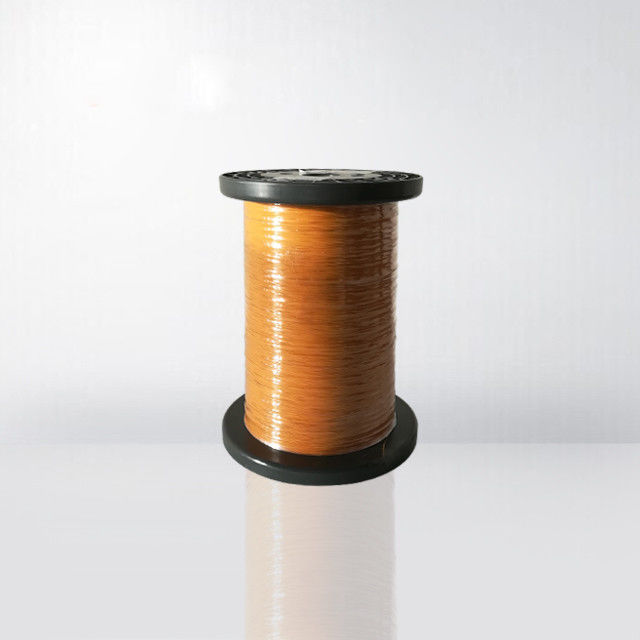

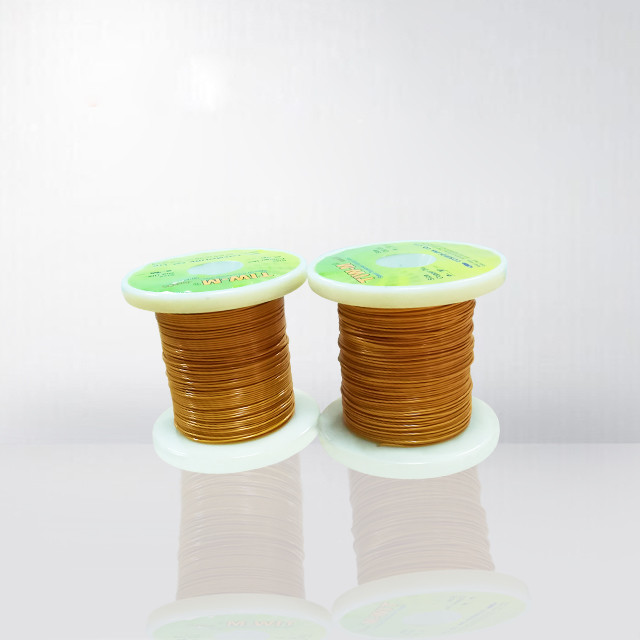

Copper Triple Insulated Wire 0.2 - 1.0mm Wire for Monitor / Inverter

Copper Triple Insulated Wire 0.2 - 1.0mm Wire for Monitor / Inverter

 TIW,triple insulated copper wire a unique product for small transformers. Three layer extruded coatings of high performance polymer resins gives excellent dielectric properties to this type of winding wires. Unlike enamelled wires, three layers of insulation are extruded over the copper conductor by an automated manufacturing process ensure perfect central position of conductor. The conventional enamelled wire winding coils requires insulation between the primary and secondary coils by means of barrier tape or inter layer tape, to isolate primary and secondary windings. Since three layers coating is having very high dielectric strength, it has very less creepage factor. This positive feature of TIW serves to downsize switching transformers, and promises high production efficiency and cost reduction. Depending on the design, the transformer size can be reduced up to 40% and weight up to 60% as compared to transformers made up of enamelled wires.
FEATURES AND BENEFITS

• LZ-TILW comprises of bound strands of UEW Litz wire covered with three insulation layers, which can enhance the resistance to high-frequency operations, which can completely isolate the primary from secondary of the transformer without interlayer tape.

• LZ-TILW can be applied to transformer without interlayer tape, reduces the size and material cost of the transformer.

• LZ-TILW can be soldered without stripping the insulation film.

• Rating voltage: 1,000Vrms.

• Wire size (Litz wire) from 0.20mm to 1.0mm

APPLICATION

• SMPS for printer, Monitor, Inverter,

• Battery charger of digital camera, Portable phone,

• AC adapter for personal computer, DVD.

SPECIFICATION
