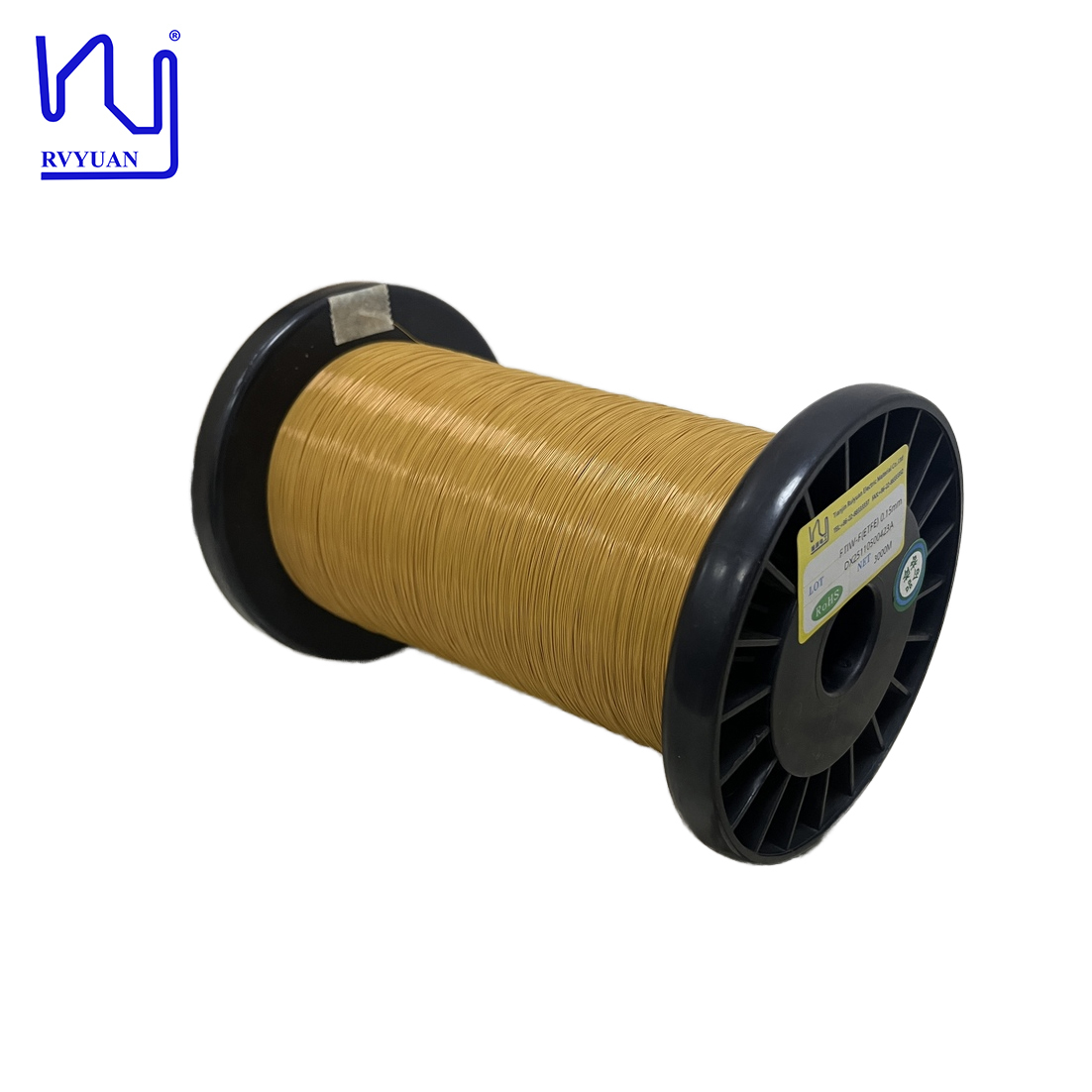

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.15mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer	Thermal Rating:	155
Single Wire Diameter:	0.15mm	Conductor Material:	Copper
Insualtion:	ETFE
Highlight:	0.15mm triple insulated wire , copper conductor transformer wire , TIW-F triple insulated wire

Product Description

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer

TIW-F 0.15mm Tripe Insulated Wire Copper Conductor For Transformer features excellent chemical and heat resistance. ETFE exhibits exceptional resistance to a wide range of chemicals, solvents, oils, and radiation, making it ideal for transformer manufacturing.

Excellent chemical and heat resistance properties
Ideal for transformer manufacturing applications
Small batch customization available (minimum 3,000 meters)
ETFE insulated litz wire options available
Custom size and strand configurations

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm(Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm(min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15%(min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm(max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm(min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault(max)	0 \| 0 \| 0
Resistance	1037Ω,km(max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV(min)	16.6 \| 17 \| 17.6
Solderability(±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1,000 meters. Our professional team provides technical support and custom specifications are available upon request.
