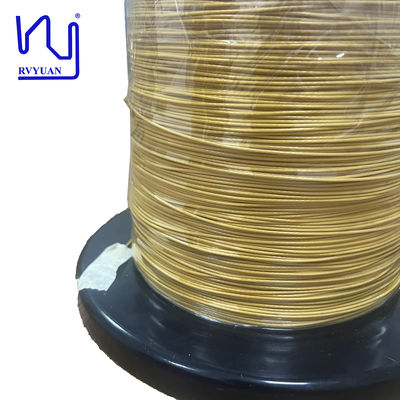

FTIW-F 0.24mmx7 Strands Extruded ETFE Insulation Litz Wire Copper Conductor

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.24mm

Minimum Order Quantity:	1000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	FTIW-F 0.24mmx7 Strands Extruded ETFE Insulation Litz Wire Copper Conductor	Thermal Rating:	155
Single Wire Diameter:	0.24mm	Conductor Material:	Copper
NO. Of Strands:	7	Insualtion:	ETFE
Highlight:	ETFE insulated Litz wire , 7 strands copper conductor wire , 0.24mm extruded Litz wire

Product Description

FTIW-F 0.24mmx7 Strands Extruded ETFE Insulation Litz Wire Copper Conductor

FIW-F 0.24mmx7 Strands Extruded ETFE Insulation Litz Wire Copper Conductor

Individual copper conductor diameter: 0.24mm
Enamel coating: Polyurethane
Thermal rating: 155
Number of strands: 7
MOQ: 1000m
Insulation: ETFE
Customization: support

Technical Specifications

Characteristics	Test Standard	Test result
Min. insulation thickness	Mm(min)0.11	0.120	0.127	0.120
Pitch	12±2	ok	ok	ok
Single wire Diameter	0.24±0.003MM	0.239	0.240	0.240
Overall dimension	/	1.03	1.05	1.05
Conductor Resistance	Max. 59.18Ω/KM	56.04	56.12	56.10
Breakdown voltage	Min. 6KV(min)	15.2	14.4	14.8
Solder ability	400℃ 3Secs	OK	OK	OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
