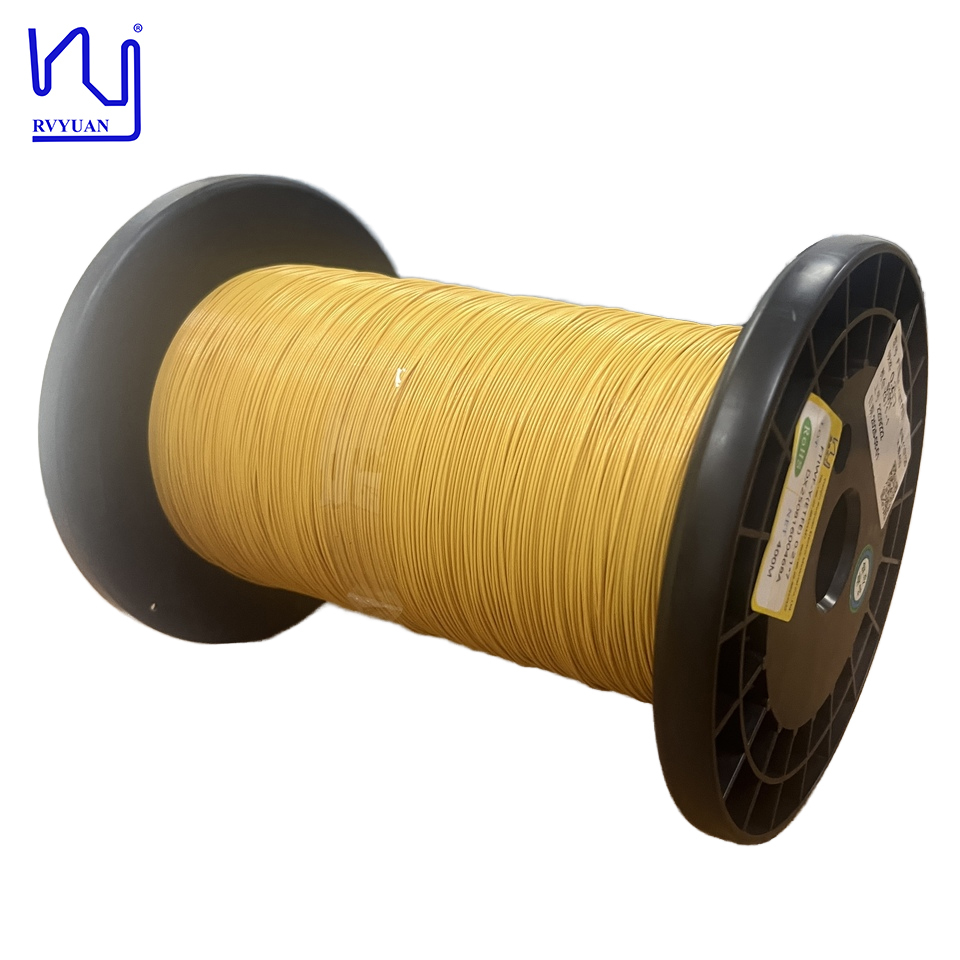

0.21mm 0.25mm 0.24mm 7 Strands ETFE Insulation Strand Copper Wire for Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.21mm

Minimum Order Quantity:	1000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	0.21mm 0.25mm 0.24mm 7 Strands ETFE Insulation Strand Copper Wire For Transformer	Thermal Rating:	155
Diameter:	0.21mm	Conductor Material:	Copper
Key Word:	0.21mm 0.25mm 0.24mm 7 Strands ETFE Insulation Strand Copper Wire For Transformer
Highlight:	ETFE insulated copper wire , 7 strand transformer wire , triple insulated copper wire

Product Description

0.21mm 0.25mm 0.24mm 7 Strands ETFE Insulation Strand Copper Wire for Transformer

ETFE offers numerous advantages, including excellent resistance to UV radiation, low friction, and a wide temperature range, making it suitable for a variety of industrial applications. Its durability and chemical resistance further enhance its appeal in harsh environments.

Product Features

Available in 0.21mm, 0.25mm, and 0.24mm diameters
7-strand construction for enhanced flexibility
ETFE insulation for superior performance
Ideal for transformer applications
Customization options available
Minimum Order Quantity: 1000m

Technical Specifications

Characteristics	Test Standard	Test result
Conductor Diameter	0.21±0.003MM	0.208	0.209	0.209
Min. insulation thickness	/	0.004	0.004	0.005
Single wire Diameter	/	0.212	0.213	0.214
Overall dimension	/	0.870	0.880	0.880
Conductor Resistance	Max. 73.93Ω/KM	74.52	75.02	74.83
Breakdown voltage	Min. 6KVA	14.5	13.82	14.6
Elongation	MIN:15%	19.4-22.9%
Solder ability	400℃ 3Secs	OK	OK	OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
