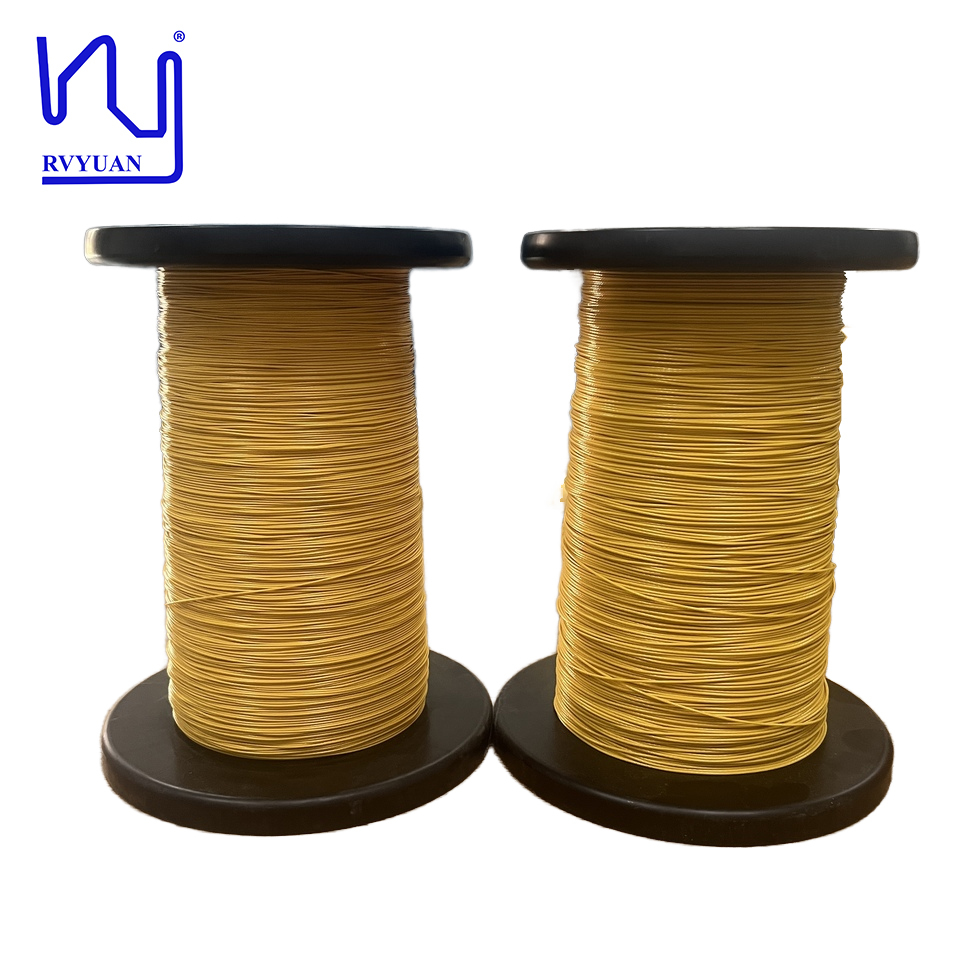

Custom FTIW 0.21mm*7 ETFE Insulation Teflon Strand Litz Wire for Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.21mm

Minimum Order Quantity:	1000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	Custom FTIW 0.21mm*7 ETFE Insulation Teflon Strand Litz Wire For Transformer	Thermal Rating:	155
Diameter:	0.21mm	Conductor Material:	Copper
Key Word:	Custom FTIW 0.21mm*7 ETFE Insulation Teflon Strand Litz Wire For Transformer
Highlight:	ETFE insulated litz wire , Teflon strand transformer wire , 0.21mm triple insulated wire

Product Description

Custom FTIW 0.21mm*7 ETFE Insulation Teflon Strand Litz Wire for Transformer

In addition to its high-voltage capabilities, Litz wire's twisted structure allows for better current distribution, minimizes electromagnetic interference, and improves overall efficiency. Litz wire's light weight and strong insulation properties make it an ideal choice for applications where space and weight are critical.

Technical Specifications

Characteristics	Test Standard	Test result
Conductor Diameter	0.21±0.003MM	0.208	0.209	0.209
Min. insulation thickness	/	0.004	0.004	0.005
Single wire Diameter	/	0.212	0.213	0.214
Overall dimension	/	0.870	0.880	0.880
Conductor Resistance	Max. 73.93Ω/KM	74.52	75.02	74.83
Breakdown voltage	Min. 6KVA	14.5	13.82	14.6
Elongation	MIN:15%	19.4-22.9%
Solder ability	400℃ 3Secs	OK	OK	OK
Conclusion	Qualified
