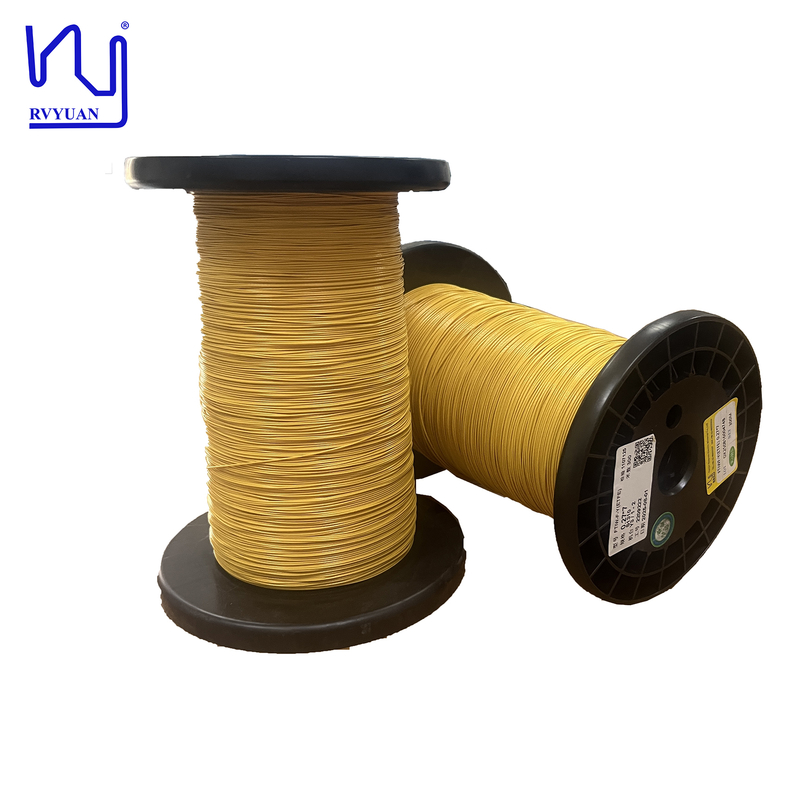

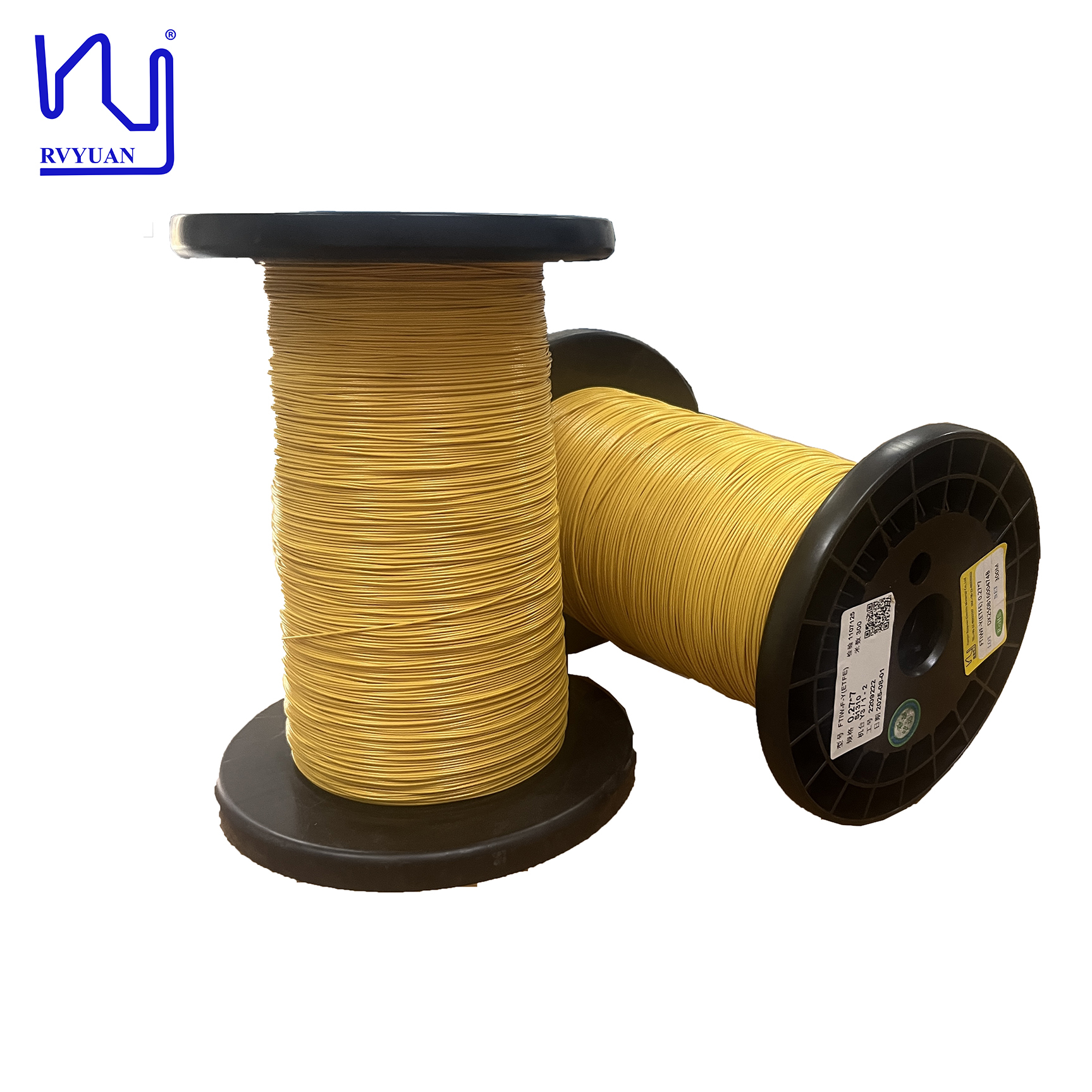

Custom FTIW 0.21mm*7 155°C Polytetrafluoroethylene Membrane ETFE Teflon Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.21mm

Minimum Order Quantity:	1000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	Custom FTIW 0.21mm*7 155°C Polytetrafluoroethylene Membrane ETFE Teflon Litz Wire	Thermal Rating:	155
Diameter:	0.21mm	Conductor Material:	Copper
Key Word:	Custom FTIW 0.21mm*7 155°C Polytetrafluoroethylene Membrane ETFE Teflon Litz Wire
Highlight:	ETFE Teflon Litz wire , Polytetrafluoroethylene membrane wire , Triple insulated Teflon wire

Product Description

Custom FTIW 0.21mm*7 155°C Polytetrafluoroethylene Membrane ETFE Teflon Litz Wire

Product Description

Custom FTIW 0.21mm*7 155°C Polytetrafluoroethylene Membrane ETFE Teflon Litz Wire. One of ETFE's key advantages is its high dielectric strength, enabling the insulation to withstand a breakdown voltage of up to 14,000V. This makes extruded ETFE stranded wire particularly suitable for high-voltage transformers and other critical electrical equipment, ensuring reliable performance and safety.

Technical Specifications

Characteristics	Test Standard	Test result
Conductor Diameter	0.21±0.003MM	0.208 0.209 0.209
Min. insulation thickness	/	0.004 0.004 0.005
Single wire Diameter	/	0.212 0.213 0.214
Overall dimension	/	0.870 0.880 0.880
Conductor Resistance	Max. 73.93Ω/KM	74.52 75.02 74.83
Breakdown voltage	Min. 6KVA	14.5 13.82 14.6
Elongation	MIN:15%	19.4-22.9%
Solder ability	400℃ 3Secs	OK OK OK
Conclusion	Qualified
