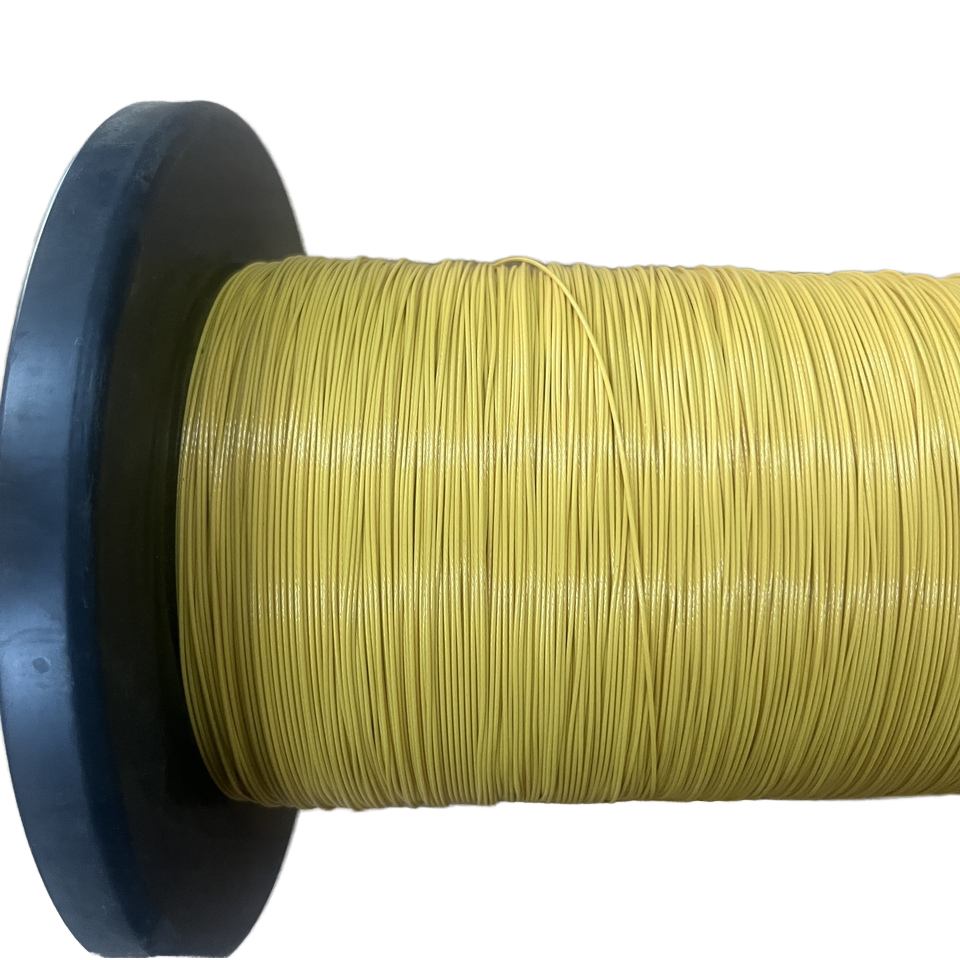

ETFE /FEP Insulation Litz Wire 0.21mmx7 Strands

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.21mm

Minimum Order Quantity:	1000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	ETFE /FEP Insulation Litz Wire 0.21mmx7 Strands	Thermal Rating:	155
Diameter:	0.21mm	Conductor Material:	Copper
Key Word:	ETFE /FEP Insulation Litz Wire 0.21mmx7 Strands
Highlight:	ETFE FEP insulated Litz wire , 0.21mm 7 strand Litz wire , triple insulated wire with warranty

Product Description

ETFE /FEP Insulation Litz Wire 0.21mmx7 Strands

The wires are insulated with ETFE (ethylene tetrafluoroethylene), a high-performance polymer renowned for its exceptional heat and chemical resistance. The ETFE insulation is applied using an extrusion process, ensuring a uniform and durable coating, providing superior protection against environmental factors such as moisture, chemicals, and extreme temperatures.

Technical Specifications

Characteristics	Test Standard	Test result
Conductor Diameter	0.21±0.003MM	0.208	0.209	0.209
Min. insulation thickness	/	0.004	0.004	0.005
Single wire Diameter	/	0.212	0.213	0.214
Overall dimension	/	0.870	0.880	0.880
Conductor Resistance	Max. 73.93Ω/KM	74.52	75.02	74.83
Breakdown voltage	Min. 6KVA	14.5	13.82	14.6
Elongation	MIN:15%	19.4-22.9%
Solder ability	400℃ 3Secs	OK	OK	OK
Conclusion	Qualified
