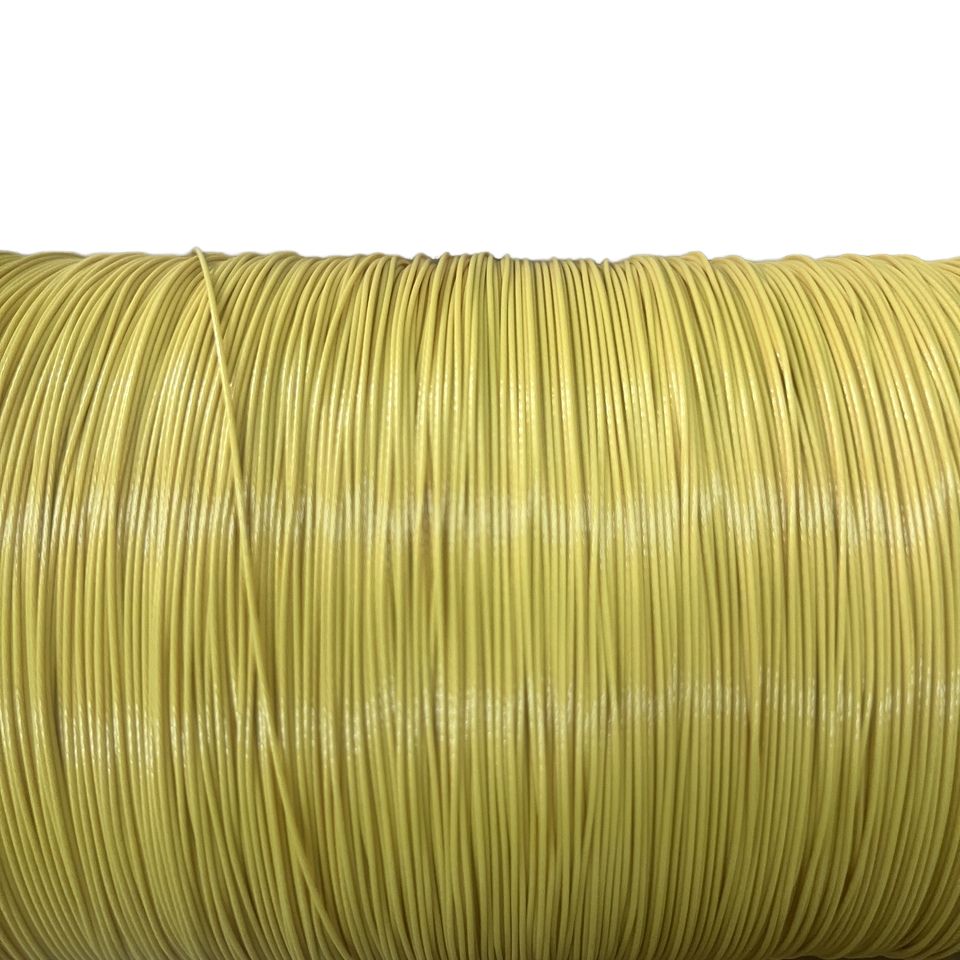

Extruded ETFE Insulation Litz Wire 0.21mmx7 Strands TIW Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.25mm

Minimum Order Quantity:	1000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	Extruded ETFE Insulation Litz Wire 0.21mmx7 Strands TIW Wire	Thermal Rating:	155
Diameter:	0.21mm	Conductor Material:	Copper
Key Word:	Extruded ETFE Insulation Litz Wire 0.21mmx7 Strands TIW Wire
Highlight:	ETFE insulated Litz wire , 0.21mm 7-strand TIW wire , extruded triple insulated wire

Product Description

Extruded ETFE Insulation Litz Wire 0.21mmx7 Strands TIW Wire

Extruded ETFE litz wire is a specialized cabling solution designed for high-performance applications, particularly those in high-voltage environments. This litz wire has an internal single-wire diameter of 0.21 mm and made of 6 strands twisted together. This construction enhances flexibility and reduces skin-effect losses, making it ideal for high-frequency applications.

Technical Specifications

Characteristics	Test Standard	Test result
Conductor Diameter	0.21±0.003MM	0.208	0.209	0.209
Min. insulation thickness	/	0.004	0.004	0.005
Single wire Diameter	/	0.212	0.213	0.214
Overall dimension	/	0.870	0.880	0.880
Conductor Resistance	Max. 73.93Ω/KM	74.52	75.02	74.83
Breakdown voltage	Min. 6KVA	14.5	13.82	14.6
Elongation	MIN:15%	19.4-22.9%
Solder ability	400℃ 3Secs	OK	OK	OK
Conclusion	Qualified
