200ºC 0.25mm FEP insulation Copper Insulated Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.25mm

Minimum Order Quantity:	1000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	200ºC 0.25mm FEP Insulation Copper Insulated Wire	Thermal Rating:	200
Diameter:	0.25mm	Conductor Material:	Copper
Key Word:	200ºC 0.25mm FEP Insulation Copper Insulated Wire
Highlight:	200ºC FEP insulated copper wire , 0.25mm FEP insulation wire , triple insulated copper wire

Product Description

200ºC 0.25mm FEP insulation Copper Insulated Wire

Product Specifications

Attribute	Value
Product Name	200ºC 0.25mm FEP insulation Copper Insulated Wire
Thermal rating	200
Diameter	0.25mm
Conductor material	Copper

Product Description

200ºC 0.25mm FEP insulation Copper Insulated Wire

With the high-temperature and high-voltage resistance, exceptional chemical stability, and non-magnetic properties, this FEP wire excels in a wide range of demanding applications. Whether you're in the electronics, chemical processing, or telecommunications industries, the FEP wire delivers unmatched performance and reliability.

Technical Specifications

Characteristics	Test Standard	Test result
Conductor diameter	0.25±0.008mm	0.253 \| 0.252 \| 0.252 \| 0.253 \| 0.253
Overall dimension	1.45±0.05mm	1.441 \| 1.420 \| 1.419 \| 1.444 \| 1.425
Elongation	Min. 15%	18.2 \| 18.3 \| 18.3 \| 17.9 \| 18.5
Resistance	382.5Ω/KM(Max)at 20ºC	331.8 \| 332.2 \| 331.9 \| 331.85 \| 331.89
Breakdown voltage	6KV	√ \| √ \| √ \| √ \| √
Heat shock	240℃ 30 minutes, no crack	√ \| √ \| √ \| √ \| √

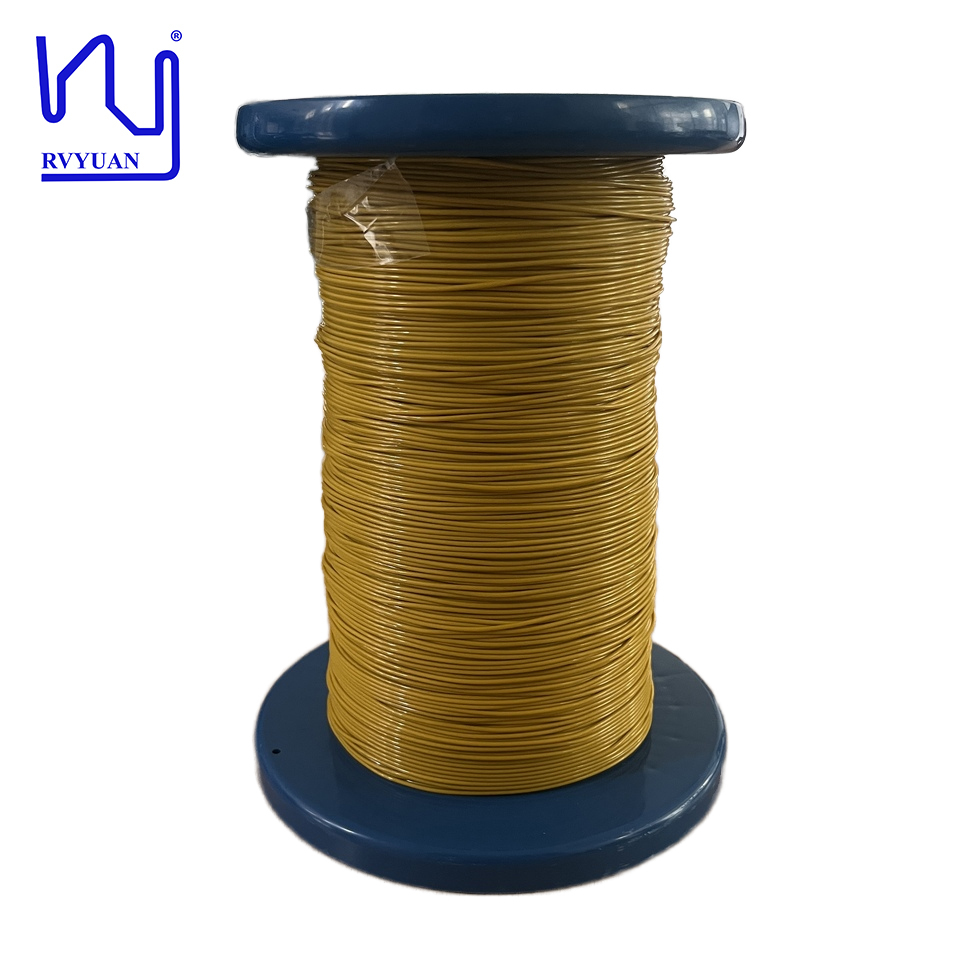

200ºC 0.25mm FEP insulation Copper Insulated Wire product photo
