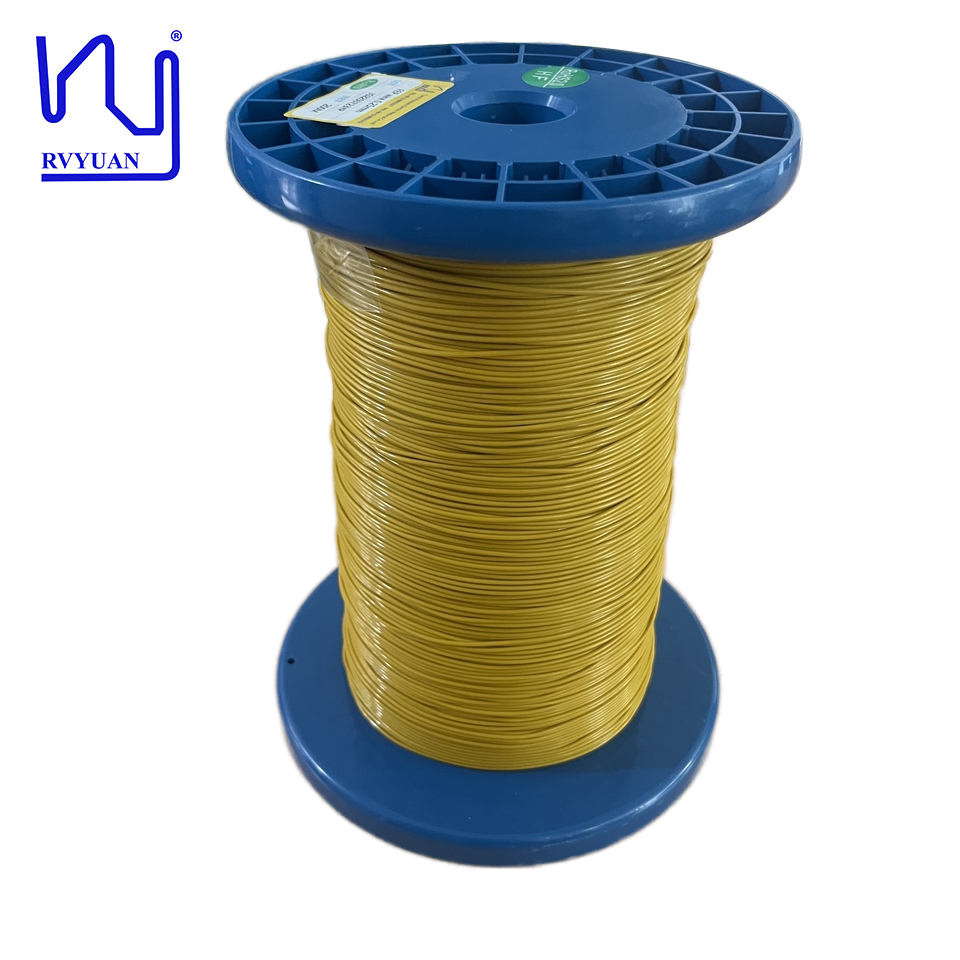

| Product Name: | High Temperature 200ºC 0.25mm FEP Insulation Tinned Copper Insulated Wire | Thermal Rating: | 200 |
|---|---|---|---|
| Diameter: | 0.25mm | Conductor Material: | Copper |
| Key Word: | High Temperature 200ºC 0.25mm FEP Insulation Tinned Copper Insulated Wire | ||
| Highlight: | High temperature FEP insulated wire,Tinned copper triple insulated wire,200ºC heat resistant electrical wire |
||
| Attribute | Value |
|---|---|
| Product Name | High Temperature 200ºC 0.25mm FEP insulation Tinned Copper Insulated Wire |
| Thermal rating | 200 |
| Diameter | 0.25mm |
| Conductor material | Copper |
High Temperature 200ºC 0.25mm FEP insulation Tinned Copper Insulated Wire
The FEP wire's non-stick and abrasion-resistant properties further enhance its appeal as a material for wire and cable manufacturing. These properties not only help extend the wire's lifespan but also make it easier to handle and install. The wire's non-magnetic nature ensures it does not interfere with electromagnetic fields, making it ideal for communication lines and high-frequency electronic equipment. This characteristic is crucial in applications where signal integrity and clarity are paramount, ensuring data transmission.
| Characteristics | Test Standard | Test result |
|---|---|---|
| Conductor diameter | 0.25±0.008mm | 0.253 | 0.252 | 0.252 | 0.253 | 0.253 |
| Overall dimension | 1.45±0.05mm | 1.441 | 1.420 | 1.419 | 1.444 | 1.425 |
| Elongation | Min. 15% | 18.2 | 18.3 | 18.3 | 17.9 | 18.5 |
| Resistance | 382.5Ω/KM(Max)at 20ºC | 331.8 | 332.2 | 331.9 | 331.85 | 331.89 |
| Breakdown voltage | 6KV | √ | √ | √ | √ | √ |
| Heat shock | 240℃ 30 minutes, no crack | √ | √ | √ | √ | √ |
