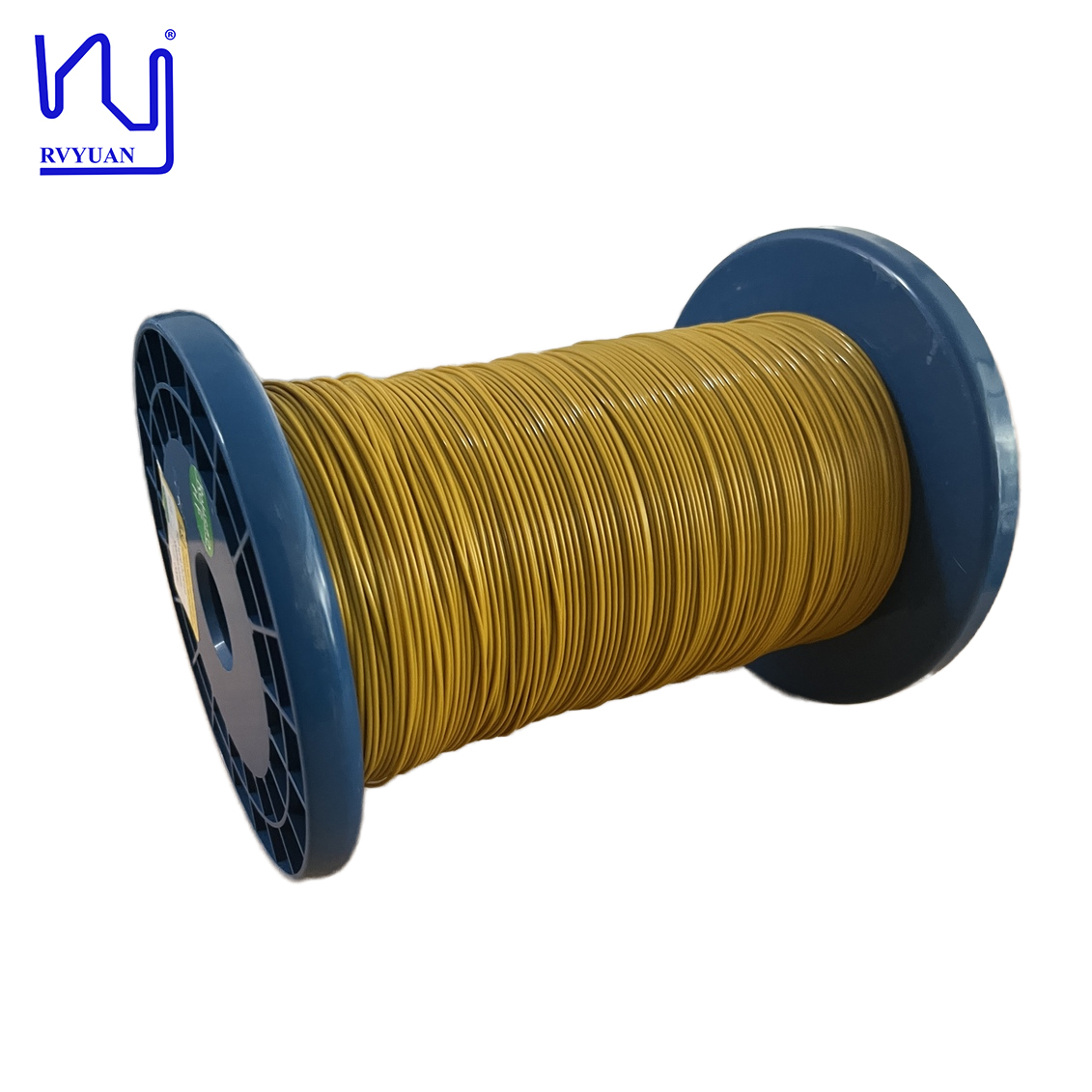

Product Name: | High Temperature FEP Wire 0.25mm Tinned Copper Conductor Cable | Thermal Rating: | 200 |
---|---|---|---|
Diameter: | 0.25mm | Conductor Material: | Copper |
Key Word: | High Temperature FEP Wire 0.25mm Tinned Copper Conductor Cable | ||
Highlight: | FEP wire high temperature,0.25mm tinned copper cable,triple insulated FEP wire |
Attribute | Value |
---|---|
Product Name | High Temperature FEP Wire 0.25mm Tinned Copper Conductor Cable |
Thermal rating | 200°C |
Diameter | 0.25mm |
Conductor material | Copper |
A key feature of our FEP wire is its exceptional high-temperature resistance. Capable of withstanding sustained operating temperatures up to 200°C, this wire is ideal for electronic devices operating in high-temperature environments. Applications such as heaters, dryers, and other thermal equipment can rely on the stability and performance of FEP wire, ensuring efficient operation even in extreme conditions. This high-temperature performance is a testament to the wire's superior design and material selection, making it a reliable choice for engineers and manufacturers.
Characteristics | Test Standard | Test result | ||||
---|---|---|---|---|---|---|
Conductor diameter | 0.25±0.008mm | 0.253 | 0.252 | 0.252 | 0.253 | 0.253 |
Overall dimension | 1.45±0.05mm | 1.441 | 1.420 | 1.419 | 1.444 | 1.425 |
Elongation | Min. 15% | 18.2 | 18.3 | 18.3 | 17.9 | 18.5 |
Resistance | 382.5Ω/KM(Max)at 20 ºC | 331.8 | 332.2 | 331.9 | 331.85 | 331.89 |
Breakdown voltage | 6KV | √ | √ | √ | √ | √ |
Heat shock | 240℃ 30 minutes, no crack | √ | √ | √ | √ | √ |
