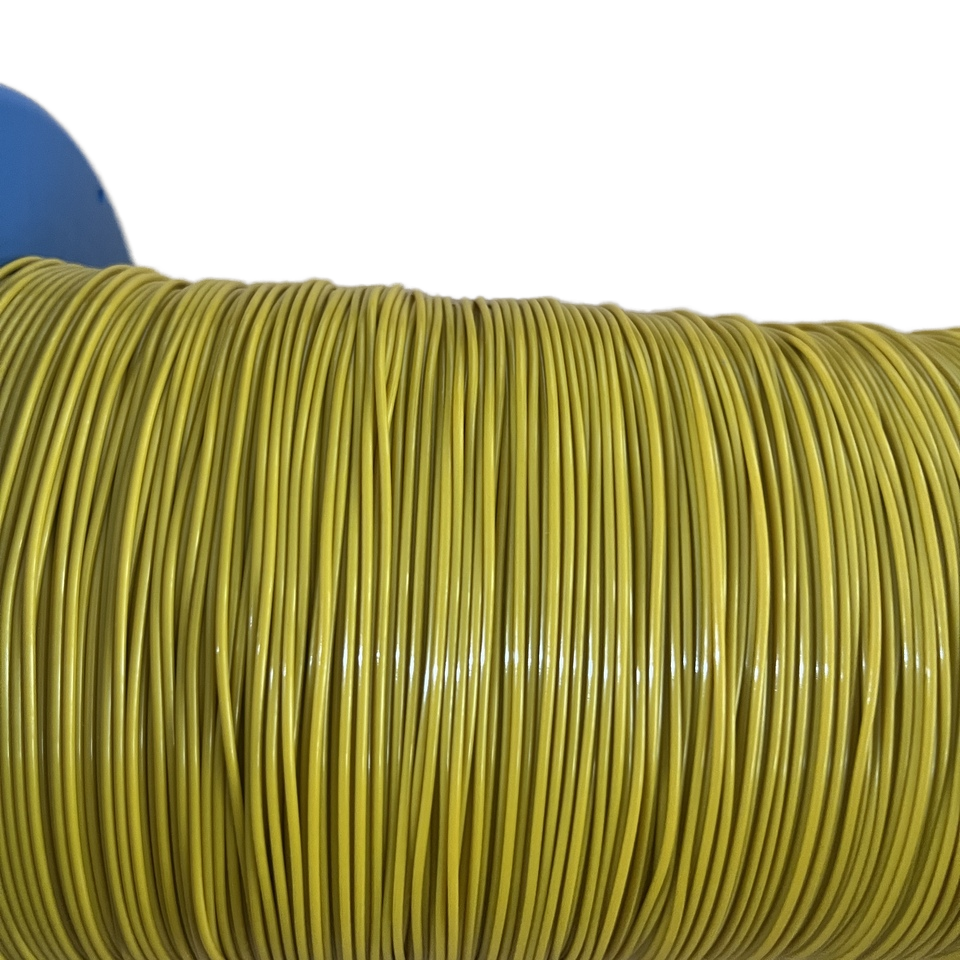

Class 200 FEP Wire 0.25mm Copper Conductor high temperature insulated wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.25mm

Minimum Order Quantity:	1000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	Class 200 FEP Wire 0.25mm Copper Conductor High Temperature Insulated Wire	Thermal Rating:	200
Diameter:	0.25mm	Conductor Material:	Copper
Key Word:	Class 200 FEP Wire 0.25mm Copper Conductor High Temperature Insulated Wire
Highlight:	Class 200 FEP insulated wire , 0.25mm copper conductor wire , high temperature FEP wire

Product Description

Class 200 FEP Wire 0.25mm Copper Conductor high temperature insulated wire

Product Specifications

Attribute	Value
Product Name	Class 200 FEP Wire 0.25mm Copper Conductor high temperature insulated wire
Thermal rating	200
Diameter	0.25mm
Conductor material	Copper

Performance Features

Excellent wear resistance, corrosion resistance, and moisture resistance
Operating temperature: 200ºC
Low friction
Flame retardant: Does not spread flames when ignited

Technical Specifications

Characteristics	Test Standard	Test result
Conductor diameter	0.25±0.008mm	0.253 \| 0.252 \| 0.252 \| 0.253 \| 0.253
Overall dimension	1.45±0.05mm	1.441 \| 1.420 \| 1.419 \| 1.444 \| 1.425
Elongation	Min. 15%	18.2 \| 18.3 \| 18.3 \| 17.9 \| 18.5
Resistance	382.5Ω/KM(Max)at 20ºC	331.8 \| 332.2 \| 331.9 \| 331.85 \| 331.89
Breakdown voltage	6KV	√ \| √ \| √ \| √ \| √
Heat shock	240℃ 30 minutes, no crack	√ \| √ \| √ \| √ \| √
