Name: 0.16mm-1.0mm Triple Insulated Wire Insulated Copper Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.16mm
Price: 24.06 USD
Availability: InStock

0.16mm-1.0mm Triple Insulated Wire Insulated Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.16mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	0.16mm-1.0mm Triple Insulated Wire Insulated Copper Wire	Thermal Rating:	130
Diameter:	0.16mm	Conductor Material:	Copper
Key Word:	0.16mm-1.0mm Triple Insulated Wire Insulated Copper Wire

Product Description

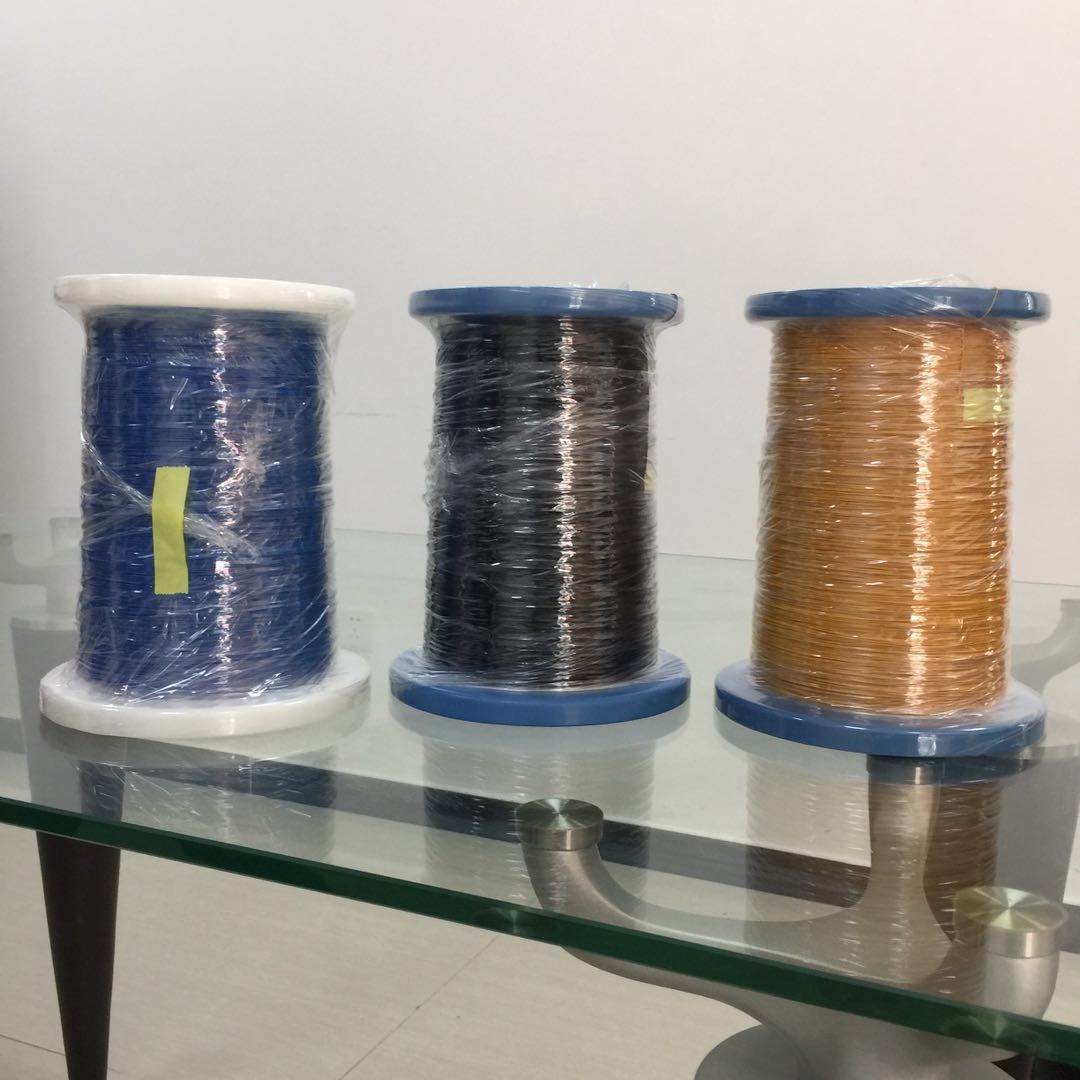

0.16mm-1.0mm Triple Insulated Wire Insulated Copper Wire

Ruiyuan's TIW wire offers standard packaging options of 1500m, 3000m and 6000m per roll, providing customers with flexibility and convenience. This standardized packaging is convenient for handling and storage, ensuring that you have enough wire to meet production needs. Our commitment to quality means that each roll of TIW wire is manufactured to the highest standards, ensuring consistency and reliability in a variety of applications. Whether you produce small transformers or large industrial equipment, our triple-insulated wire can meet your specific needs.

Characteristics	Test standard	conclusion
Package	Wether package condition is good(including carton, spool, PE film, air bubble film), whether carton's seal is complete	OK
Bare wire diameter	0.16±0.008mm	0.159-0.164
Overall diameter	0.36±0.020mm	0.359-0.362
Conductor resistance	Max. 950.1Ω/KM	898.3Ω/KM
Breakdown voltage of straight wire	The length of wire 305mm, wind on the copper bar, test condition 1mA/60s5.0KV	OK
Elongation	Min. 15%	17.2-18.5
Solerability	430±5℃ 1-2.5 secs	OK
