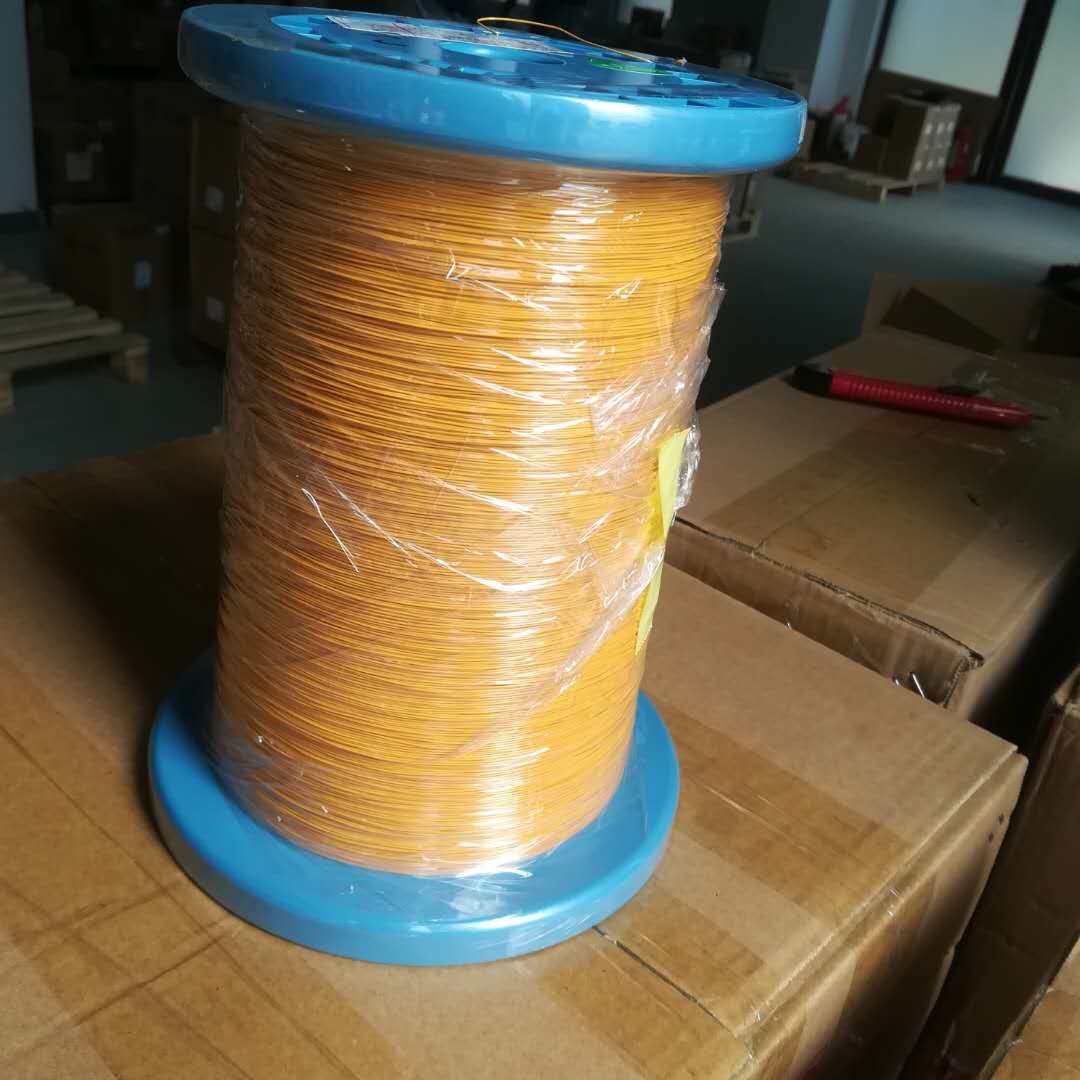

Name: TIW-B ISO/UL 0.15mm TIW Triple Insulated Wire For Transformer
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.15mm
Price: 24.06 USD
Availability: InStock

TIW-B ISO/UL 0.15mm TIW Triple Insulated Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.15mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7
Payment Terms:	T/T/Paypal
Supply Ability:	1Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	TIW-B ISO/UL 0.15mm TIW Triple Insulated Wire For Transformer	Thermal Rating:	130
Insulation Material:	PET+Nylon	Diameter:	0.15mm
Conductor Material:	Copper	Key Word:	TIW-B ISO/UL 0.15mm TIW Triple Insulated Wire For Transformer

Product Description

TIW-B ISO/UL 0.15mm TIW Triple Insulated Wire For Transformer

Triple insulated wire is specifically designed to withstand and safely handle high voltages. The multiple layers of insulation in triple insulated wire provide enhanced protection and insulation properties, making it suitable for use in high voltage applications.

The combination of the base insulation, reinforced insulation, and barrier insulation in triple insulated wire helps to prevent electrical leakage, reduce the risk of short circuits, and improve the overall safety and reliability of the wire. These layers of insulation are chosen for their superior dielectric strength and electrical resistance, allowing the wire to withstand high voltage levels without breakdown or failures.

Characteristics	Test Standard	Conclusion
Bare Wire Diameter	0.15±0.008MM	0.145-0.155
Overall Diameter	0.35±0.020MM	0.345-0.355
Conductor Resistance	879.3-1088.70Ω/KM	1043.99Ω/KM
Breakdown voltage	AC 6KV/60S no crack	OK
Elongation	MIN:15%	19.4-22.9%
Solder ability	420±10℃ 2-10Secs	OK
Adhesion	Pull and break at a constant speed, and the exposed copper of the wire should not exceed 3mm
Key word	TIW -B ISO/UL 0.15mm 0.2mm 0.3mm TIW wire ETFE/PET Triple Insulated Wire
