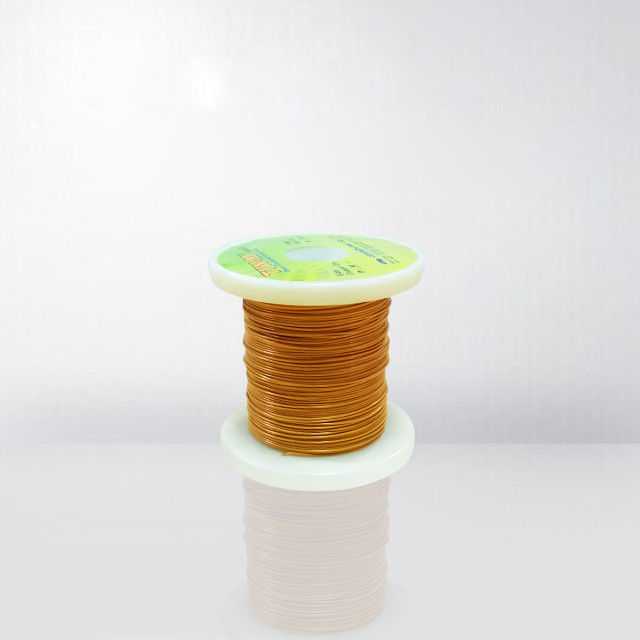

TIW-B/F 0.2MM-0.5mm Triple Insulated Copper Wire For Special Transformer

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.3mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Triple Insulated Wire TIW-B/F 0.2MM-0.5mm For Special Transformer	Thermal Rating:	130
Insulation Material:	PET	Diameter:	0.3mm
Conductor Material:	Copper	Key Word:	Triple Insulated Wire TIW-B/F 0.2MM-0.5mm For Special Transformer
Highlight:	0.2MM-0.5mm triple insulated copper wire , Special Transformer triple insulated copper wire , TIW-B/F triple insulated copper wire

Product Description

Triple Insulated Wire TIW-B/F 0.2MM-0.5mm for Special Transformer

We pride ourselves on our commitment to quality and customer satisfaction. Our triple-insulated and litz wires are manufactured to the highest quality control standards, ensuring that every reel meets our stringent performance standards. We firmly believe that our customers deserve the best and are committed to providing products that not only meet but exceed our customers' expectations. Our team is dedicated to providing you with the support you need, from product selection to technical support, ensuring you have a seamless experience from start to finish.

Characteristics	Test Standard	Conclusion
Overall Diameter	/MM(MAX)	0.302
Insualtion thickness	/MM(Min)	0.02
Tolerance	0.30±0.003mm	0.30
Pitch	S13±2	OK
Overall dimension	1.130MM(MAX)	1.130
Insulation thickness	0.12±0.02MM(Min)	0.12
Pinhole	0Max	0
Resistance	37.37Ω/KM(Max)	36.47
Breakdown voltage	6KV(Min)	13.66
Solder ability ±10℃	450 3Secs	OK
Key word	0.2mm 0.3mm 0.4mm TIW Wire Triple Insualted Litz Wire UL System Certificate
