Product Name: | Triple Insulated Litz Wire 1700 Strands Insulated Stranding Copper Wire | Thermal Rating: | 155 |
---|---|---|---|
Diameter: | 0.08mm | Conductor Material: | Copper |
Key Word: | Triple Insulated Litz Wire 1700 Strands Insulated Stranding Copper Wire | Strands: | 1700 |
Highlight: | Litz Triple Insulated Wire,Copper Triple Insulated Wire,1700 Strands Triple Insulated Wire |

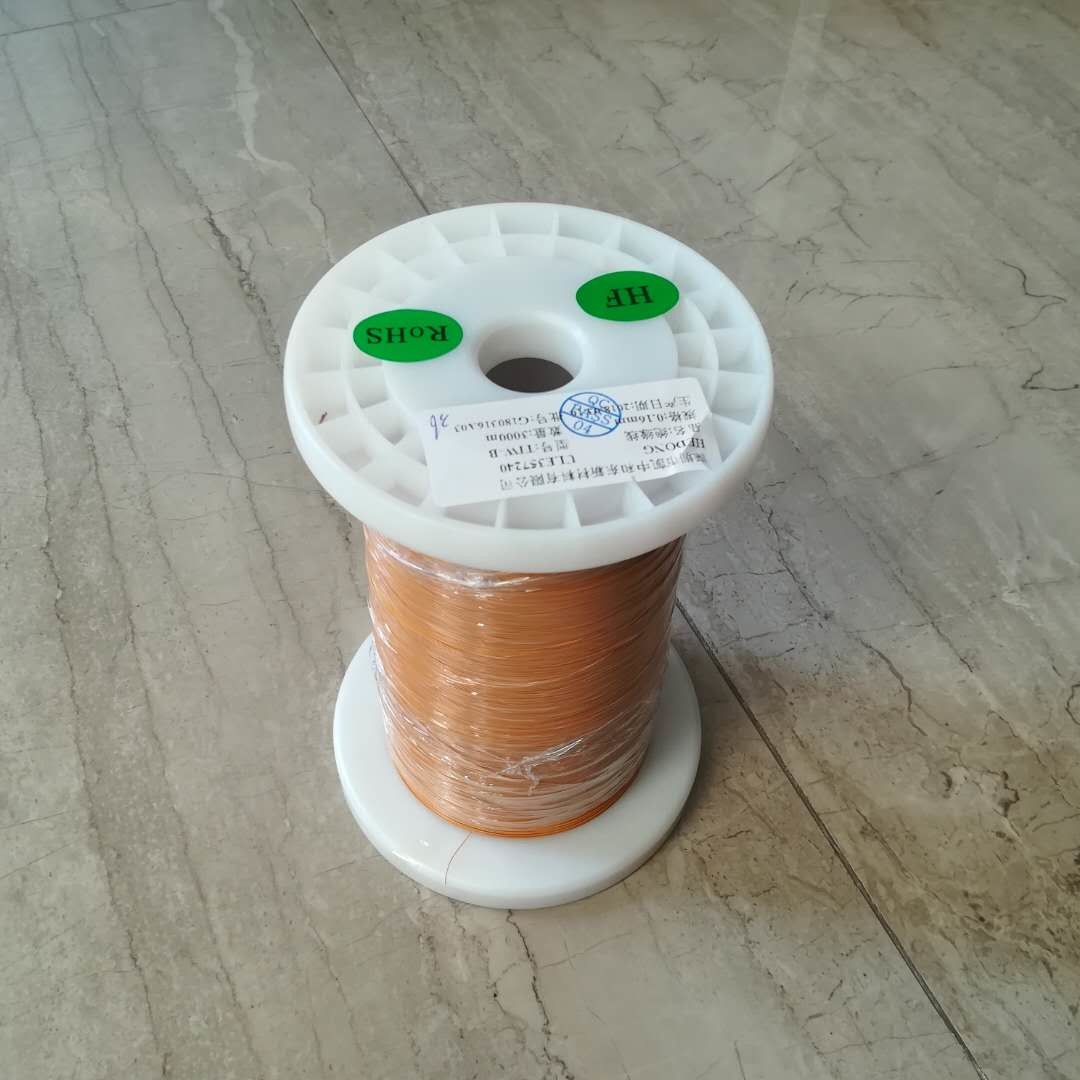

Triple Insulated Litz Wire 1700 Strands Insulated Stranding Copper Wire
Customization is at the heart of our service. We understand that different projects have unique needs, so we offer the option to customize the size and strand count of triple insulated litz wire to your specifications. Whether you require a specific wire gauge or strand configuration, our dedicated technical team is ready to assist you in creating the perfect solution for your project. With a minimum order of just 1000 meters, you can easily get the high-quality wire you need without the high inventory costs.
FTIW-F-Y 0.08*1700 | |||||
Specification (nominal diameter of conductor * number of strands) |
Single line [mm] | LITZ WIRE | |||
Conductor tolerance |
Min.paint film thickness |
Finished outside diameter |
molding |
Twist [MM] |
|
0.08*1700 |
0.08±0.003 |
0.003 |
0.086-0.097 |
0.08*68 | S1=45±3 |
0.08*68*5 | S2=45±3 | ||||
0.08*68*5*5 | S3=66±5 |
0.08*1700 Finished product line | |||||
Temperature resistance grade ℃ |
Straight weldability [s] (430℃±10℃) Max. |
resistance [Ω/m] (20℃) Max. |
Withstand voltage AC to stranded wire (Leakage current 5mA) Min. |
Thickness of single insulating layer(mm) |
Max.finished outside diameter[mm] |
155 |
6 |
2.29 |
6000 |
0.11±0.01 |
4.80 |
