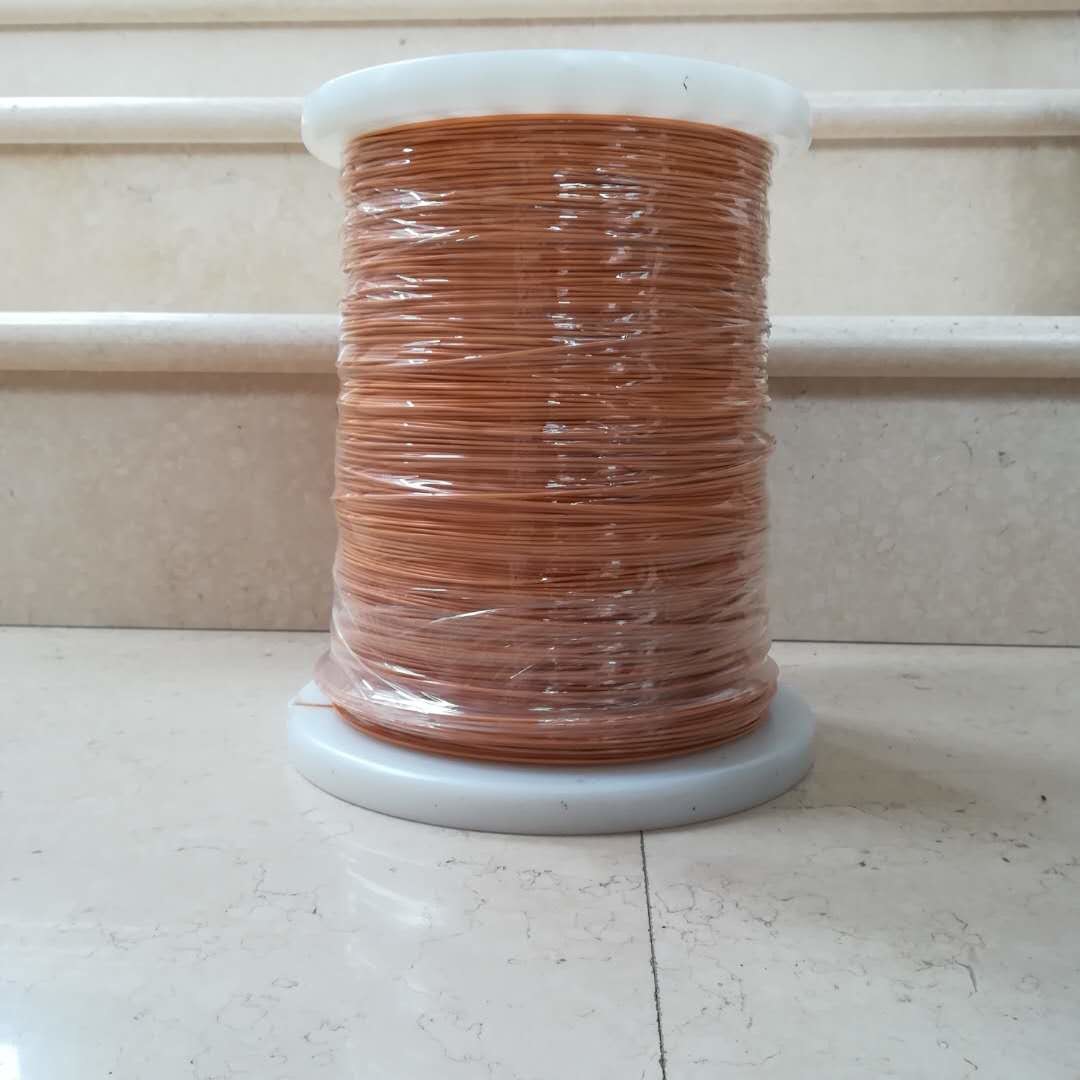

Muti Strands Triple Insulated litz Wire 0.08mmx1700

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.08x1700

Minimum Order Quantity:	1000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	100000/week

Get Best Price Contact Now

Detail Information

Product Name:	Muti Strands Triple Insulated Litz Wire 0.08mmx1700	MOQ:	1000M
Diameter:	0.08mm	Conductor Material:	Copper
Key Word:	Muti Strands Triple Insulated Litz Wire 0.08mmx1700	Strands:	1700
Highlight:	0.08mmx1700 litz Wire , 0.08mmx1700 Triple Insulated Wire , Muti Strands Triple Insulated Wire

Product Description

Muti Strands Triple Insulated litz Wire 0.08mmx1700

In addition to our standard triple insulated wire, we also offer triple insulated Litz wire, designed for applications that require flexibility and reduced skin effect. Made from multiple strands of enameled wire twisted together, our Litz wire excels in high frequency applications. This design not only improves the conductivity of the wire, it also increases its overall efficiency, making it a top choice for advanced transformer designs.

Temperature resistance grade ℃	155
Straight weldability [s] (430℃±10℃) Max.	6
resistance [Ω/m] (20℃) Max.	2.29
Withstand voltage AC to stranded wire (Leakage current 5mA) Min.	6000
Thickness of single insulating layer(mm)	0.11±0.01
Max.finished outside diameter[mm]	4.80
