Name: 0.25mm Class B 130 155 Triple Insulated Copper Wire For Transformer
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.25mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	0.25mm Class B 130 155 Triple Insulated Copper Wire For Transformer	Thermal Rating:	130
Insulation Material:	PET	Diameter:	0.25mm
Conductor Material:	Copper	Key Word:	0.25mm Class B 130 155 Triple Insulated Copper Wire For Transformer
Highlight:	Class B Triple Insulated Copper Wire , 130 155 Triple Insulated Copper Wire , 0.25mm Triple Insulated Copper Wire

Product Description

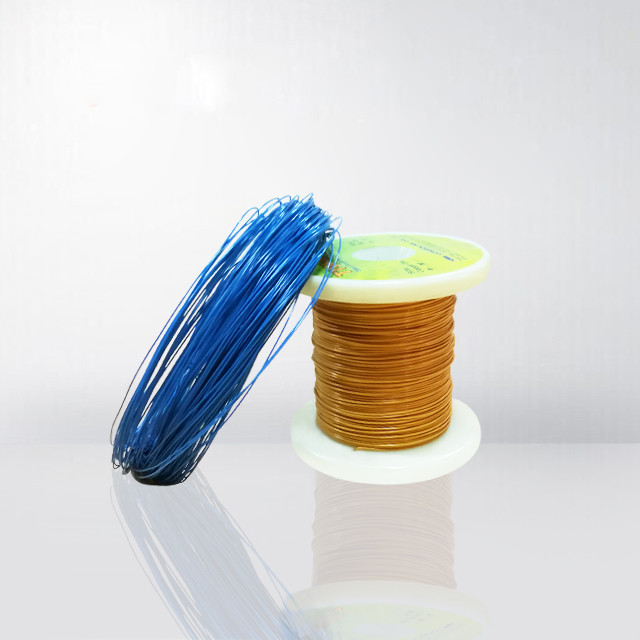

0.25mm Class B 130 155 Triple Insulated Copper Wire For Transformer

product name	triple insulated wire (single core)
product material	Pure copper enameled wire/PET polyester
Product color	Default (earth yellow) other colors can be customized
Specification range	0.13mm-1.0mm pure copper diameter without paint layer
Product Description	This type of wire has three layers of insulation with a core wire in the middle. The first layer is a golden polyamide film with a thickness of a few microns, but it can withstand a pulse high voltage of 1kV; the second layer is a highly insulating paint coating; the third layer (the outermost layer) is transparent fiberglass layer. The total thickness of the insulating layer is only 20-100 Å. Three-layer insulated wire is suitable for cutting-edge technology and national defense fields, making micro-motor windings and high-frequency transformer windings for miniaturized switching power supplies. Its advantages are high insulation strength (any two layers can withstand a safe voltage of 3000V AC), no need to add a barrier layer to ensure a safe margin, and no need to wind an insulating tape layer between stages; the current density is high. The volume of the high-frequency transformer wound with it can be reduced by half compared with that wound with enameled wire. The texture of the three-layer insulated wire is tough, and it needs to be heated to 200-300°C to soften and wind. After the winding is completed, the coil can be automatically formed after being cooled.

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.25mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	100000/week
