| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08x1700 |
| Minimum Order Quantity: | 1000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100000/week |
| Product Name: | Class F Triple Insulated Wire Litz Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Teflon | Diameter: | 0.08mm |
| Conductor Material: | Copper | Key Word: | Class F Triple Insulated Wire Litz Wire |
| Strands: | 1700 | ||
| High Light: | Triple Insulated Wire,Class F Litz Wire,Triple Insulated Litz Wire |
||

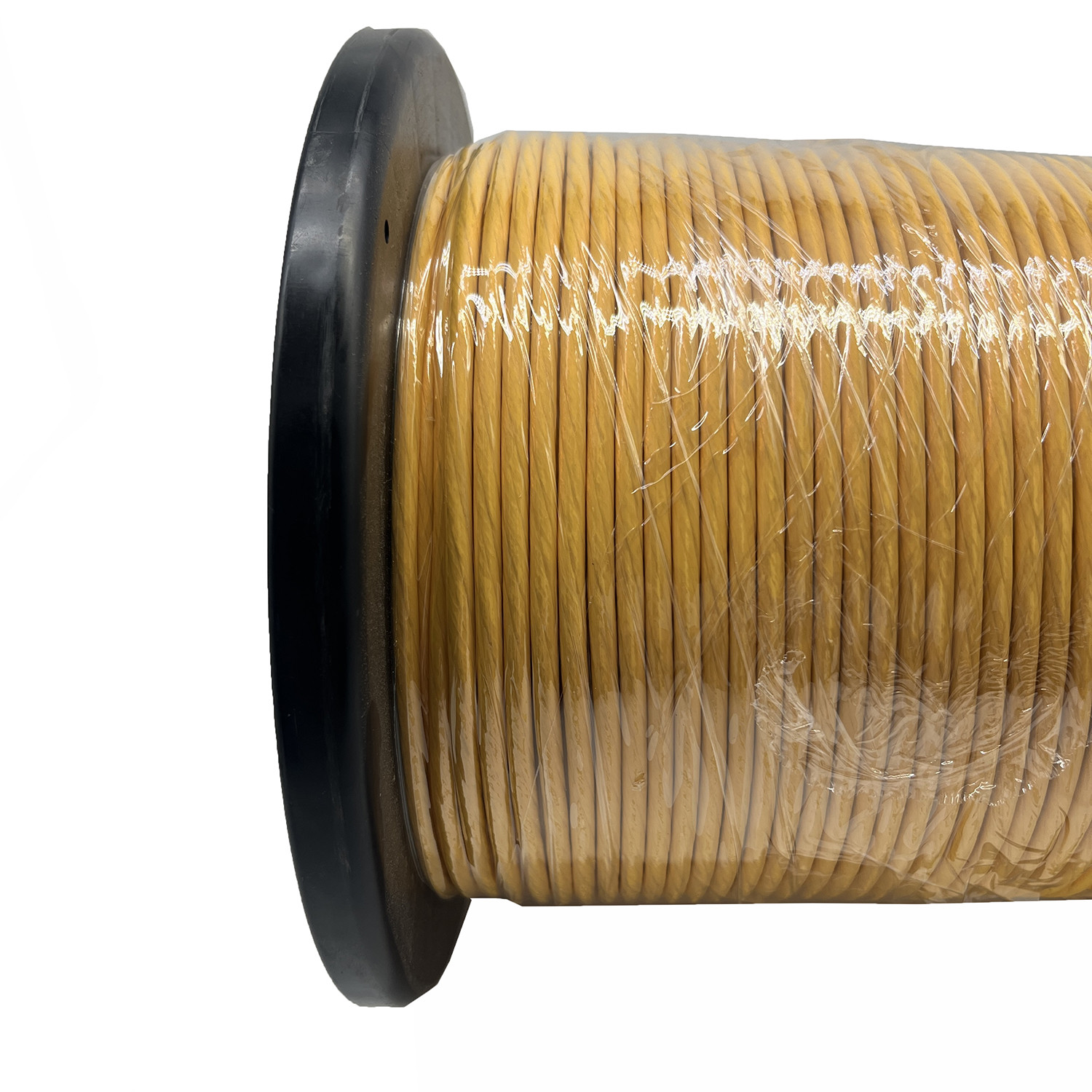

Class F Triple Insulated Wire Litz Wire
•Conductor : Solid or Stranded Copper
•Insulation : ETFE
•Benefit : Medical grade triple wire
•Application :
Industrial power: automation equipment system, test instrumentation, solar inverters
Hight power household appliance: red wine, sewing machines, large-scale vacuum cleaners, lawn mowers
Medical grade power: microsurgery lighting, imaging systems, X-ray computer tomography, ultrasound, invasive developers
|
FTIW-F-Y 0.08*1700 |
|
|
|||
|
Specification (nominal diameter of conductor * number of strands) |
Single line [mm] |
LITZ WIRE |
|||
|
Conductor tolerance |
Min.paint film thickness |
Finished outside diameter |
molding |
Twist [MM] |
|
|
0.08*1700 |
0.08±0.003 |
0.003 |
0.086-0.097 |
0.08*68 |
S1=45±3 |
|
0.08*68*5 |
S2=45±3 |
||||
|
0.08*68*5*5 |
S3=66±5 |
||||
|
0.08*1700 Finished product line |
|||||
|
Temperature resistance grade ℃ |
Straight weldability [s] (430℃±10℃) Max. |
resistance [Ω/m] (20℃) Max. |
Withstand voltage AC to stranded wire (Leakage current 5mA) Min. |
Thickness of single insulating layer(mm) |
Max.finished outside diameter[mm] |
|
155 |
6 |
2.29 |
6000 |
0.11±0.01 |
4.80 |
