| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08x1700 |
| Minimum Order Quantity: | 1000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100000/week |
| Product Name: | FTIW 0.08mm Triple Insulated Wire Litz Wire Copper | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Teflon | Diameter: | 0.08mm |
| Conductor Material: | Copper | Key Word: | FTIW 0.08mm Triple Insulated Wire Litz Wire Copper |
| Strands: | 1700 | ||
| High Light: | 0.08mm Triple Insulated Wire,Copper Triple Insulated Wire,Litz Wire Triple Insulated Wire |
||

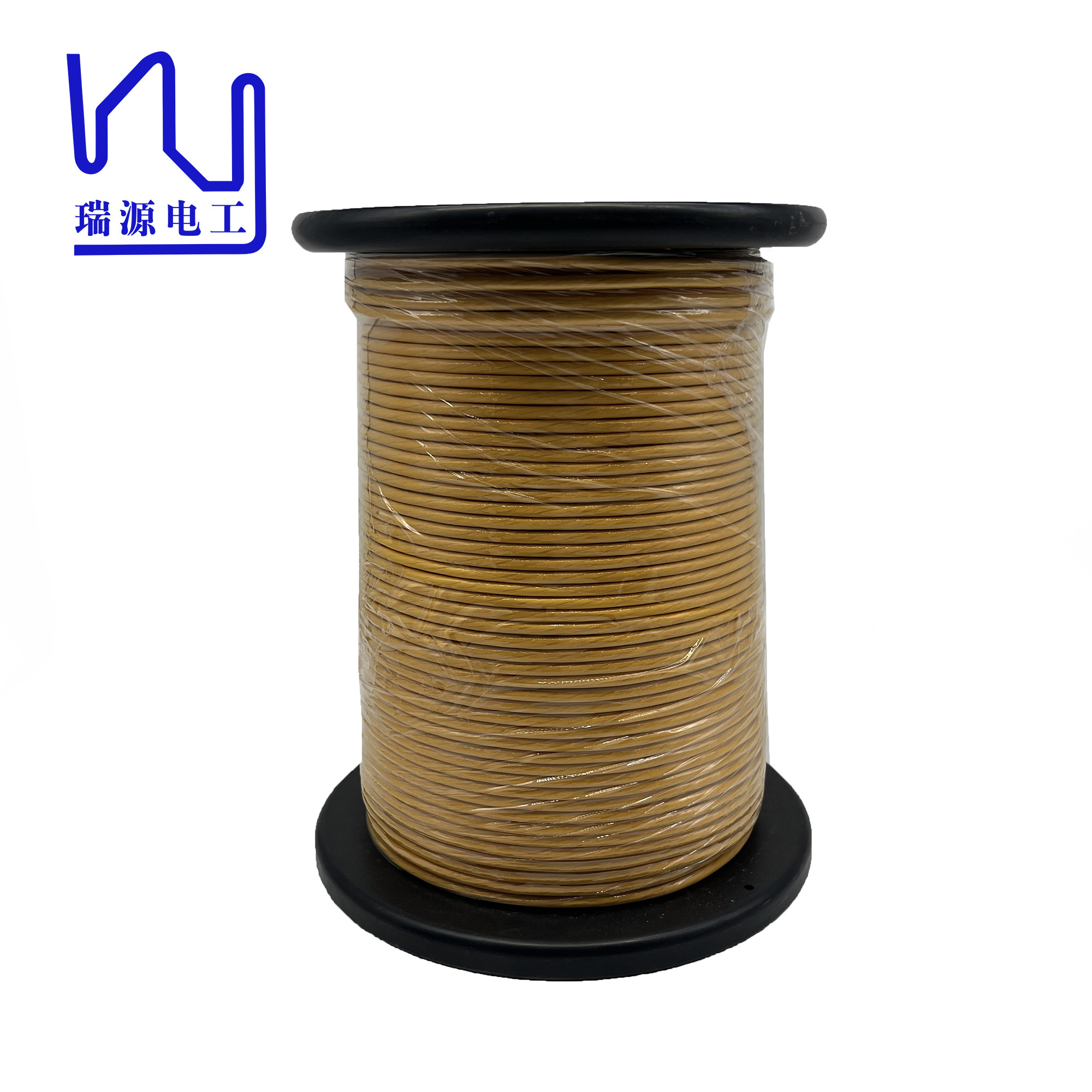

FTIW 0.08mm Triple Insulated Wire Litz Wire Copper
ETFE triple insulated wire is engineered to perform well in a wide range of applications from the aerospace and automotive industries to medical devices and consumer electronics. Its excellent insulation properties make it an excellent choice for high-frequency signal transmission, power distribution and control systems.
| FTIW-F-Y 0.08*1700 | |||||
|
Specification (nominal diameter of conductor * number of strands) |
Single line [mm] | LITZ WIRE | |||
|
Conductor tolerance |
Min.paint film thickness |
Finished outside diameter |
molding |
Twist [MM] |
|
|
0.08*1700 |
0.08±0.003 |
0.003 |
0.086-0.097 |
0.08*68 | S1=45±3 |
| 0.08*68*5 | S2=45±3 | ||||
| 0.08*68*5*5 | S3=66±5 | ||||
| 0.08*1700 Finished product line | |||||
|
Temperature resistance grade ℃ |
Straight weldability [s] (430℃±10℃) Max. |
resistance [Ω/m] (20℃) Max. |
Withstand voltage AC to stranded wire (Leakage current 5mA) Min. |
Thickness of single insulating layer(mm) |
Max.finished outside diameter[mm] |
|
155 |
6 |
2.29 |
6000 |
0.11±0.01 |
4.80 |
