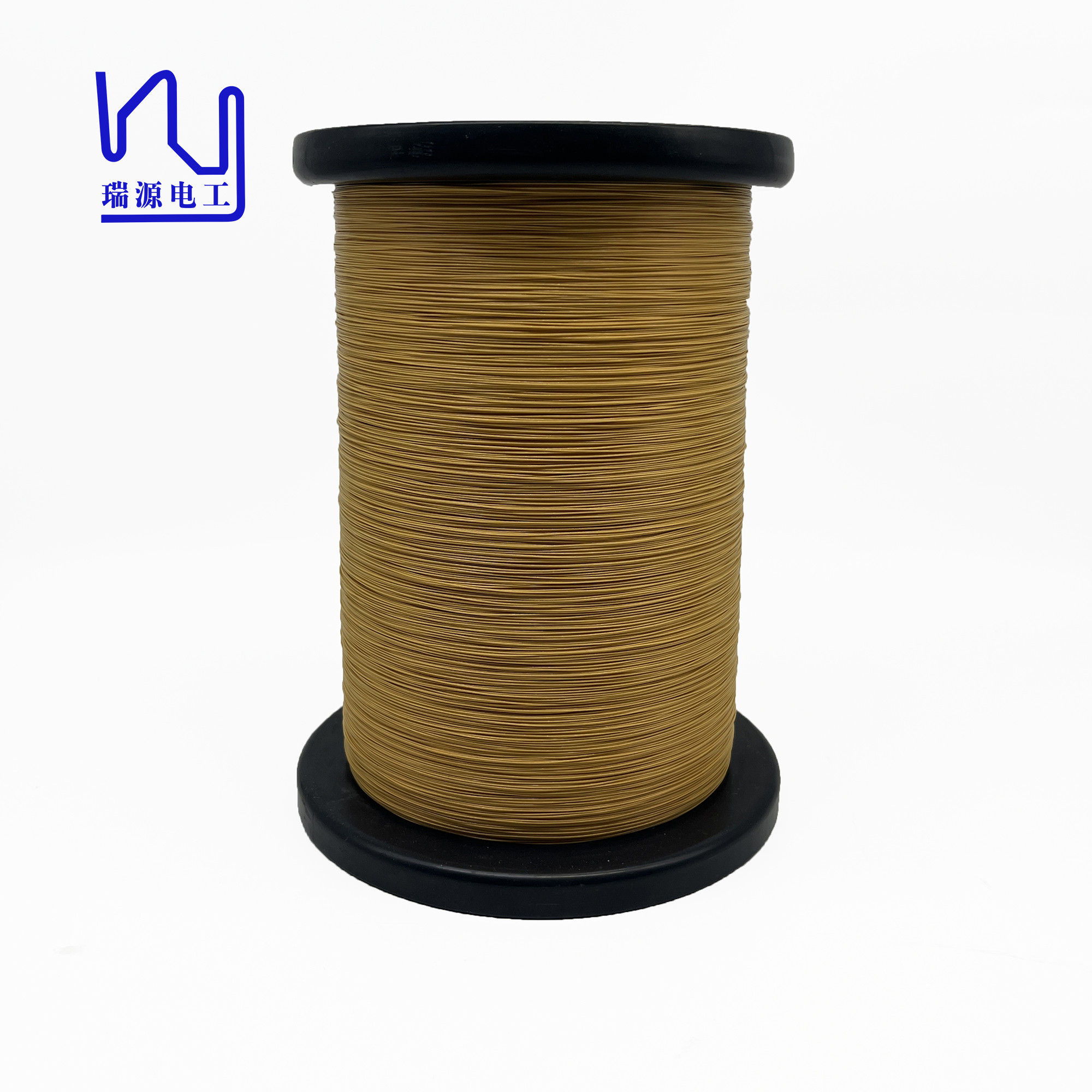

0.2mm 0.3mm 0.4mm TIW Wire Triple Insualted Litz Wire UL System Certificate

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.3mm*7
Minimum Order Quantity: 3000 meter
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 0.2mm 0.3mm 0.4mm TIW Wire Triple Insualted Litz Wire UL System Certificate Thermal Rating: 130
Diameter: 0.1mm Conductor Material: Copper
Key Word: 0.2mm 0.3mm 0.4mm TIW Wire Triple Insualted Litz Wire UL System Certificate
High Light:

0.2mm Triple Insualted Litz Wire

,

0.3mm Triple Insualted Litz Wire

,

0.4mm Triple Insualted Litz Wire


Product Description

0.2mm 0.3mm 0.4mm TIW Wire Triple Insualted Litz Wire UL System Certificate



triple insulated wire also provides excellent electrical insulation properties. It has high voltage and low high frequency losses, making it suitable for high frequency and high voltage applications. Moreover, the wire does not absorb moisture and has high insulation resistance, ensuring stable and reliable electrical performance under various working conditions. These features make FTIW wire an ideal solution for critical electrical and electronic systems where insulation integrity is critical.



Characteristics Test Standard Conclusion
Overall Diameter /MM(MAX) 0.302
Insualtion thickness /MM(Min) 0.02
Tolerance 0.30±0.003mm 0.30
Pitch S13±2 OK
Overall dimension 1.130MM(MAX) 1.130
Insulation thickness 0.12±0.02MM(Min) 0.12
Pinhole 0Max 0
Resistance 37.37Ω/KM(Max) 36.47
Breakdown voltage 6KV(Min) 13.66
Solder ability ±10℃ 450 3Secs OK
Key word

0.2mm 0.3mm 0.4mm TIW Wire Triple Insualted Litz Wire UL System Certificate
