Product Name: | 0.3mm TIW Wire Triple Insualted Litz Wire For High Voltage Transformer | Thermal Rating: | 130 |
---|---|---|---|
Diameter: | 0.1mm | Conductor Material: | Copper |
Key Word: | 0.3mm TIW Wire Triple Insualted Litz Wire For High Voltage Transformer | ||
Highlight: | 0.3mm TIW Wire,0.3mm Triple Insualted Litz Wire,TIW Wire For High Voltage Transformer |

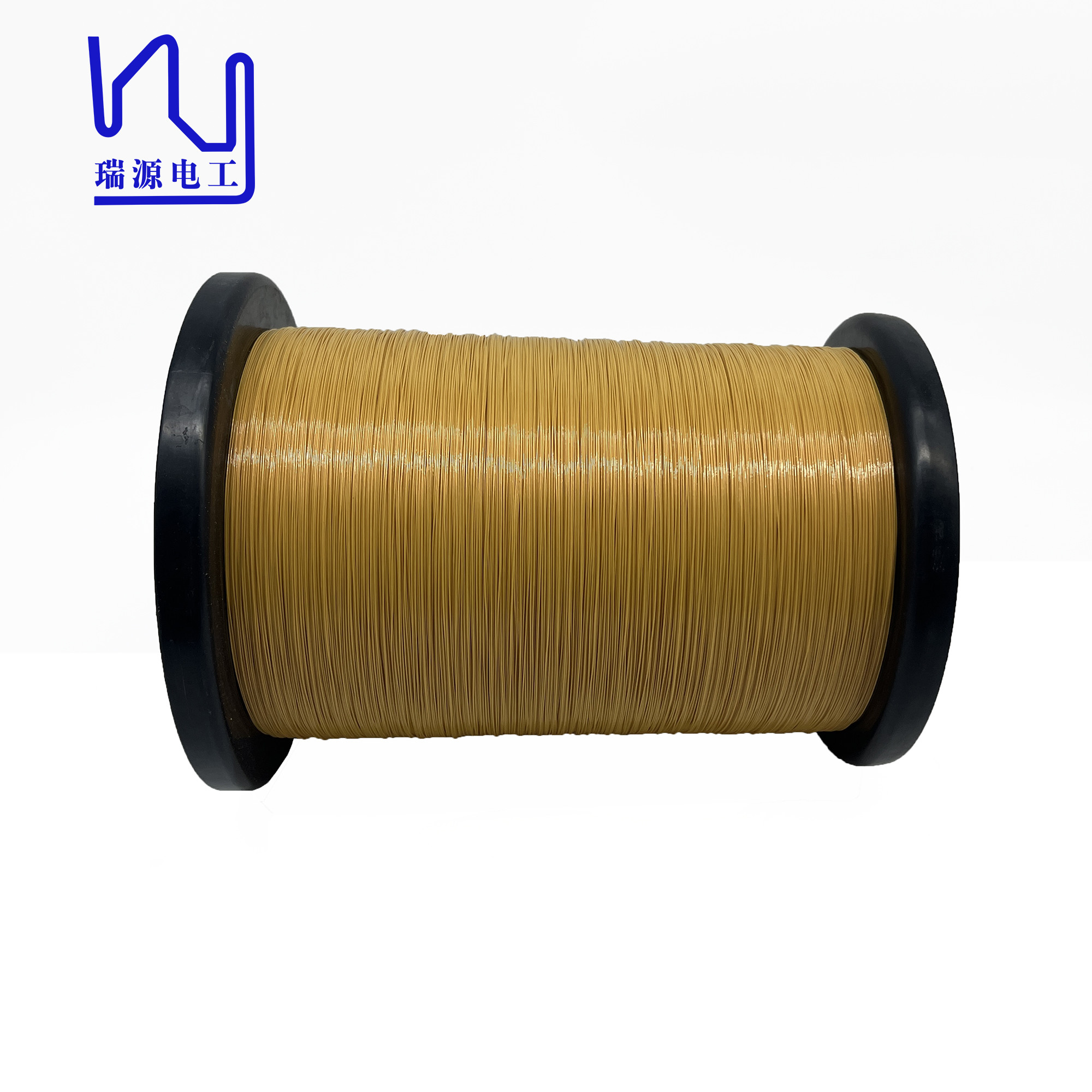

0.3mm TIW Wire Triple Insualted Litz Wire For High Voltage Transformer
The advantages of triple insulated wire are many. First, it has excellent corrosion resistance, making it suitable for use in harsh environments where contact with corrosive substances is required. In addition, is almost insoluble in any organic solvents and is resistant to oil, strong acids, strong alkali and strong oxidants, ensuring the service life and reliability of wires under harsh conditions.
Characteristics | Test Standard | Conclusion |
Overall Diameter | /MM(MAX) | 0.302 |
Insualtion thickness | /MM(Min) | 0.02 |
Tolerance | 0.30±0.003mm | 0.30 |
Pitch | S13±2 | OK |
Overall dimension | 1.130MM(MAX) | 1.130 |
Insulation thickness | 0.12±0.02MM(Min) | 0.12 |
Pinhole | 0Max | 0 |
Resistance | 37.37Ω/KM(Max) | 36.47 |
Breakdown voltage | 6KV(Min) | 13.66 |
Solder ability ±10℃ | 450 3Secs | OK |
