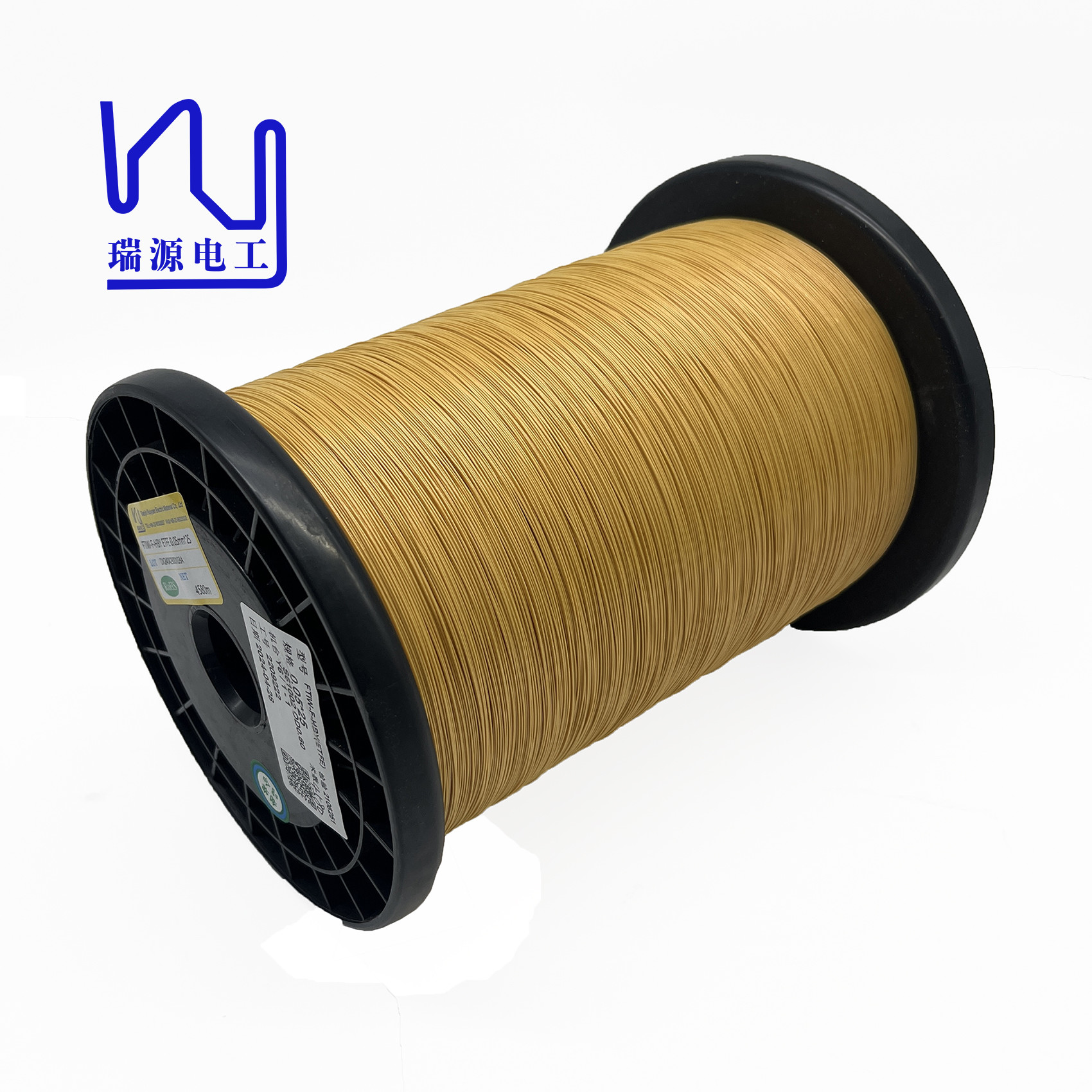

0.3mm*7 Triple Insualted Litz Wire PTFE Serving Copper

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.3mm*7

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	FTIW-F 0.3mm7 Triple Insualted Wire PTFE Serving Copper Conductor0.3mm7 Triple Insualted Litz Wire PTFE Serving Copper	Thermal Rating:	130
Diameter:	0.1mm	Conductor Material:	Copper
Key Word:	0.3mm*7 Triple Insualted Litz Wire PTFE Serving Copper
Highlight:	0.3mm*7 Triple Insualted Litz Wire , PTFE Serving Triple Insualted Litz Wire , Copper Triple Insualted Litz Wire

Product Description

0.3mm*7 Triple Insualted Litz Wire PTFE Serving Copper

Triple Insulated Wire (FTIW) is a high-performance wire designed to meet the demanding requirements of various industries. The wire is constructed of three layers of insulation, with the outermost layer made of polytetrafluoroethylene (PTFE), a synthetic fluoropolymer known for its exceptional properties. The combination of triple insulation and PTFE materials makes FTIW wire ideal for applications requiring superior electrical performance, reliability and durability.

Characteristics	Test Standard	Conclusion
Overall Diameter	/MM(MAX)	0.302
Insualtion thickness	/MM(Min)	0.02
Tolerance	0.30±0.003mm	0.30
Pitch	S13±2	OK
Overall dimension	1.130MM(MAX)	1.130
Insulation thickness	0.12±0.02MM(Min)	0.12
Pinhole	0Max	0
Resistance	37.37Ω/KM(Max)	36.47
Breakdown voltage	6KV(Min)	13.66
Solder ability ±10℃	450 3Secs	OK
Key word	FTIW-F 0.3mm*7 Triple Insualted Wire PTFE Serving Copper Conductor
