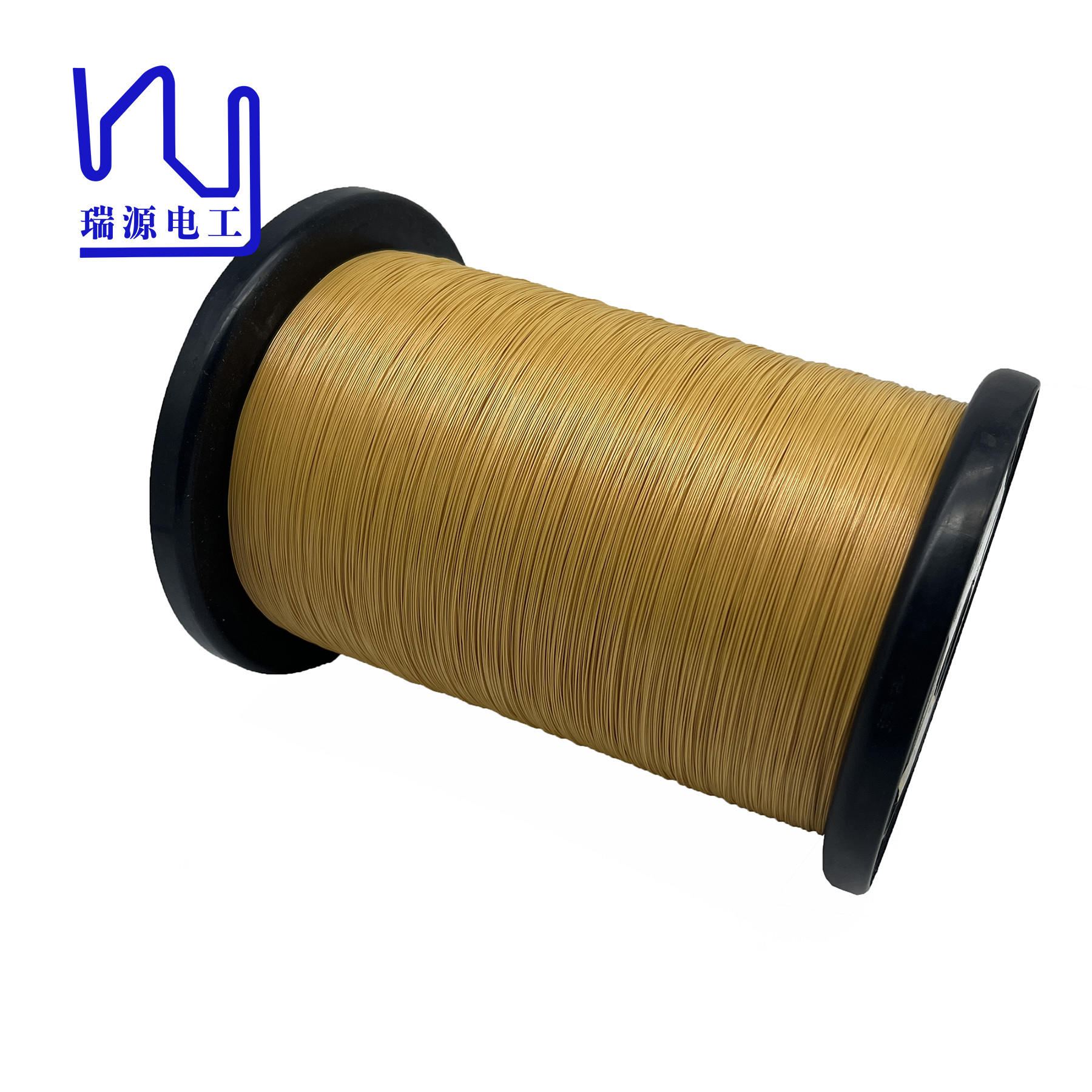

FTIW-F 0.3mm*7 Triple Insualted Wire PTFE Serving Copper Conductor

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.3mm*7

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	FTIW-F 0.3mm*7 Triple Insualted Wire PTFE Serving Copper Conductor	Thermal Rating:	130
Diameter:	0.1mm	Conductor Material:	Copper
Key Word:	FTIW-F 0.3mm*7 Triple Insualted Wire PTFE Serving Copper Conductor
Highlight:	0.3mm Triple Insualted Wire , PTFE Serving Triple Insualted Wire , Copper Conductor Triple Insualted Wire

Product Description

FTIW-F 0.3mm*7 Triple Insualted Wire PTFE Serving Copper Conductor

This wire is made of 7 strands of 0.3mm enameled single wires twisted together and covered with .

Triple Insulated Wire (FTIW) is a high-performance wire designed to meet the demanding requirements of various industries. The wire is constructed of three layers of insulation, with the outermost layer made of polytetrafluoroethylene (PTFE), a synthetic fluoropolymer known for its exceptional properties.

Characteristics	Test Standard	Conclusion
Overall Diameter	/MM(MAX)	0.302
Insualtion thickness	/MM(Min)	0.02
Tolerance	0.30±0.003mm	0.30
Pitch	S13±2	OK
Overall dimension	1.130MM(MAX)	1.130
Insulation thickness	0.12±0.02MM(Min)	0.12
Pinhole	0Max	0
Resistance	37.37Ω/KM(Max)	36.47
Breakdown voltage	6KV(Min)	13.66
Solder ability ±10℃	450 3Secs	OK
Key word	FTIW-F 0.3mm*7 Triple Insualted Wire PTFE Serving Copper Conductor
