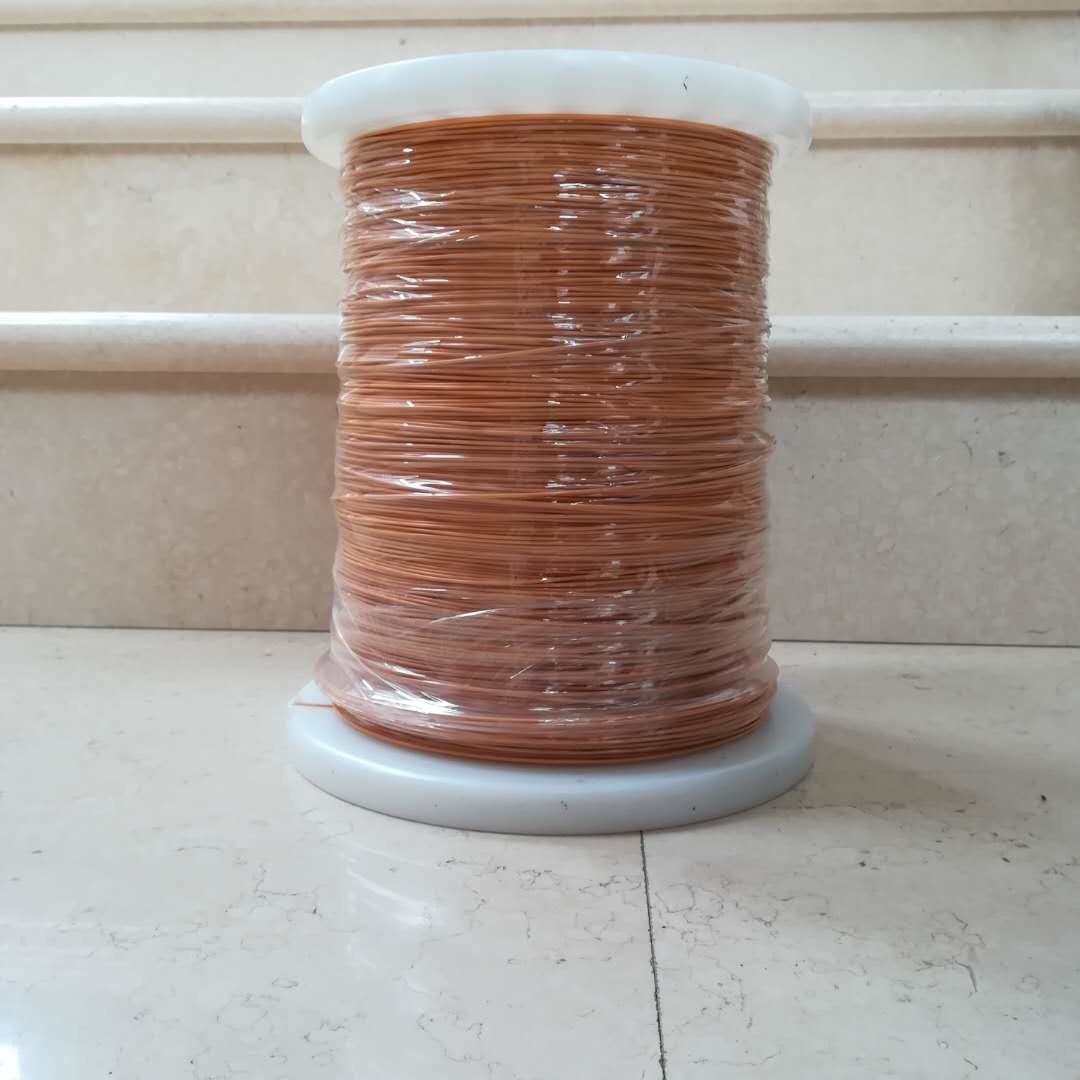

UL Certificated TIW-B 0.13mm Class 130 Triple Insulated Wire For Switching Transformer

UL Certificated TIW-B 0.13mm Class 130 Triple Insulated Wire For Switching Transformer
UL Certificated TIW-B 0.13mm Class 130 Triple Insulated Wire For Switching Transformer
UL Certificated TIW-B 0.13mm Class 130 Triple Insulated Wire For Switching Transformer
Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.13mm
Minimum Order Quantity: 3000 meter
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Get Best Price Contact Now
Detail Information
Product Name: UL Certificated TIW-B 0.13mm Class 130 Triple Insulated Wire For Switching Transformer Thermal Rating: 130
Insulation Material: UEW/ Diameter: 0.16mm
Conductor Material: Copper Key Word: UL Certificated TIW-B 0.13mm Class 130 Triple Insulated Wire For Switching Transformer
Highlight:

Copper Triple Insulated Wire

,

Switching Transformer Triple Insulated Wire

,

Class 130 TIW Wire

Product Description

Product name: UL Certificated TIW-B 0.13mm Class 130 Triple Insulated Wire for Switching Transformer



Advantages:

1. Production standard range : TIW-B/0.13~1.0MM
2. UL System Withstand voltage class, class B 130℃
3.Excellent withstand voltage characteristics, breakdown voltage greater than 6KV, obtained reinforced insulation.
4.No need to peel off the outer layer can be direct welding, solder ability no slag after soldering
5.Special abrasive resistance and surface smoothness, the product can meet the automatic winding machine high-speed winding.
6.Resistant chemical solvents and impregnated paint performance, Rating voltage Rated voltage(working voltage)1000VRMS
7. High strength insulation layer toughness, repeated bending strength, the insulation layers will not crack damage.



Characteristics

Value

Bare Wire Diameter

0.13±0.008MM

Overall Diameter

0.31-0.35mmMM(for transformer use)

Conductor Resistance

1153.21-1474.9Ω/KM

Breakdown voltage

6KV(twisting method)

Elongation

MIN:15%

Solder ability

420±10℃ 2-10Secs

Tag:

insulated copper wire,

tiw wire,

insulated magnet wire
