Solderable 0.1mm Tex-E Triple Insulated Copper Wire For High Voltage Transformer

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.1mm*250

Minimum Order Quantity:	100 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Solderable 0.1mm TEX-E Triple Insulated Copper Litz Wire For High Voltage Transformer	Thermal Rating:	130
Insulation Material:	UEW/	Diameter:	0.1mm
Conductor Material:	Copper	Key Word:	Solderable 0.1mm TEX-E Triple Insulated Copper Litz Wire For High Voltage Transformer
No. Of Strands:	250
Highlight:	0.1mm triple insulated copper wire , transformer triple insulated copper wire , solderable tiw wire

Product Description

Solderable 0.1mm TEX-E Triple Insulated Copper Litz Wire for High Voltage Transformer

The customizability of TIW wire further enhances its versatility and applicability across a variety of industries.

We can customize wire, including diameter, number of strands, and insulation, to meet your specific requirements.

This flexibility enables TIW wires to be used in a wide range of high-voltage applications such as power transformers, energy storage systems, electric vehicles and aerospace technology.

Product Name		Solderable 0.1mm TEX-E Triple Insulated Copper Litz Wire for High Voltage Transformer
Size		0.1mm*250
Insulation		Polyurethane
Thermal Rating		Class 130
Key word		Solderable 0.1mm TEX-E Triple Insulated Copper Litz Wire for High Voltage Transformer

Item/No.	Requirements	Test Result	Note
Appearance	Smooth surface, no black spots, no peeling, no copper exposure or cracking.	OK
Flexibility	10 turns winding on rod, no crack, no wrinkles, no peeling	OK
Solderability	420+/-5℃, 2-4s	OK	Can be peeled off, can be soldered
Overall Diameter	2.2+/-0.20mm	2.187mm
Conductor Diameter	0.1+/-0.005mm	0.105mm
Resistance	20℃, ≤9.81Ω/km	5.43
Breakdown Voltage	AC 6000V/60S, no breakdown of insulation	OK
Withstand Bending	Withstand 3000V for 1min.	OK
Elongation	≥15%	18%
Heat Shock	≤150° 1hr 3d no crack	OK
Withstand friction	Not less than 60 times	OK
Withstand temperature	-80℃-220℃ high temperature test, no wrinkle on surface, no peeling, no crack	OK

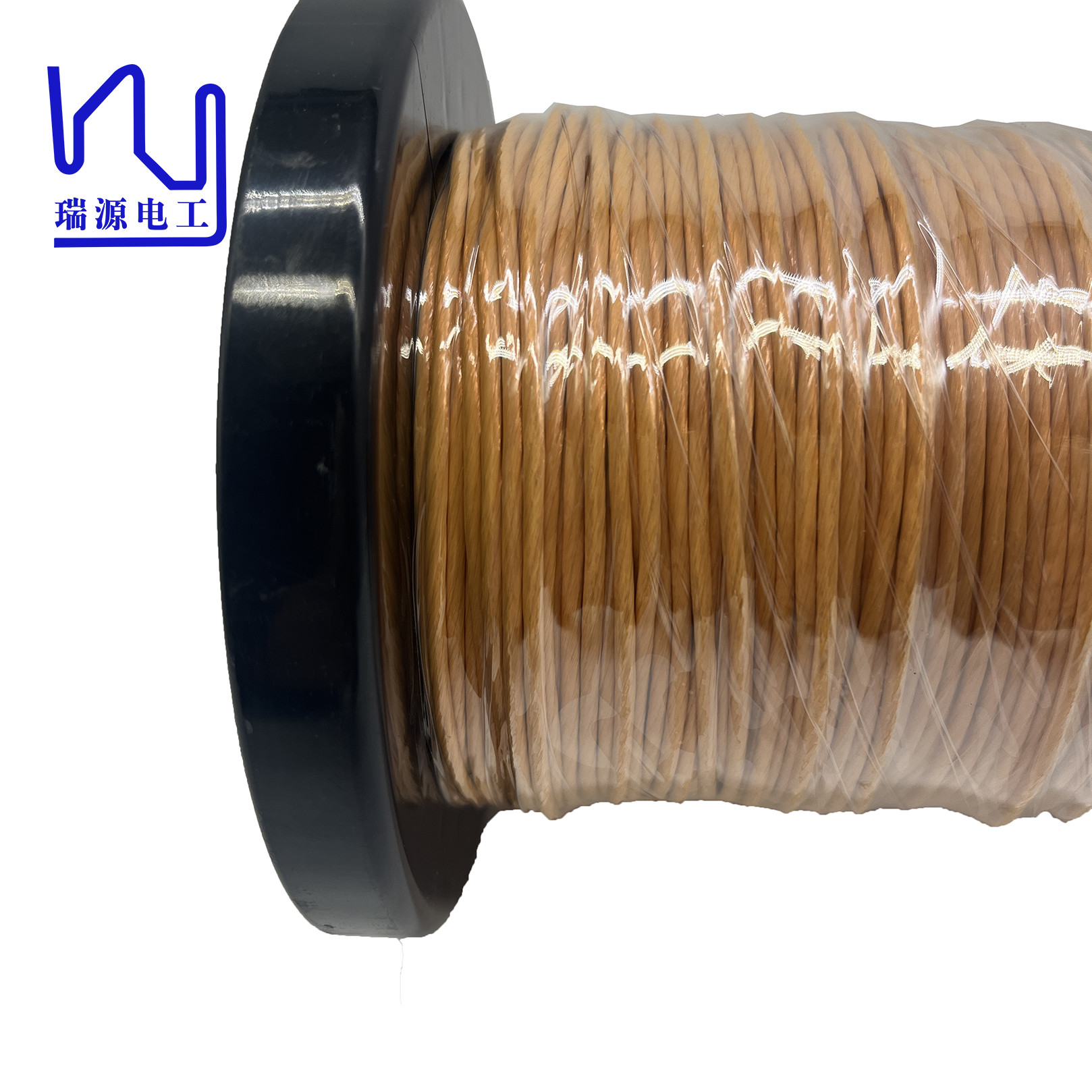

Solderable 0.1mm Tex-E Triple Insulated Copper Wire For High Voltage Transformer 0
