| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.1mm*250 |
| Minimum Order Quantity: | 100 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.1mm * 250 TIW-B Solderable Triple Insulated Litz Wire | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW/ | Diameter: | 0.1mm |
| Conductor Material: | Copper | Key Word: | 0.1mm * 250 TIW-B Solderable Triple Insulated Litz Wire |
| No. Of Strands: | 250 | ||
| High Light: | tiw-b enamel coated magnet wire,solderable enamel coated magnet wire,0.1 mm tiw wire |
||

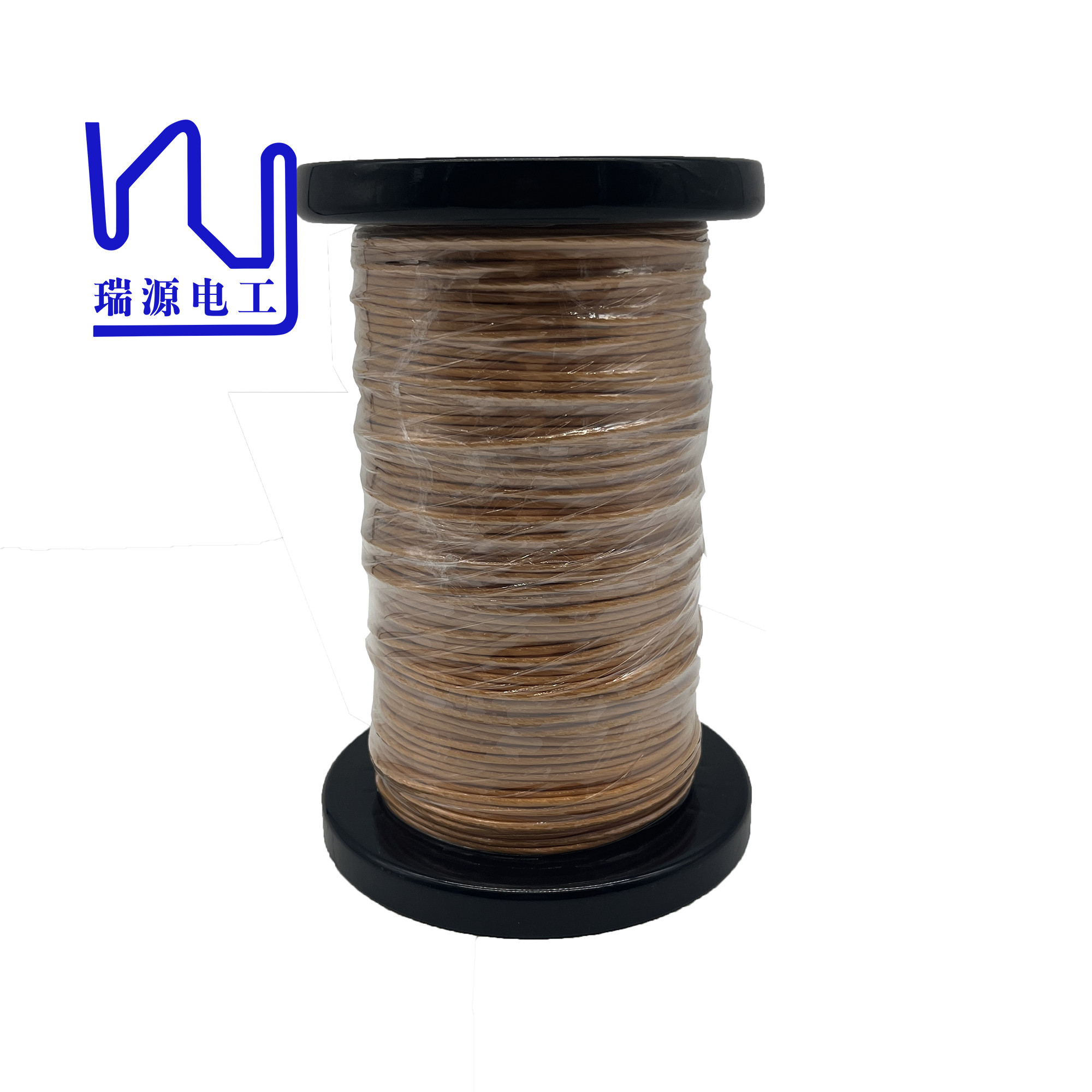

0.1mm * 250 TIW-B Solderable Triple Insulated Litz Wire
The fluoropolymer insulation layer contributes to the excellent thermal stability of TIW wire. It can withstand high operating temperatures without compromising its electrical integrity, ensuring safe and efficient operation even under harsh conditions.
|
Item/No. |
Requirements |
Test Result |
Note |
|
Appearance |
Smooth surface, no black spots, no peeling, no copper exposure or cracking. |
OK |
|
|
Flexibility |
10 turns winding on rod, no crack, no wrinkles, no peeling |
OK |
|
|
Solderability |
420+/-5℃, 2-4s |
OK |
Can be peeled off, can be soldered |
|
Overall Diameter |
2.2+/-0.20mm |
2.187mm |
|
|
Conductor Diameter |
0.1+/-0.005mm |
0.105mm |
|
|
Resistance |
20℃, ≤9.81Ω/km |
5.43 |
|
|
Breakdown Voltage |
AC 6000V/60S, no breakdown of insulation |
OK |
|
|
Withstand Bending |
Withstand 3000V for 1min. |
OK |
|
|
Elongation |
≥15% |
18% |
|
|
Heat Shock |
≤150° 1hr 3d no crack |
OK |
|
|
Withstand friction |
Not less than 60 times |
OK |
|
|
Withstand temperature |
-80℃-220℃ high temperature test, no wrinkle on surface, no peeling, no crack |
OK |
|
