0.1mm X 250 Strands Self Bonding Magnet Wire Triple Insulated Copper Litz

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.1mm*250
Minimum Order Quantity: 100 meter
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 0.1mm X 250 Strands Triple Insulated Copper Litz Wire Thermal Rating: 130
Insulation Material: UEW/Teflon Diameter: 0.1mm
Conductor Material: Copper Key Word: 0.1mm X 250 Strands Triple Insulated Copper Litz Wire
No. Of Strands: 250
High Light:

250 strands self bonding magnet wire

,

triple insulated self bonding magnet wire

,

copper litz tiw wire


Product Description

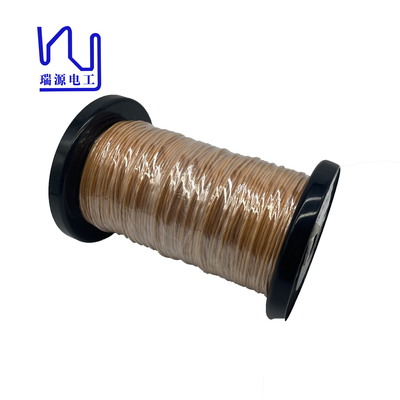

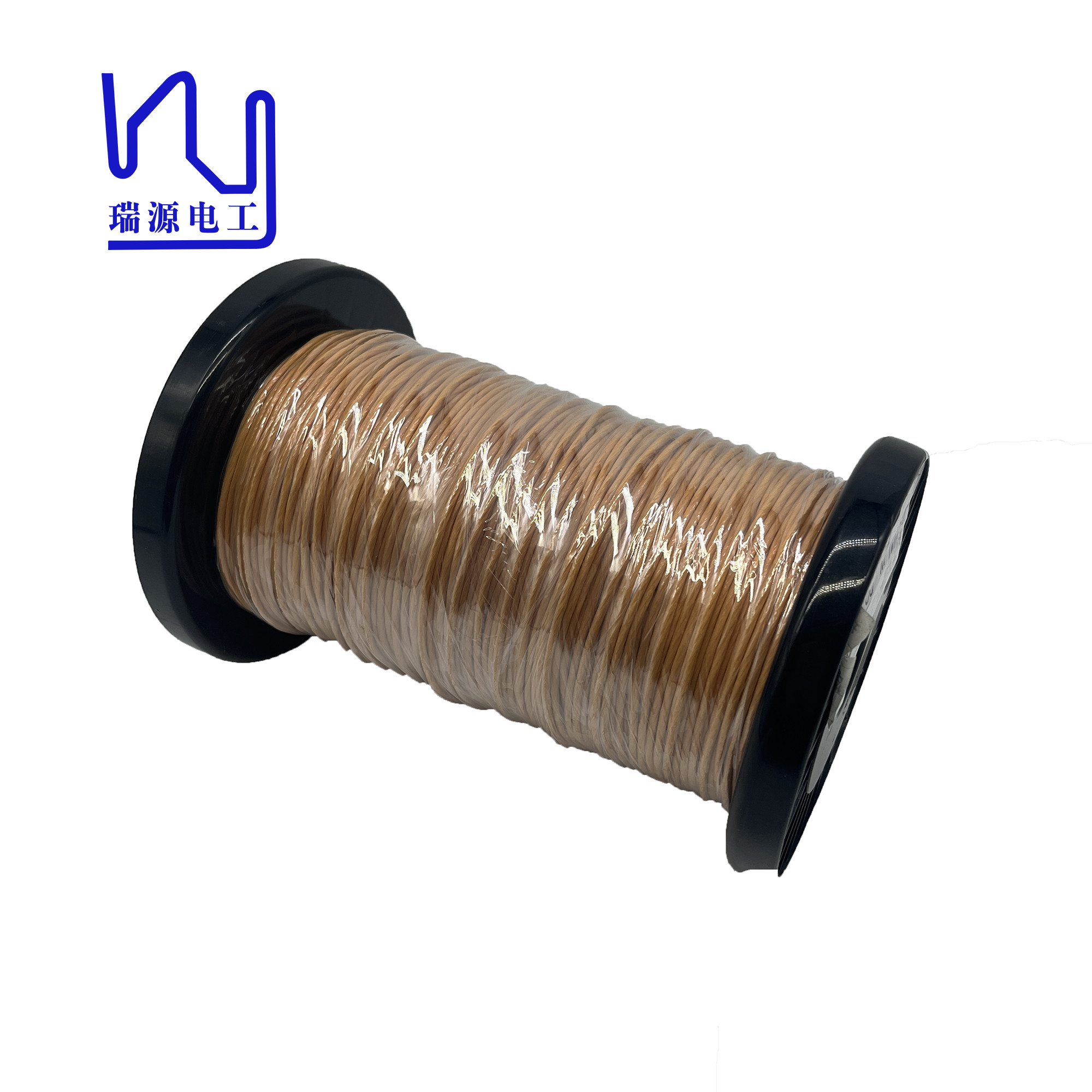

0.1mm x 250 strands Triple Insulated copper Litz wire



This triple insulated wire consists of 250 strands of 0.1mm enameled copper wire. Its outer insulation enables it to withstand voltages up to 6000V, making it ideal for high voltage transformer windings and a variety of other high voltage applications.



Product Name

0.1mm x 250 strands Triple Insulated copper Litz wire

Size

0.1mm*250

Insulation

Polyurethane

Thermal Rating

Class 130

Key word

0.1mm x 250 strands Triple Insulated copper Litz wire





Item/No.

Requirements

Test Result

Note

Appearance

Smooth surface, no black spots, no peeling, no copper exposure or cracking.

OK



Flexibility

10 turns winding on rod, no crack, no wrinkles, no peeling

OK



Solderability

420+/-5℃, 2-4s

OK

Can be peeled off, can be soldered

Overall Diameter

2.2+/-0.20mm

2.187mm



Conductor Diameter

0.1+/-0.005mm

0.105mm



Resistance

20℃, ≤9.81Ω/km

5.43



Breakdown Voltage

AC 6000V/60S, no breakdown of insulation

OK



Withstand Bending

Withstand 3000V for 1min.

OK



Elongation

≥15%

18%



Heat Shock

≤150° 1hr 3d no crack

OK



Withstand friction

Not less than 60 times

OK



Withstand temperature

-80℃-220℃ high temperature test, no wrinkle on surface, no peeling, no crack

OK





0.1mm X 250 Strands Self Bonding Magnet Wire Triple Insulated Copper Litz 0
0.1mm X 250 Strands Self Bonding Magnet Wire Triple Insulated Copper Litz 1
