| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.071mm*270 |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Triple Insulated Layers Wire Copper Wire UL Certificated Solid 1000 Vrms | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.071mm*270 |
| Conductor Material: | Copper | Key Word: | Triple Insulated Layers Wire Copper Wire UL Certificated Solid 1000 Vrms |
| High Light: | magnet triple insulated winding wire,transformer triple insulated magnet wire,tiw triple insulated magnet wire |
||

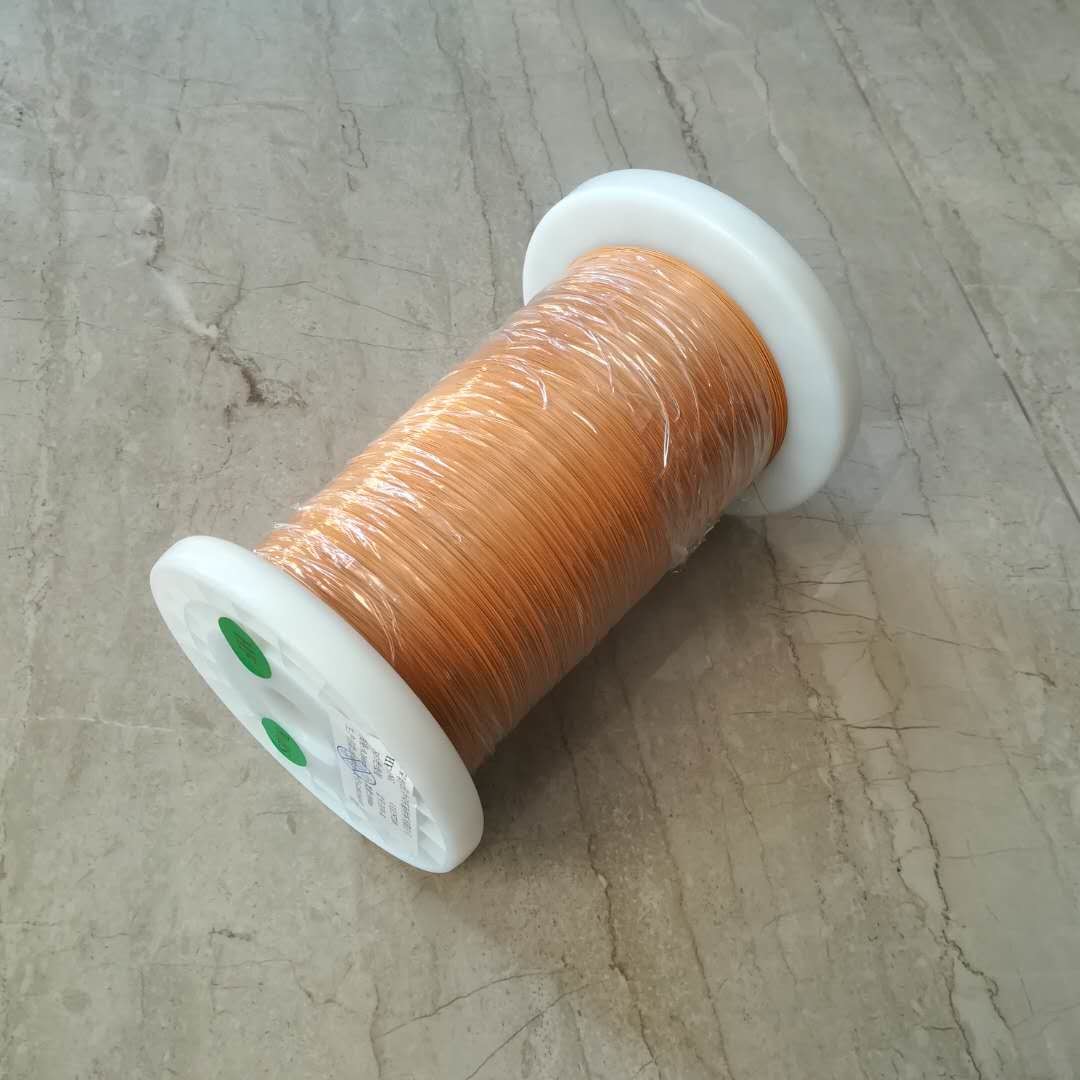

Triple Insulated Layers Wire Copper Wire UL Certificated Solid 1000 Vrms
Triple insulated wire is suitable for occasions that require high withstand voltage and high corrosion resistance, such as electric power, communication, aerospace and other fields.
Triple insulated wire is widely used in the manufacture of high-end electrical appliances such as micro-motor windings and high-frequency transformers.
The electrical properties of this wire depend on its insulating material.
| Test Items | Requirements | Test Data | ||
| 1st Sample | 2nd Sample | 3rd Sample | ||
| Appearance | Smooth & Clean | OK | OK | OK |
| Single Thickness of Insulation | 0.114±0.01mm | 0.121 | 0.119 | 0.120 |
| Overall Diameter | ≤ 1.76±0.12mm | 1.75 | 1.76 | 1.71 |
| Resistance | ≤18.85 Ω/Km | 16.40 | 15.43 | 16.24 |
| Elongation | ≥ 15% | 38.6 | 37.4 | 37.2 |
| Breakdown Voltage | Min.10KV | OK | OK | OK |
| Adherence | No cracks visible | OK | OK | OK |
| Heat Shock | 240℃ 2min No breakdown | OK | OK | OK |
