| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.15mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | UL Certified Class B F 0.15mm Insulated TIW Triple Insulated Copper Wire | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.15mm |
| Conductor Material: | Copper | Key Word: | UL Certified Class B F 0.15mm Insulated TIW Triple Insulated Copper Wire |
| High Light: | 0.15 mm triple insulated litz wire,soldering triple insulated litz wire,triple insulated magnet wire 0.15 mm |
||

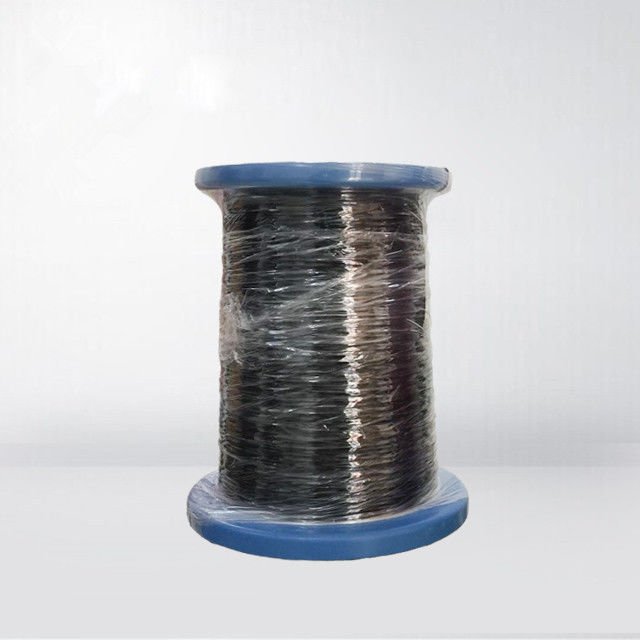

UL Certified Class B F 0.15mm Insulated TIW Triple Insulated Copper Wire
The three insulation layers of the wire consist of a golden yellow polyamide film, a highly insulating lacquer coating and a transparent fiberglass layer.
Triple-insulated wire has a wide range of applications in cutting-edge technology and defense. It can be used to make windings of miniature motors and high-frequency transformer windings of miniaturized switching power supplies.
|
Characteristics
|
Technical requests |
Test Results |
Conclusion |
|||
|
|
|
|
|
Sample 1 |
Sample 2 |
|
|
1 |
Surface |
Good |
OK |
OK |
OK |
|
|
2 |
Bare Wire Diameter |
0.15± |
0.008 |
0.155 |
0.15 |
OK |
|
0.008 |
||||||
|
4 |
Overall Diameter |
0.35±0.02mm |
0.35 |
0.351 |
OK |
|
|
5 |
Conductor Resistance |
≤ 1008.70Ω/km |
988.5 |
979.6 |
OK |
|
|
6 |
Elongation |
≥ 15 % |
27.50% |
25.50% |
OK |
|
|
Remark: |
||||||
|
|
Test Items |
Technical Requests |
Results |
Conclusion: |
||
|
1 |
Adhesive |
Coating layer is good |
OK |
Approved |
||
|
2 |
Heat Shock |
225 ℃ 30min no crack |
OK |
|
|
|
|
3 |
Solder Ability |
420± 5℃ 2-10 Secs |
OK |
|
||
|
4
|
Breakdown Voltage
|
AC6KV/60s, no degumming, no crack
|
OK
|
|||
