| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.15mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.1mm-1mm Custom High Voltage Triple Insulated Wire For Small Transformer Windings | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.15mm |
| Conductor Material: | Copper | Key Word: | 0.1mm-1mm Custom High Voltage Triple Insulated Wire For Small Transformer Windings |
| High Light: | 0.1mm tiw wire,enameled tiw wire,1mm triple insulated wire |
||

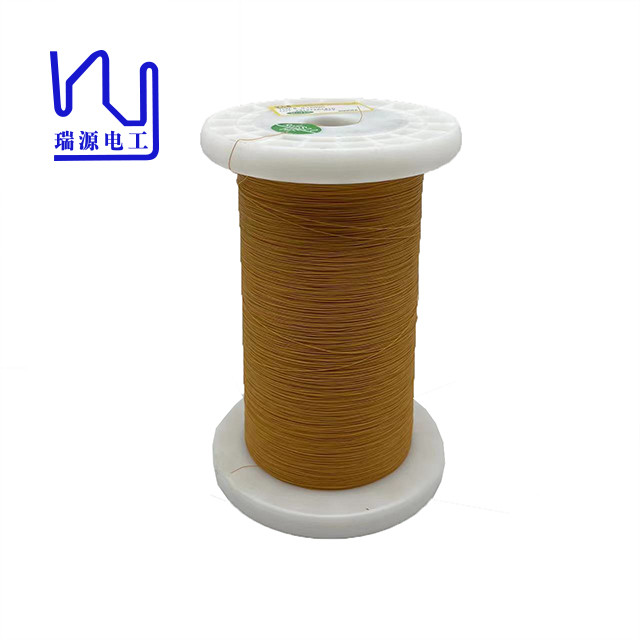

0.1mm-1mm Custom High Voltage Triple Insulated Wire for Small Transformer Windings
| Characteristics | Test Standard | Conclusion |
| Bare Wire Diameter | 0.15±0.008MM | 0.145-0.155 |
| Overall Diameter | 0.35±0.020MM | 0.345-0.355 |
| Conductor Resistance | 879.3-1088.70Ω/KM | 1043.99Ω/KM |
| Breakdown voltage | AC 6KV/60S no crack | OK |
| Elongation | MIN:15% | 19.4-22.9% |
| Solder ability | 420±10℃ 2-10Secs | OK |
| Adhesion | Pull and break at a constant speed, and the exposed copper of the wire should not exceed 3mm | |
| Conclusion | Qualified |
