Name: Ul Certificated Triple Insulated Wire Tiw 0.15mm Class B 130
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.15mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	UL Certificated TIW 0.15mm Class B 130 Triple Insulated Wire	Thermal Rating:	130
Insulation Material:	UEW	Diameter:	0.15mm
Conductor Material:	Copper	Key Word:	UL Certificated TIW 0.15mm Class B 130 Triple Insulated Wire
Highlight:	super enamelled copper triple insulated wire , 0.15 mm triple insulated wire , super enamelled copper tiw wire

Product Description

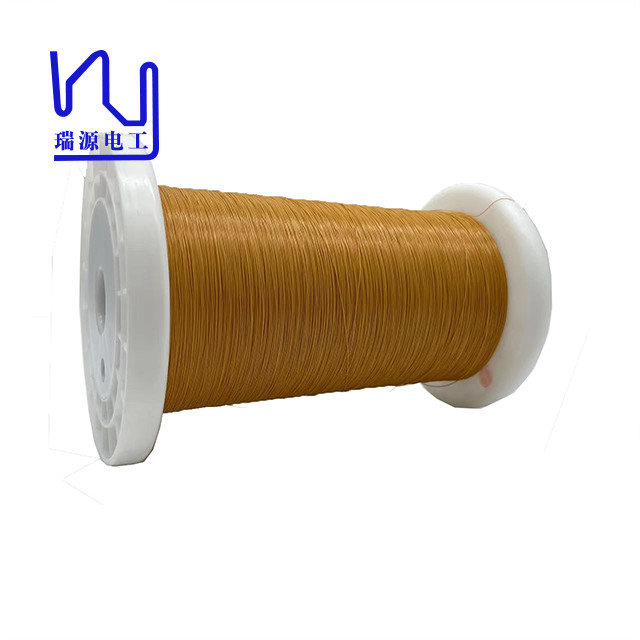

UL Certificated TIW 0.15mm Class B 130 Triple Insulated Wire

Color Options: Not only we provide yellow color, but blue, green, red pink, black etc. You can get any color you want here with low MOQ which is 51000meters.

Thermal class options: Class B/F/H that means class 130/155/180 are all available.

Here is the test report of 0.15mm yellow color TIW

Characteristics	Test Standard	Conclusion
Bare Wire Diameter	0.15±0.008MM	0.145-0.155
Overall Diameter	0.35±0.020MM	0.345-0.355
Conductor Resistance	879.3-1088.70Ω/KM	1043.99Ω/KM
Breakdown voltage	AC 6KV/60S no crack	OK
Elongation	MIN:15%	19.4-22.9%
Solder ability	420±10℃ 2-10Secs	OK
Adhesion	Pull and break at a constant speed, and the exposed copper of the wire should not exceed 3mm
Conclusion	Qualified

Product Name		UL Certificated TIW 0.15mm Class B 130 Triple Insulated Wire
Size		0.15mm
Insulation		Polyurethane
Thermal Rating		Class 130
Key word		UL Certificated TIW 0.15mm Class B 130 Triple Insulated Wire

Ul Certificated Triple Insulated Wire Tiw 0.15mm Class B 130 0

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.15mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week
