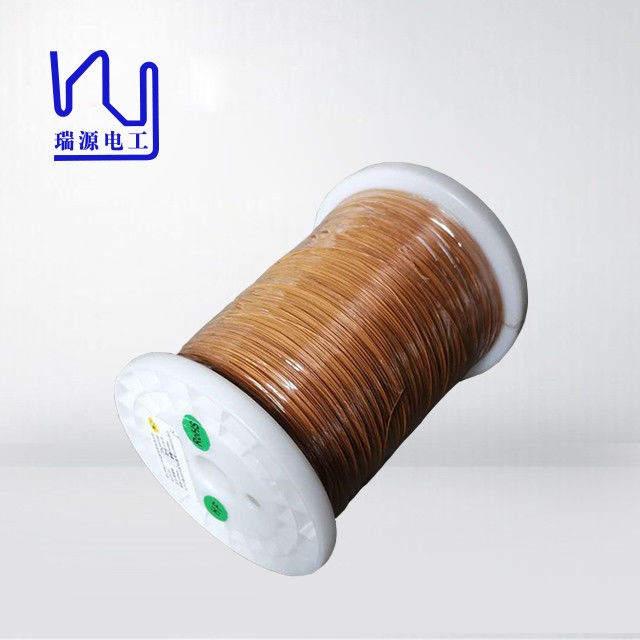

Name: Ul Certificated 0.16mm Triple Insulated Wire Solid 1000 Vrms
Brand: Ruiyuan
SKU: 0.2mm
Rating: 4.8 (196 reviews)

Ul Certificated 0.16mm Triple Insulated Wire Solid 1000 Vrms

Basic Information

Get Best Price Contact Now

Detail Information

Product Name:	Triple Insulated Layers Wire Insulated Copper Wire UL Certificated 0.16mm Solid 1000 Vrms	Thermal Rating:	130
Insulation Material:	UEW	Diameter:	0.20mm
Conductor Material:	Copper	Key Word:	Triple Insulated Layers Wire Insulated Copper Wire UL Certificated 0.16mm Solid 1000 Vrms
High Light:	0.16mm triple insulated wire , enamelled copper triple insulated wire , 0.16mm enamelled copper wire

Product Description

Triple Insulated Layers Wire Insulated Copper Wire UL Certificated 0.16mm Solid 1000 Vrms

Advantages

Rolled coil easily.
High voltage insulation, could save insulating tape, insulating interlayer.
Superior wear resistance for high speed automatic Transformer winding line.
Three layers of insulation protection, there is no pinhole phenomenon.
Self Solderable So No Striping Required.
Size Of The Transformer Can Be Cut down To 20-30% Due To No Requirement Of
Interlayer Tapes
Save copper due to less number of turns required after eliminating insulating tape &
interlayer.

Model		Traditional Transformer (No Use Triple insulated wire)	Smaller transformer (use TIW)
Output voltage		20W	20W
Volume	cm³	36	16
	%	100	53
Weight	g	70	45
	%	100	64

Product Name		Triple Insulated Layers Wire Insulated Copper Wire UL Certificated 0.16mm Solid 1000 Vrms
Size		0.2mm
Insulation		Polyurethane
Thermal Rating		Class 130
Sample		Avaible on your requests.
Key word		Triple Insulated Layers Wire Insulated Copper Wire UL Certificated 0.16mm Solid 1000 Vrms

Ul Certificated 0.16mm Triple Insulated Wire Solid 1000 Vrms

0.16mm triple insulated wire
