| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.2mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom Green Blue Yellow Pink Color TIW-B 0.4mm Triple Insulated Wire | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.20mm |
| Conductor Material: | Copper | Key Word: | Custom Green Blue Yellow Pink Color TIW-B 0.4mm Triple Insulated Wire |
| High Light: | windin super enamelled copper wire,tiw-b enamelled copper wire,0.2mm enameled wire |
||

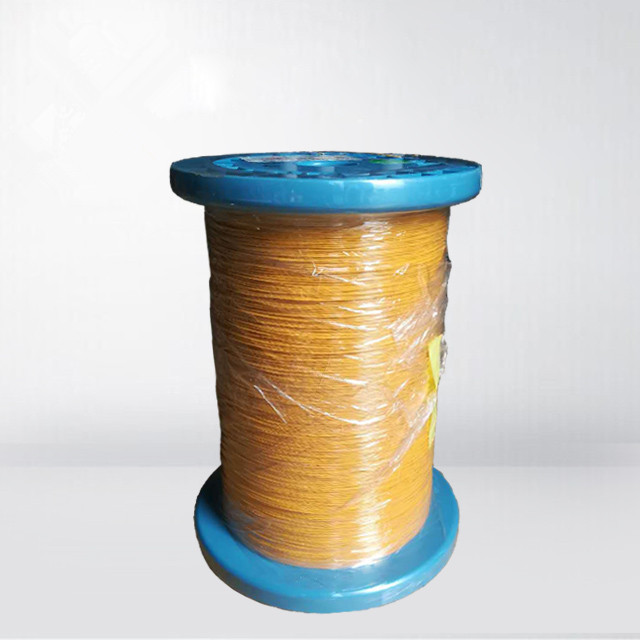

Custom Green Blue Yellow Pink Color TIW-B 0.4mm Triple Insulated Wire
The triple insulated wire is composed of three layers of insulation extruded and uniformly covered on the copper conductor, which meets the requirements of the UL specification and can be directly used in transformers, eliminating the need for materials such as interlayer insulation, retaining walls and bushings. Since there is no need to use an intermediate insulating tape, the transformer using three-layer wires can reduce its size, and can save overall material costs and processing costs. It is directly solderable and can be soldered directly without stripping the outer insulation first. It can also be made easy to peel for processing due to processing requirements.
| Model |
Traditional Transformer (No Use Triple insulated wire) |
Smaller transformer (use TIW) |
|
| Output voltage | 20W | 20W | |
| Volume | cm³ | 36 | 16 |
| % | 100 | 53 | |
| Weight | g | 70 | 45 |
| % | 100 | 64 | |
