| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.2mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Blue Color TIW Triple Insulated Copper Wire For High Voltage Transformer | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.20mm |
| Conductor Material: | Copper | Key Word: | Blue Color TIW Triple Insulated Copper Wire For High Voltage Transformer |
| High Light: | blue color triple insulated wire,size 0.2mm triple insulated wire,enamelled copper tiw wire |
||

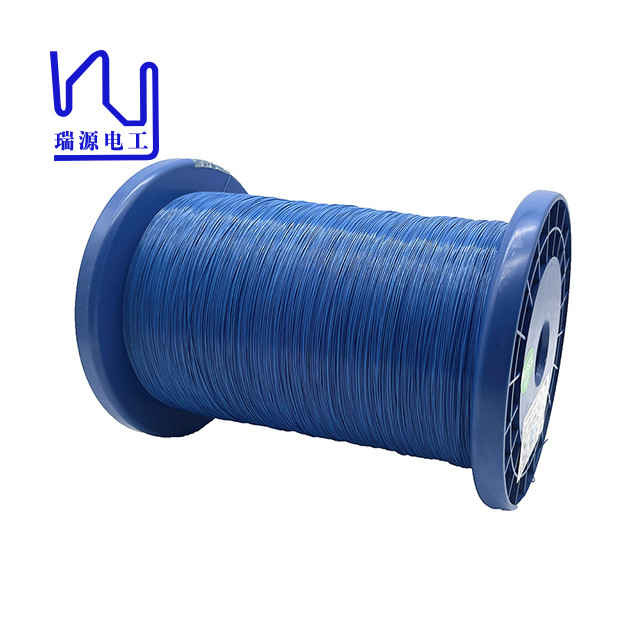

Blue Color TIW Triple Insulated Copper Wire For High Voltage Transformer
Reinforced insulation causes the TIW wires meet the technical requirements of UL1950, IEC60950, BSEN60950 on creepage distance. Thus, it is unnecessary to use the margins of insulation in transformers, which ensure the required insulation distance. Using TIW wires can also reduce the number of insulation layers between windings and avoid the use of sleevings.
All this leads to a significant reduction costs of the transformer, increase efficiency and miniaturization of the device. Depending on the design, the use of wire TIW may reduce the overall dimension of the transformer to 40%, and weight up to 60% compared to the transformers wound enameled wires.
