| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.2mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom Blue Grean Black Yellow High Voltage TIW Wire For Transformer | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.20mm |
| Conductor Material: | Copper | Key Word: | Custom Blue Grean Black Yellow High Voltage TIW Wire For Transformer |
| High Light: | custom triple insulated magnet wire,22 gauge triple insulated magnet wire,high voltage transformer using tiw wire |
||

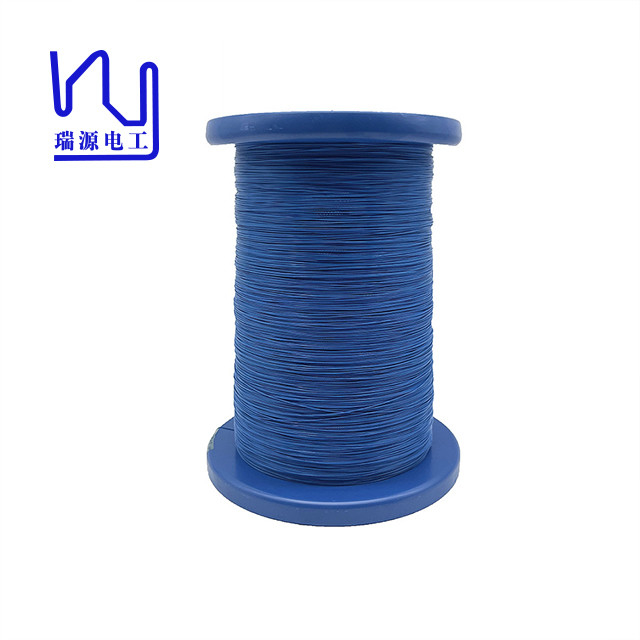

Custom Blue Grean Black Yellow High Voltage TIW Wire For Transformer
The main advantage of the TIW wires is relatively high electric strength of the insulation, with breakdown voltage min. 6kV. Obtaining such a high resistance was possible by the use of a reinforced, three-layer conductor insulation. Third external insulation made of polyamide gives excellent flexibility and high mechanical resistance of the wire. Normally, TIW wires are produced in thermal class B. Fully automated manufacturing process provides a central position of conductor and the same thickness of insulation at any point of the wire.
