| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.2mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom Blue Color UL Certificated TIW Triple Insulated Wire | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.20mm |
| Conductor Material: | Copper | Key Word: | Custom Blue Color UL Certificated TIW Triple Insulated Wire |
| High Light: | 22 gauge triple insulated wire transformer,enamel coated triple insulated wire transformer,enamel coated copper tiw wire |
||

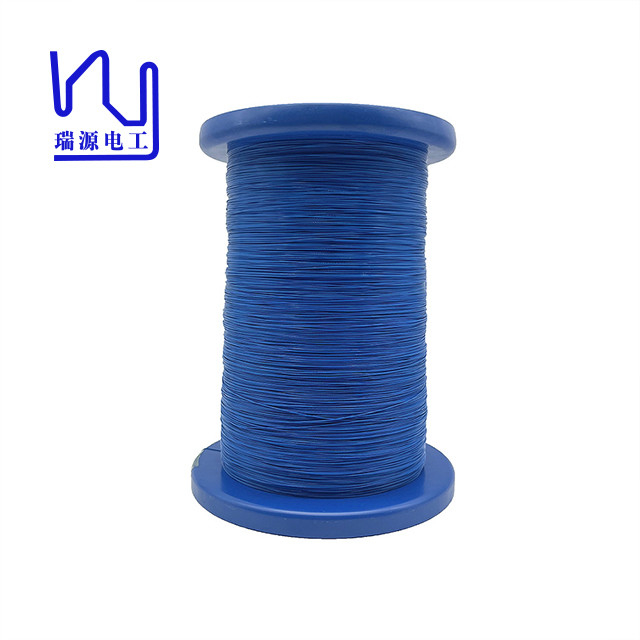

Custom Blue Color UL Certificated TIW Triple Insulated Wire
Their applications cover most switching transfromers, information and telecommunications equipment, game machines, consumer goods, inverters and other similar devices.
SMPS for units of printer, facsimile, menory, computer, monitor, inverter, game machine.
Battery charger for assembilies of digital camera, portable.
Perating frequencies: Typically 85 kHz to 200 kHz but level with a maximum of 500 kHz.
| Description | Designation | Thermal Grade(℃) | Diameter(mm) | Breakdown Voltage(KV) |
| Triple Insulated Copper Wire | Class B/F/H | 130/155/180 | 0.13mm-1.0mm | ≧17 |
| Tinned | 130/155/180 | 0.13mm-1.0mm | ≧17 | |
| Self Bonding | 130/155/180 | 0.13mm-1.0mm | ≧15 | |
| seven strand litz wire | 130/155/180 | 0.10*7mm-0.37*7mm | ≧15 |
