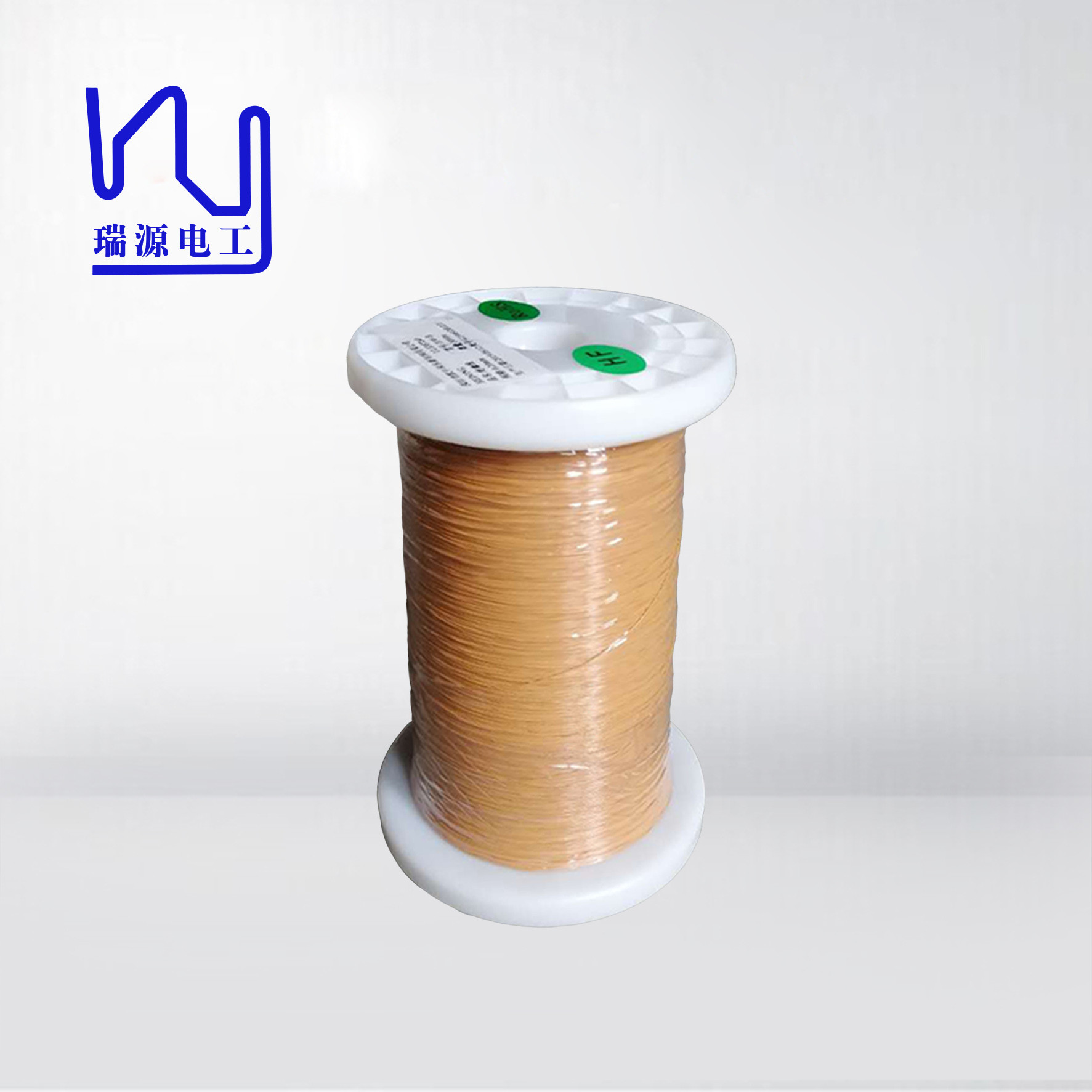

0. 40mm Triple Insulated Magnet Tiw Wire For Transformer

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.2mm
Minimum Order Quantity: 3000 meter
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: TIW-B 0.40mm Triple Insulated Magnet Wire For Transformer Thermal Rating: 130
Insulation Material: UEW Diameter: 0.20mm
Conductor Material: Copper Key Word: TIW-B 0.40mm Triple Insulated Magnet Wire For Transformer
High Light:

triple insulated copper wire 0.40 mm

,

tiw wire for transformer

,

tiw wire 0.40 mm


Product Description

TIW-B 0.40mm Triple Insulated Magnet Wire For Transformer

Main features and benefits:
Size range: 0.15-1.0mm
Operation voltage 1000Vms
Soldering temperature: 420-470 ℃
Breakdown voltage: Up to 17KV
Complies with UL-2353, VDE, IEC60950/61558 and CQC safety regulation
Conforms EU RoHS 2.0, HF and REACH environment requirement

And also we helped many customer to develop some special wires, we really want to help you to realize your design. Welcome to tell us your creative idea.

Description Designation Thermal Grade(℃) Diameter(mm) Breakdown Voltage(KV)
Triple Insulated Copper Wire Class B/F/H 130/155/180 0.13mm-1.0mm ≧17
Tinned 130/155/180 0.13mm-1.0mm ≧17
Self Bonding 130/155/180 0.13mm-1.0mm ≧15
seven strand litz wire 130/155/180 0.10*7mm-0.37*7mm ≧15



Product Name
Rvyuan Hot Sale 0.3mm Magnet Copper Triple Insulated Wire for Transformer
Size
0.2mm
Insulation
Polyurethane
Thermal Rating
Class 130
Sample
Avaible on your requests.


0. 40mm Triple Insulated Magnet Tiw Wire For Transformer 0
0. 40mm Triple Insulated Magnet Tiw Wire For Transformer 1
0. 40mm Triple Insulated Magnet Tiw Wire For Transformer 2
0. 40mm Triple Insulated Magnet Tiw Wire For Transformer 3
0. 40mm Triple Insulated Magnet Tiw Wire For Transformer 40. 40mm Triple Insulated Magnet Tiw Wire For Transformer 5
