| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.2mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Class B / F Triple Insulated Wire 0.40mm TIW Solid Copper Winding Wire | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.20mm |
| Conductor Material: | Copper | Key Word: | Class B / F Triple Insulated Wire 0.40mm TIW Solid Copper Winding Wire |
| High Light: | solid triple insulated wire,class f triple insulated wire,class b tiw wire |
||

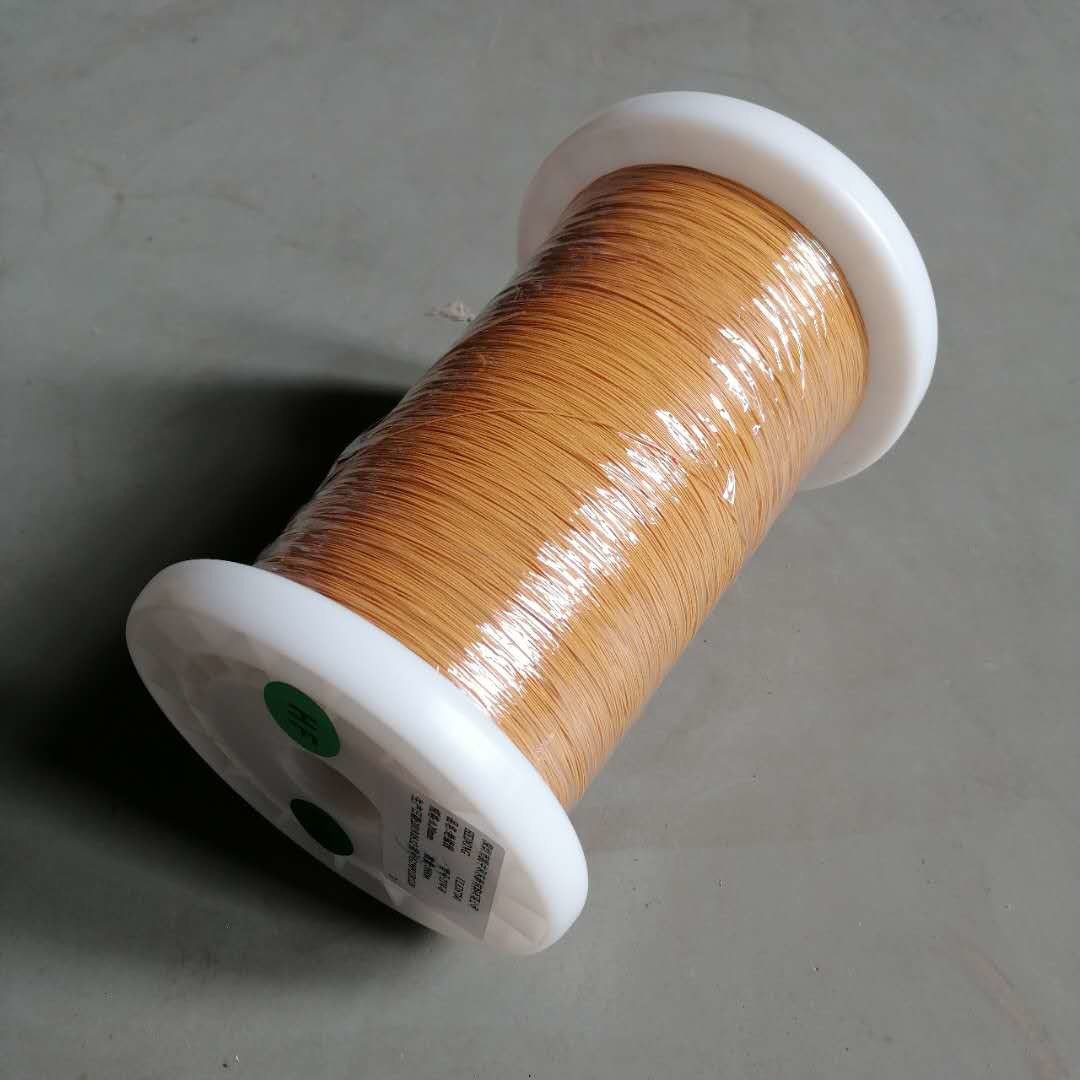

Class B / F Triple Insulated Wire 0.40mm TIW Solid Copper Winding Wire
Here are features and benefits of 7stands triple insulated litz wire
Wider thermal class range: From 130-180℃
Size range: 0.10x7-0.30x7
operation voltage 1000Vms
Soldering temperature: 420-470 ℃
Breakdown voltage: Up to 17KV
Solvent resistance: Great performance of chemical solvent and insulating paint resistance
Complies with UL-2353, VDE, IEC60950/61558 and CQC safety regulation
Conforms EU RoHS 2.0, HF and REACH environment requirement
| Description | Designation | Thermal Grade(℃) | Diameter(mm) | Breakdown Voltage(KV) |
| Triple Insulated Copper Wire | Class B/F/H | 130/155/180 | 0.13mm-1.0mm | ≧17 |
| Tinned | 130/155/180 | 0.13mm-1.0mm | ≧17 | |
| Self Bonding | 130/155/180 | 0.13mm-1.0mm | ≧15 | |
| seven strand litz wire | 130/155/180 | 0.10*7mm-0.37*7mm | ≧15 |
