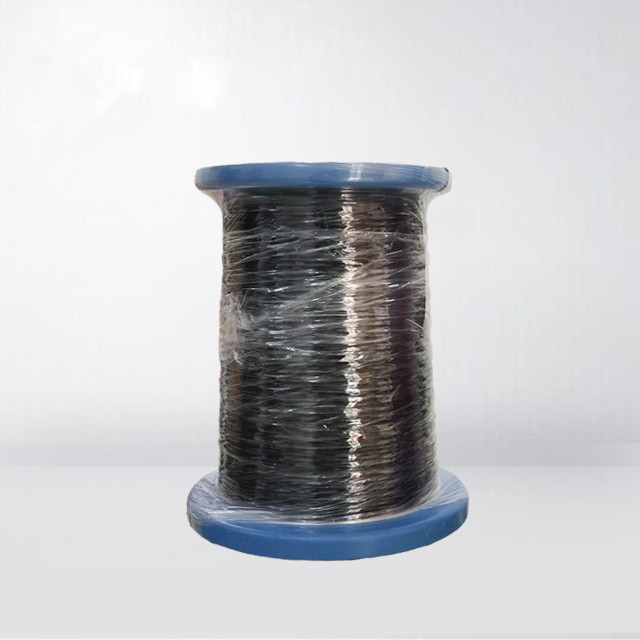

Name: Ul System Triple Insulated Wire 0.1mm - 1.0mm Tiw Class B
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.2mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	UL System Triple Insulated Wire 01mm - 1.0mm TIW Class B	Thermal Rating:	130
Insulation Material:	UEW	Diameter:	0.20mm
Conductor Material:	Copper	Key Word:	UL System Triple Insulated Wire 01mm - 1.0mm TIW Class B
Highlight:	ul system triple insulated wire , triple insulated wire 0.1mm , tiw wire 1.0mm

Product Description

UL system triple insulated wire 01mm - 1.0mm TIW class B

1.Low MOQ: 1500-3000meters with different single size
2.Wide size range: 0.13-1.00mm class B and class F available
3.Multiple colors options: Besides yellow, red, blue, green, pink are all available but with higher MOQ
4.7 strands of TIW is also available

Model		Traditional Transformer (No Use Triple insulated wire)	Smaller transformer (use TIW)
Output voltage		20W	20W
Volume	cm³	36	16
	%	100	53
Weight	g	70	45
	%	100	64

Description	Designation	Thermal Grade(℃)	Diameter(mm)	Breakdown Voltage(KV)
Triple Insulated Copper Wire	Class B/F/H	130/155/180	0.13mm-1.0mm	≧17
	Tinned	130/155/180	0.13mm-1.0mm	≧17
	Self Bonding	130/155/180	0.13mm-1.0mm	≧15
	seven strand litz wire	130/155/180	0.107mm-0.377mm	≧15

Product Name		UL System Certified 0.20mmTIW Wire Class B Triple Insulated Copper Wire
Size		0.2mm
Insulation		Polyurethane
Thermal Rating		Class 130
Sample		Avaible on your requests.

Ul System Triple Insulated Wire 0.1mm - 1.0mm Tiw Class B 0

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.2mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week
