| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.2mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.3mm Magnet Copper Triple Insulated Wire For Transformer | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.20mm |
| Conductor Material: | Copper | Key Word: | 0.3mm Magnet Copper Triple Insulated Wire For Transformer |
| High Light: | 0.3mm triple insulated wire,uew triple insulated wire,0.3mm triple insulated magnet wire |
||

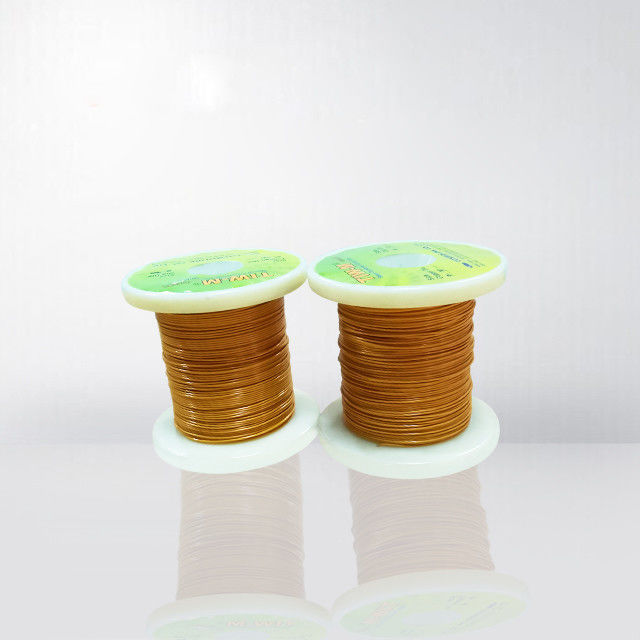

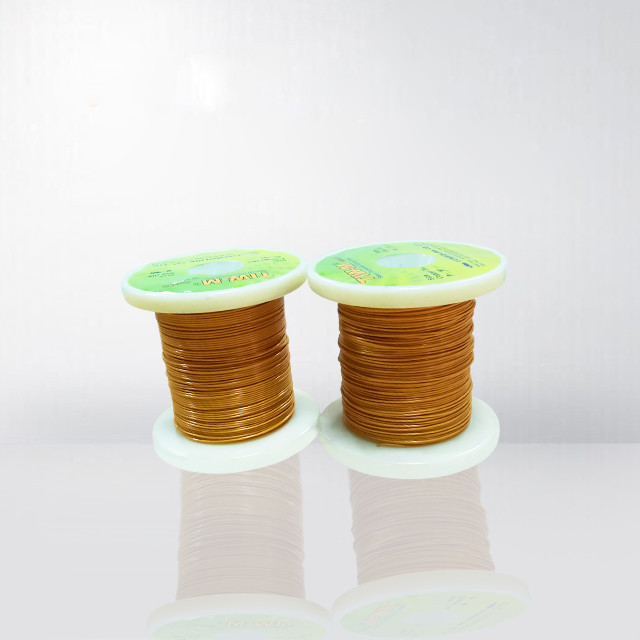

Rvyuan Hot Sale 0.3mm Magnet Copper Triple Insulated Wire for Transformer
1. Production standard range:0.1-1.0mm
2. Withstand voltage class, class B 130℃, class F 155℃.
3.Excellent withstand voltage characteristics, breakdown voltage greater than 15KV, obtained reinforced insulation.
4.No need to peel off the outer layer can be direct welding, solder ability 420℃-450℃≤3s.
5.Special abrasive resistance and surface smoothness, staticfriction coefficient ≤0.155, the product can meet the automatic winding machine high-speed winding.
6.Resistant chemical solvents and impregnated paint performance, Rating voltage Rated voltage(working voltage)1000VRMS, UL.
7. High strength insulation layer toughness, repeated bending strethc, the insulation layers will not crack damage.
| Model |
Traditional Transformer (No Use Triple insulated wire) |
Smaller transformer (use TIW) |
|
| Output voltage | 20W | 20W | |
| Volume | cm³ | 36 | 16 |
| % | 100 | 53 | |
| Weight | g | 70 | 45 |
| % | 100 | 64 | |
