| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.4mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | TIW-B Electronic Transformer Using Thin Triple Insulated Layer Wire | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.40mm |
| Conductor Material: | Copper | Key Word: | TIW-B Electronic Transformer Using Thin Triple Insulated Layer Wire |
| High Light: | electronic transformer triple insulated wire,26 awg triple insulated wire,electronic transformer tiw wire |
||

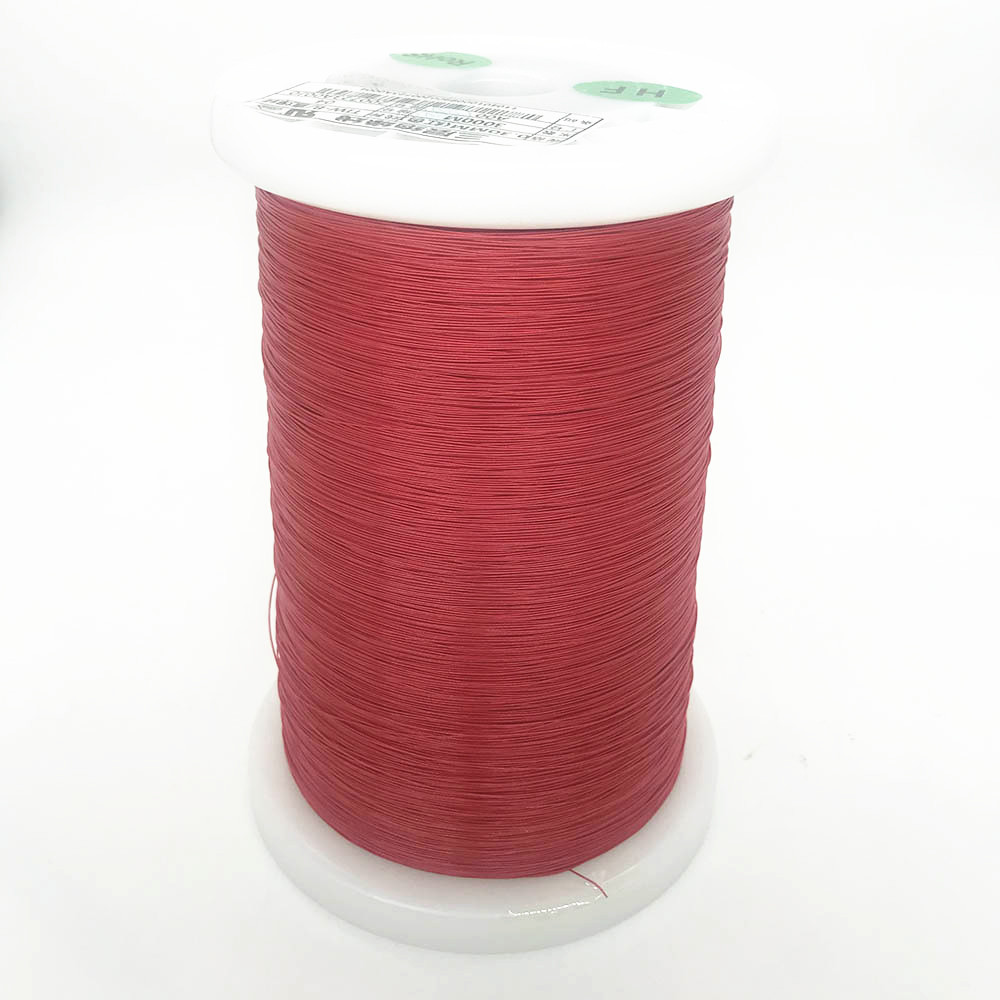

TIW-B Electronic Transformer using thin Triple Insulated layer Wire
The advantage of TIW:
1. High breakdown voltage. Up to 17KV
2. UL system certificated. Unlike UL certificate, UL system certificate is much more strict, that needs 5000 continuous hours test, if the wire failed below 5000hours, the experiment need to start again. Very a few manufacture can pass such strict test.
3. Very competitive price with top quality. We can compare quality with any other brand.
4. Conforms EU RoHS 2.0, HF AND REACH environment requirements
5. Complies with UL-2353, VDE IEC60950/61558 and CQC safety requirements
6. Stock for all sizes are available.
7. Low MOQ: 1500-3000meters with different single size
8. Wide size range: 0.13-1.00mm class B and class F available
|
Description |
Designation |
Thermal Grade(℃) |
Diameter (mm) |
Breakdown Voltage(KV) |
Solderability (Y/N) |
|
Triple Insulated Copper Wire
|
Class B/F/H |
130/155/180 |
0.13mm-1.0mm |
≧17 |
Y |
|
Tinned |
130/155/180 |
0.13mm-1.0mm |
≧17 |
Y |
|
|
Self Bonding |
130/155/180 |
0.13mm-1.0mm |
≧15 |
Y |
|
|
seven strand litz wire |
130/155/180 |
0.10*7mm- 0.37*7mm |
≧15 |
Y |
