| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.4mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Ultra Fine Red Color Triple Insulated Magnet Wire TIW For Industrial | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.40mm |
| Conductor Material: | Copper | Key Word: | Ultra Fine Red Color Triple Insulated Magnet Wire TIW For Industrial |
| High Light: | ultra fine triple insulated magnet wire,red color triple insulated magnet wire,industrial triple insulated wire |
||

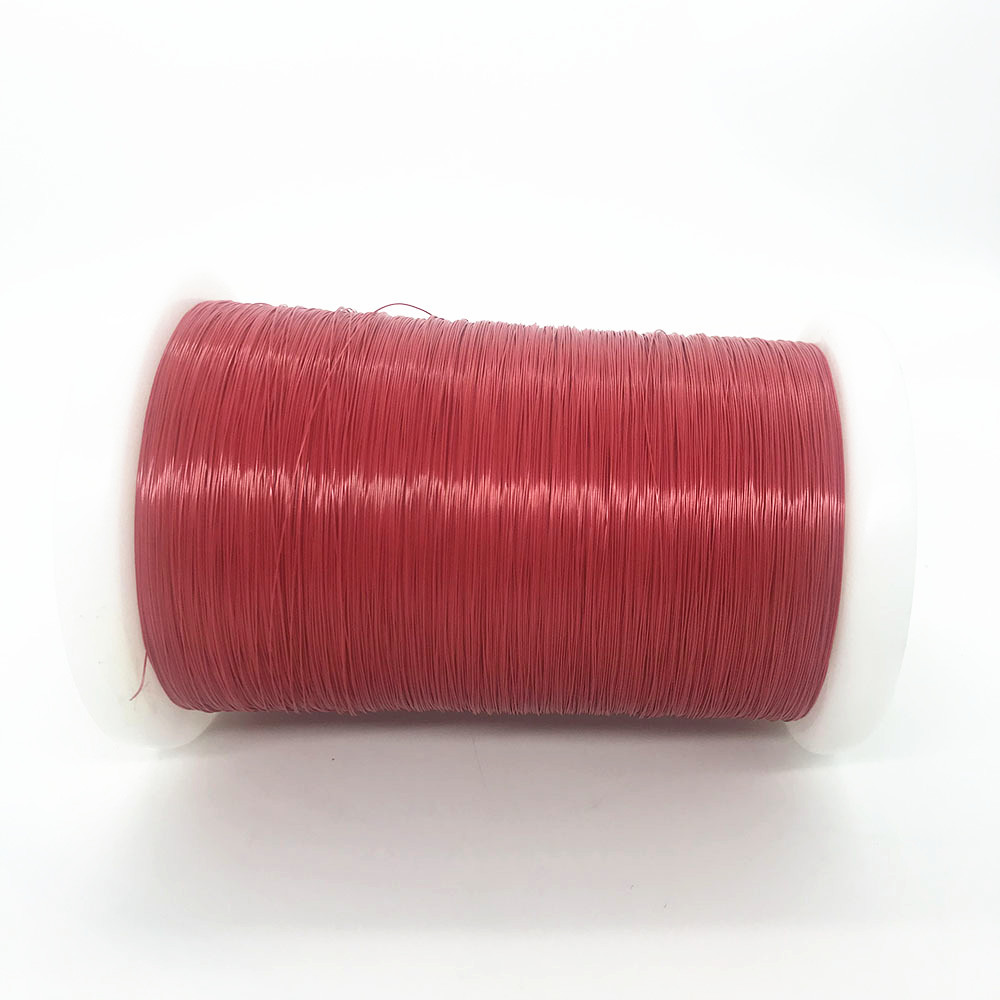

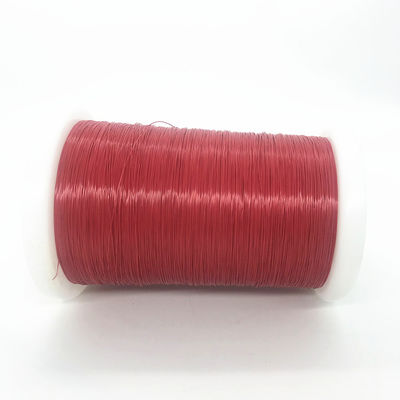

Ultra Fine Red Color Triple Insulated Magnet Wire TIW For Industrial
Triple insulated wire or three layers insulated wire is a kind of winding wire but with three extruded insulation layers in safety standards around the circumference of the conductor.
Triple insulated wire(TIW) are used in switched mode power supplies and realize miniaturization and cost reductions as no insulation tape or barrier tape is required between the primary and secondary windings of the transformers. Multiple thermal class options: class B(130), Class F(155), Class H(180) satisfy most applications.
|
Description |
Designation |
Thermal Grade(℃) |
Diameter (mm) |
Breakdown Voltage(KV) |
Solderability (Y/N) |
|
Triple Insulated Copper Wire
|
Class B/F/H |
130/155/180 |
0.13mm-1.0mm |
≧17 |
Y |
|
Tinned |
130/155/180 |
0.13mm-1.0mm |
≧17 |
Y |
|
|
Self Bonding |
130/155/180 |
0.13mm-1.0mm |
≧15 |
Y |
|
|
seven strand litz wire |
130/155/180 |
0.10*7mm- 0.37*7mm |
≧15 |
Y |
