products

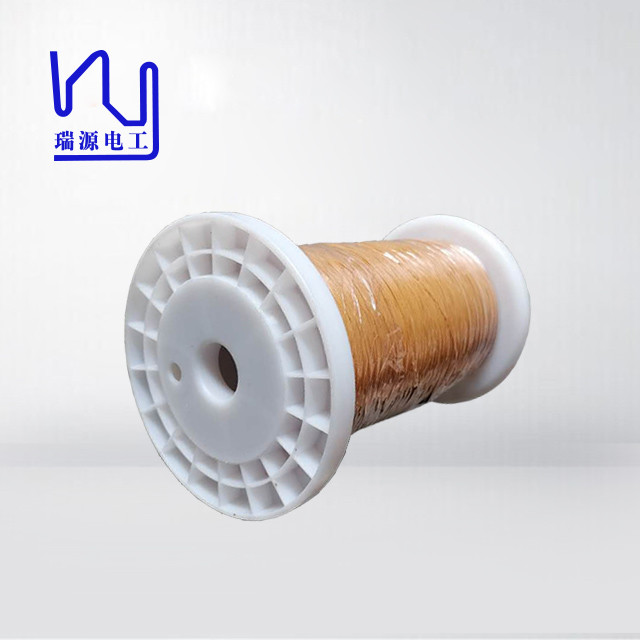

0.1mm 0.2mm 0.3mm Triple Insulated Copper Wire Tiw Yellow Color Ultra Fine

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.4mm
Minimum Order Quantity: 3000 meter
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 0.1mm 0.2mm 0.3mm TIW Yellow Color Triple Layer Insulated Copper Wire Thermal Rating: 130
Insulation Material: UEW Diameter: 0.40mm
Conductor Material: Copper Key Word: 0.1mm 0.2mm 0.3mm TIW Yellow Color Triple Layer Insulated Copper Wire
High Light:

0.1mm triple insulated copper wire

,

ultra fine triple insulated copper wire

,

0.3mm triple insulated wire


Product Description

0.1mm 0.2mm 0.3mm TIW Yellow Color Triple Layer Insulated Copper Wire



TIW-B/F/H, thermal class from 130-180 with such features

  • Solderability: TIW CLASS B and F can be soldered directly, class H need to peal off
  • Size range: 0.13-1.0mm
  • operation voltage 1000Vms
  • Soldering temperature: 420-470 ℃
  • Breakdown voltage: Up to 17KV
  • Solvent resistance: Great performance of chemical solvent and insulating paint resistance
  • Fast Winding capacity
  • Complies with UL-2353, VDE, IEC60950/61558 and CQC safety regulation
  • Conforms EU RoHS 2.0, HF and REACH environment requirement.



Model

Traditional Transformer

(No Use Triple insulated wire)

Smaller transformer

(use TIW)

Output voltage

20W

20W

Volume

cm³

36

16



%

100

53

Weight

g

70

45



%

100

64



Product Name
UL System Certified 0.20mmTIW Wire Class B Triple Insulated Copper Wire
Size
0.4mm
Insulation
Polyurethane
Thermal Rating
Class 130
Sample
Avaible on your requests.
