| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.4mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Class 130 155 180 Yellow TIW Triple Insulated Winding Wire | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.40mm |
| Conductor Material: | Copper | Key Word: | Class 130 155 180 Yellow TIW Triple Insulated Winding Wire |
| High Light: | class 130 triple insulated wire,yellow triple insulated winding wire,class 155 triple insulated winding wire |
||

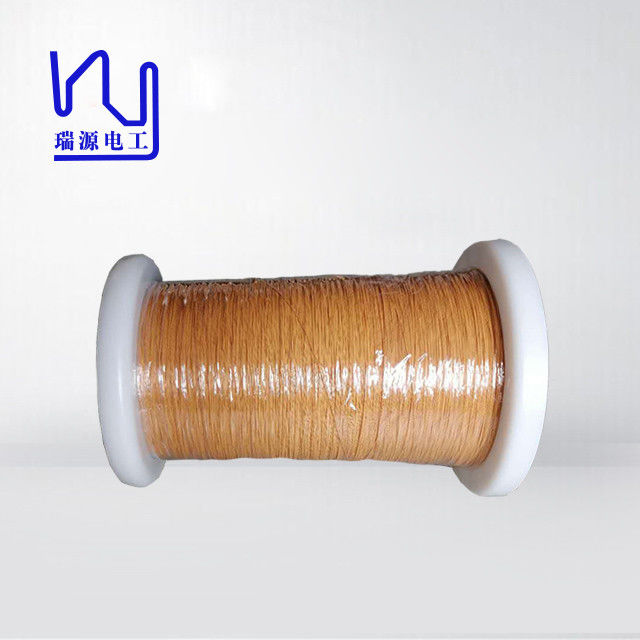

Class 130 155 180 Yellow TIW Triple insulated winding wire
Triple insulated wire or reinforced insulated wire that is made up of three layers, comletely insolates the primary from secondary of the transformer. Reinforced insulation provide various safety standards that eliminates barriers, inter layers tapes and insulating tubes in a transformer.
The most advantage of the triple insulated wire is not only higher breakdown voltage that is up to 17KV, but In addition to reduction in size and economy in material costs of the transformer manufacture.
|
Model |
Traditional Transformer (No Use Triple insulated wire) |
Smaller transformer (use TIW) |
|
|
Output voltage |
20W |
20W |
|
|
Volume |
cm³ |
36 |
16 |
|
|
% |
100 |
53 |
|
Weight |
g |
70 |
45 |
|
|
% |
100 |
64 |
