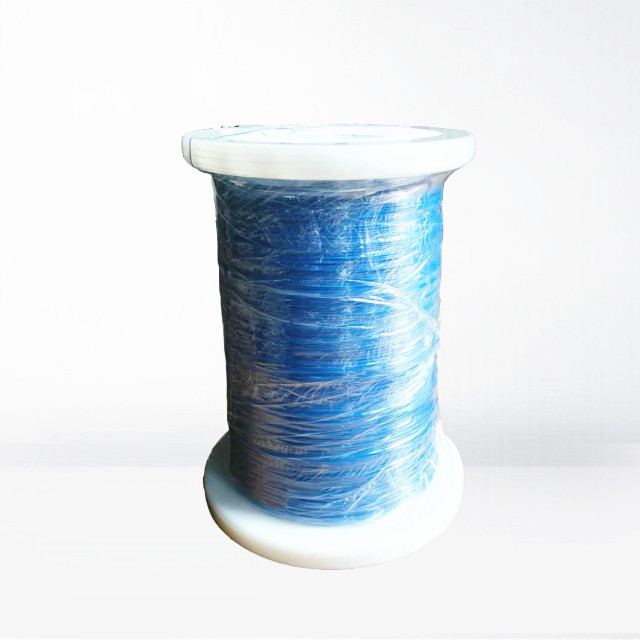

0.40mm Tiw Solid Insulated Copper Winding Wire Class B F

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.4mm
Minimum Order Quantity: 3000 meter
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Class B F Triple Insulated Wire 0.40mm TIW Solid Copper Winding Wire Thermal Rating: 130
Insulation Material: UEW Diameter: 0.40mm
Conductor Material: Copper Key Word: Class B F Triple Insulated Wire 0.40mm TIW Solid Copper Winding Wire
High Light:

class b insulated copper winding wire

,

solid insulated copper winding wire

,

class f triple insulated copper wire


Product Description

Class B F Triple Insulated Wire 0.40mm TIW Solid Copper Winding Wire





Features and benefits on transformer manufacture

1. No need inter lamination tape and fence. That reduce the size of transformer

2. The insulating coating can be soldered directly that improve process efficiency

3. The insulation of is strong enough to withstand high-speed winding on the automatic wire winder to reduce production costs. The recommended soldered temperature range 420℃-450℃ ≤3seconds

4. Heat resistance range from class B(130) to class H(180)



Different color options: Yellow, Blue, Pink Red, Green and customized color.

Model

Traditional Transformer

(No Use Triple insulated wire)

Smaller transformer

(use TIW)

Output voltage

20W

20W

Volume

cm³

36

16



%

100

53

Weight

g

70

45



%

100

64



Product Name
UL System Certified 0.20mmTIW Wire Class B Triple Insulated Copper Wire
Size
0.4mm
Insulation
Polyurethane
Thermal Rating
Class 130
Sample
Avaible on your requests.



0.40mm Tiw Solid Insulated Copper Winding Wire Class B  F 0

0.40mm Tiw Solid Insulated Copper Winding Wire Class B  F 1

0.40mm Tiw Solid Insulated Copper Winding Wire Class B  F 2

0.40mm Tiw Solid Insulated Copper Winding Wire Class B  F 3

0.40mm Tiw Solid Insulated Copper Winding Wire Class B  F 40.40mm Tiw Solid Insulated Copper Winding Wire Class B  F 5
