Tiw B 0.1mm Triple Insulated Copper Wire Etfe Class B 130 Solid

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.1mm
Minimum Order Quantity: 3000 meter
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: TIW-B 0.1mm ETFE Class B 130 Solid Triple Insulated Wire Thermal Rating: 130
Insulation Material: UEW Diameter: 0.10mm
Conductor Material: Copper Key Word: TIW-B 0.1mm ETFE Class B 130 Solid Triple Insulated Wire
High Light:

0.1 triple insulated copper wire

,

solid triple insulated copper wire

,

solid triple insulated wire


Product Description

TIW-B 0.1mm ETFE Class B 130 Solid Triple Insulated Wire



Their applications cover most switching transformers, information and telecommunications equipment, game machines, consumer goods, inverters and other similar devices.


*SMPS for units of printer, facsimile, memory, computer, monitor, inverter, game machine.


*Battery Charger for assemblies of digital camera, portable telephone, 8 mm VCR, AC adapter, personal computer, DVD.


*Operating Frequencies: Typically 85 kHz to 200 kHz but level with a maximum of 500 kHz



Characteristics
Test Standard
Conclusion
Bare Wire Diameter
0.40±0.01MM
0.399
Overall Diameter
0.60±0.020MM
0.599
Conductor Resistance
MAX: 145.3Ω/KM
136.46Ω/KM
Breakdown voltage
AC 6KV/60S no crack
OK
Elongation
MIN:20%
33.4
Solder ability
420±10℃ 2-10Secs
OK
Conclusion
Qualified




Product Name

TIW-B 0.1mm ETFE Class B 130 Solid Triple Insulated Wire

Size

0.10mm

Insulation

Polyurethane

Thermal Rating

Class 130

Sample

Avaible on your requests.

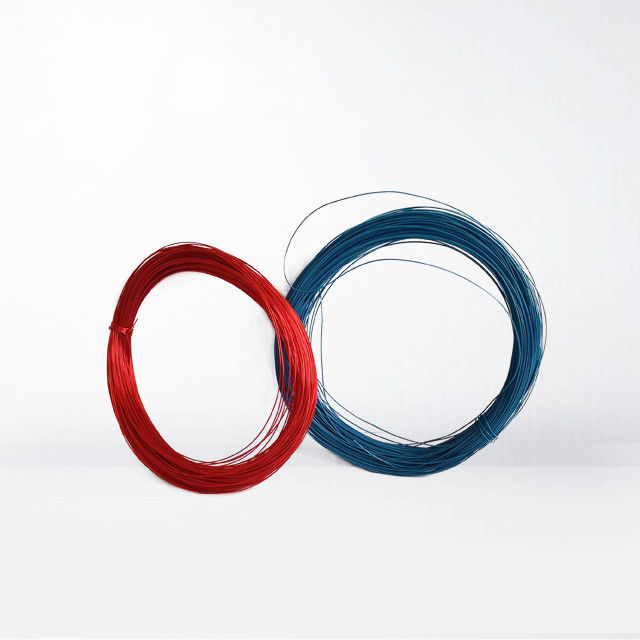

Tiw B 0.1mm Triple Insulated Copper Wire Etfe Class B 130 Solid 0

Tiw B 0.1mm Triple Insulated Copper Wire Etfe Class B 130 Solid 1

Tiw B 0.1mm Triple Insulated Copper Wire Etfe Class B 130 Solid 2

Tiw B 0.1mm Triple Insulated Copper Wire Etfe Class B 130 Solid 3

Tiw B 0.1mm Triple Insulated Copper Wire Etfe Class B 130 Solid 4Tiw B 0.1mm Triple Insulated Copper Wire Etfe Class B 130 Solid 5
