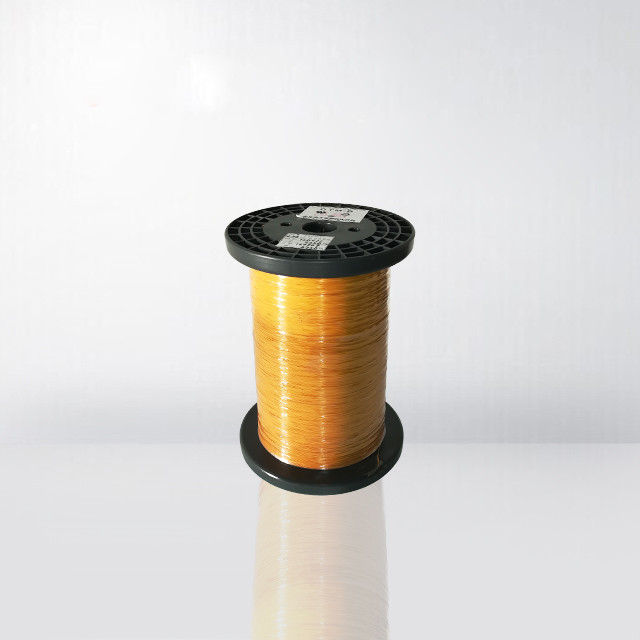

Name: 0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.3mm
Price: 24.06 USD
Availability: InStock

Detail Information

Product Name:	Triple Insulated Copper Wire TIW -B 0.3mm Enameled For Transformer IEC/JIS/NEMA	Thermal Rating:	130
Insulation Material:	UEW	Diameter:	0.30mm
Conductor Material:	Copper	Key Word:	Triple Insulated Copper Wire TIW -B 0.3mm Enameled For Transformer IEC/JIS/NEMA
Highlight:	0.3mm triple insulated wire , enameled triple insulated wire , 0.3mm triple insulated copper wire

Product Description

Triple Insulated Wire TIW -B 0.3mm Copper Motor Winding Enameled for Transformer IEC/JIS/NEMA

-Special abrasive resistance and surface smoothness, staticfriction coefficient ≤0.155, the product can meet the automatic winding machine high-speed winding.

-Resistant chemical solvents and impregnated paint performance, Rating voltage Rated voltage(working voltage)1000VRMS, UL.

-High strength insulation layer toughness, repeated bending strethc, the insulation layers will not crack damage.

haracteristics	Test Standard	Conclusion
Package	Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton's seal is complete	OK
Bare Wire Diameter	0.30±0.01MM	0.295-0.301
Overall Diameter	0.50±0.020MM	0.493-0.501
Conductor Resistance	MAX: 261.0Ω/KM	255.6Ω/KM
Breakdown voltage of straight wire	The length of wire 305mm,wind on the copper bar, test condition 1mA/60s5.0KV	OK
Breakdown voltage of bending wire	The length of wire 305mm , Test condition:1mA/60S/4.5KV	OK
Breakdown voltage of twist wire	The length of wire 125mm , Test condition: 50HZ/1mA/60S/AC10KV	OK
Elongation	MIN:20%	23.8-26.9%
Solder ability	420 4-5 Secs	OK

Product Name		Triple Insulated Copper Wire TIW -B 0.3mm Enameled for Transformer IEC/JIS/NEMA
Size		0.3mm
Insulation		Polyurethane
Thermal Rating		Class 130
Sample		Avaible on your requests.

0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA 0

0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA 1

0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA 2

0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA 3

0.3mm Enameled Transformer Triple Insulated Wire IEC / JIS / NEMA 4

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.3mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week
