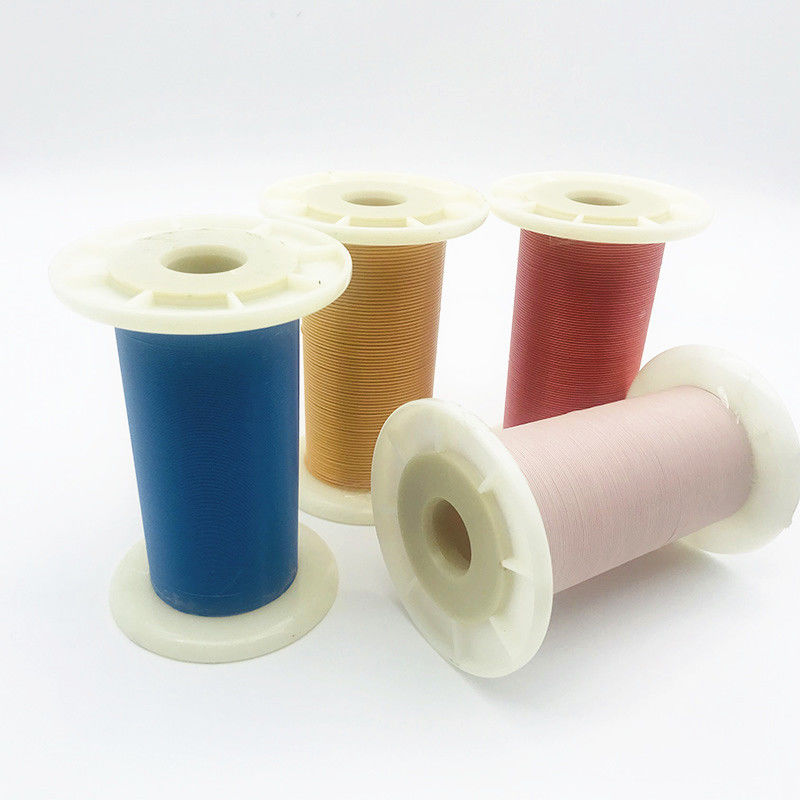

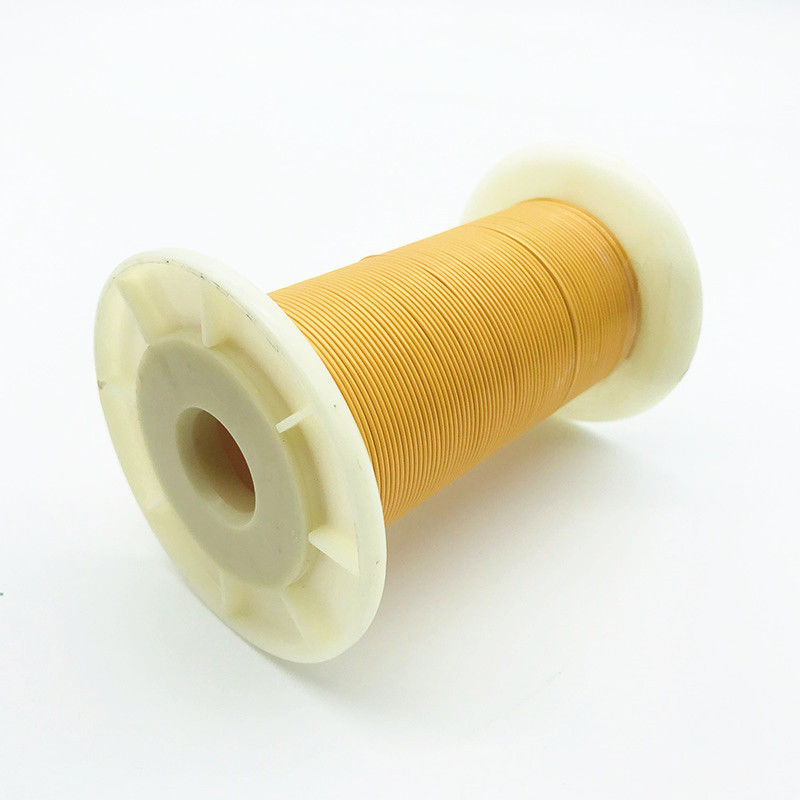

IEC TIW - B 0.18mm Triple Insulated Magnet Wire For Motor Winding

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.18mm
Minimum Order Quantity: 3000meters
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Triple Insulated Wire Size: 0.18mm
Color: Red/Pink/Blue/Yellow Conductor: Copper
MOQ: 3000 Meters Size Range: 0.1-1.0mm
High Light:

0.18mm Triple Insulated Magnet Wire

,

IEC Triple Insulated Magnet Wire

,

ultra fine winding magnet wire


Product Description

TIW - B 0.18mm Magnet Wire For Motor Winding Triple Insulated Wire



We have 19 high-speed production lines with a monthly production capacity of 150 million meters, the largest production scale in China; we have our own insulation material formula and intellectual property rights; our triple insulated wire have passed UL, German VDE and China CQ C authority Certified, and obtained UL insulation system; we have a core competitive engineering and technical team, and continue to provide customers with quality products and services.

Features:

The feature of triple inslated wire is in its insulation layers. IEC standards require specified insulation between primary and secondary coils of transformers. And the standards do not accept general enameled wire as insulation therefore insulation tape or barrier tape are required in transformers using enameled wire. Triple insulated wire however, has triple insulation layers which comply IEC requirement and therefore can be used without barrier tape or interlayer tape between primary and secondary coils.



IEC TIW - B 0.18mm Triple Insulated Magnet Wire For Motor Winding 0



Conductor m/m
End product m/m
Maximum Conductor Resistance at 20 ℃
Elongation
Pin Hole
Electrical Resistance

Diameter m/m
Target outside diameter

≥%
≤Default/5m
Ω/km (20℃)






Min.
Max.

              0.2

0.4
607.6
5.00
8.00
66.60
85.75
0.21
0.41
549
5.00
8.00
59.77
75.95
0.22
0.42
498.4
5.00
8.00
53.95
67.75
0.23
0.43
454.5
8.00
8.00
51.83
60.81
0.24
0.44
416.2
12.00
5.00
7981.00
9528.00
0.25
0.45
382.5
12.00
5.00
6642.00
7815.00
0.26
0.46
358.4
14.00
5.00
5614.00
6526.00
0.27
0.47
331.4
16.00
5.00
2851.00
3187.00
0.28
0.48
307.3
16.00
5.00
2550.00
2835.00
0.29
0.49
285.7
17.00
5.00
2294.00
2538.00
0.3
0.5
262.9
17.00
5.00
2074.00
2286.00
0.32
0.52
230
17.00
5.00
1720.00
1882.00
0.35
0.55
191.2
17.00
5.00
1450.00
1577.00
0.37
0.57
170.6
18.00
5.00
1239.00
1340.00
0.4
0.6
145.3
19.00
5.00
1070.00
1153.00
0.45
0.65
114.2
20.00
5.00
934.10
1002.00
0.5
0.7
91.4
21.00
5.00
822.30
879.40
0.55
0.75
78.2
22.00
5.00
721.10
787.10
0.6
0.8
65.3
22.00
5.00
644.40
700.70
0.65
0.85
88.3
23.00
5.00
579.40
627.80
0.7
0.9
47.2
23.00
5.00
523.70
565.70
0.75
0.95
41.2
23.00
5.00
475.70
512.30
0.8
1
36.1
23.00
5.00
434.00
466.20
0.85
1.05
31.9
24.00
5.00
397.50
426.00
0.9
1.1
28.4
24.00
5.00
365.50
390.80
0.95
1.15
25.4
24.00
5.00
337.10
359.80
1
1.2
23.3
25.00
5.00
309.60
335.00
