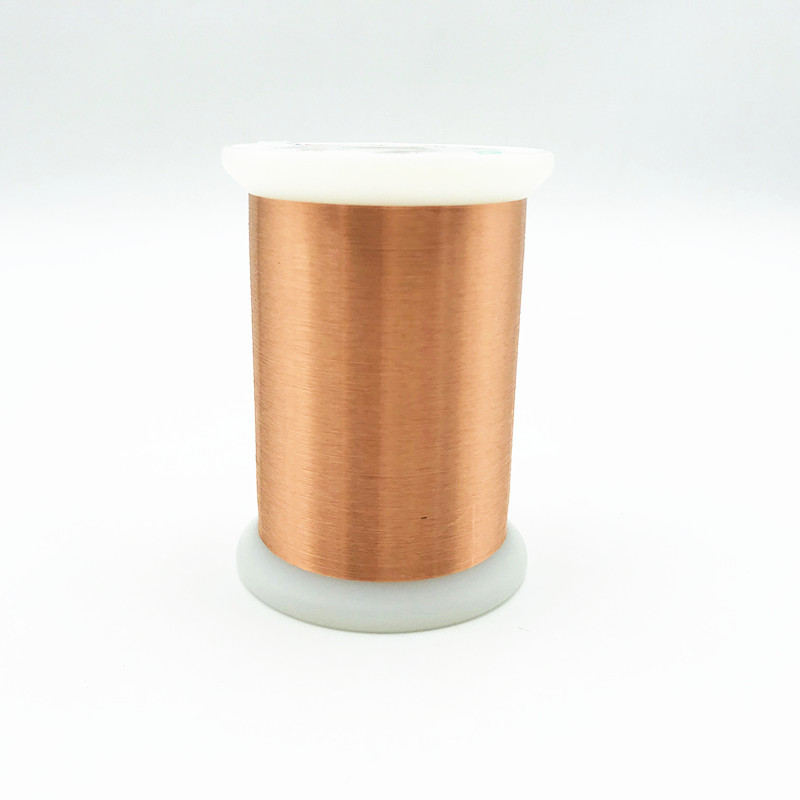

2UEW 3UEW F/H Super Enameled Copper Winding Wire Solerable 0.032mm

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.032mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Enameled Copper Wire Diameter: 0.032mm
Insulation: UEW Thermal Class: 155/180/220
Type: Solid Port: Tianjin
High Light:

2UEW Super Enameled Copper Winding Wire

,

Solerable Super Enameled Copper Winding Wire

,

0.032mm Insulated Copper Winding Wire


Product Description

2UEW3UEWF/H Solerable 0.032mm Enamelled Copper Wire For Winding



We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production,technology, raw materials. We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage.



Advantages Of Enameled Copper Wire

a) High resistance to heat shock.

b) High temperature.

c) Good performance in cut-through.

d) Suitable for high-speed automated routing.

e) Able to be direct weld, with no pinhole.

f) Resistive to high frequency, wearing, refrigerants and electronics corona.

g) High breakdown voltage, small dielectric loss angle.

h) Environment-friendly.



Specification



Characteristics
Technical requests
Test Results
Conclusion
Sample 1
Sample 2
Surface
Good

OK
OK
OK
Bare Wire Diameter
0.032±
0.001
0.032
0.032
OK
0.001
Coating Thickness
≥ 0.005 mm
0.009
0.008
OK
Overall Diameter
≤ 0.042 mm
0.041
0.04
OK
Conductor Resistance
≤ 22.843 Ω/m
22.032
22.076
OK
Elongation
≥ 10 %
14
15
OK
Breakdown Voltage
≥ 275 V
1456
1312
OK
Pinhole Test
≤ 5 faults/5m
0
0
OK
Continuity
----
----
----
----
Test Items
Technical Requests
Resulat


Adhesive
Coating layer is good
OK


Cut-through
230℃ 2min no breakdown
OK


Heat Shock
200± 5℃/30min no crack
OK


Solder Ability
390± 5℃ 2Sec Smooth
OK


Solvent Resistance
No blister, no expansion, no shed
OK
